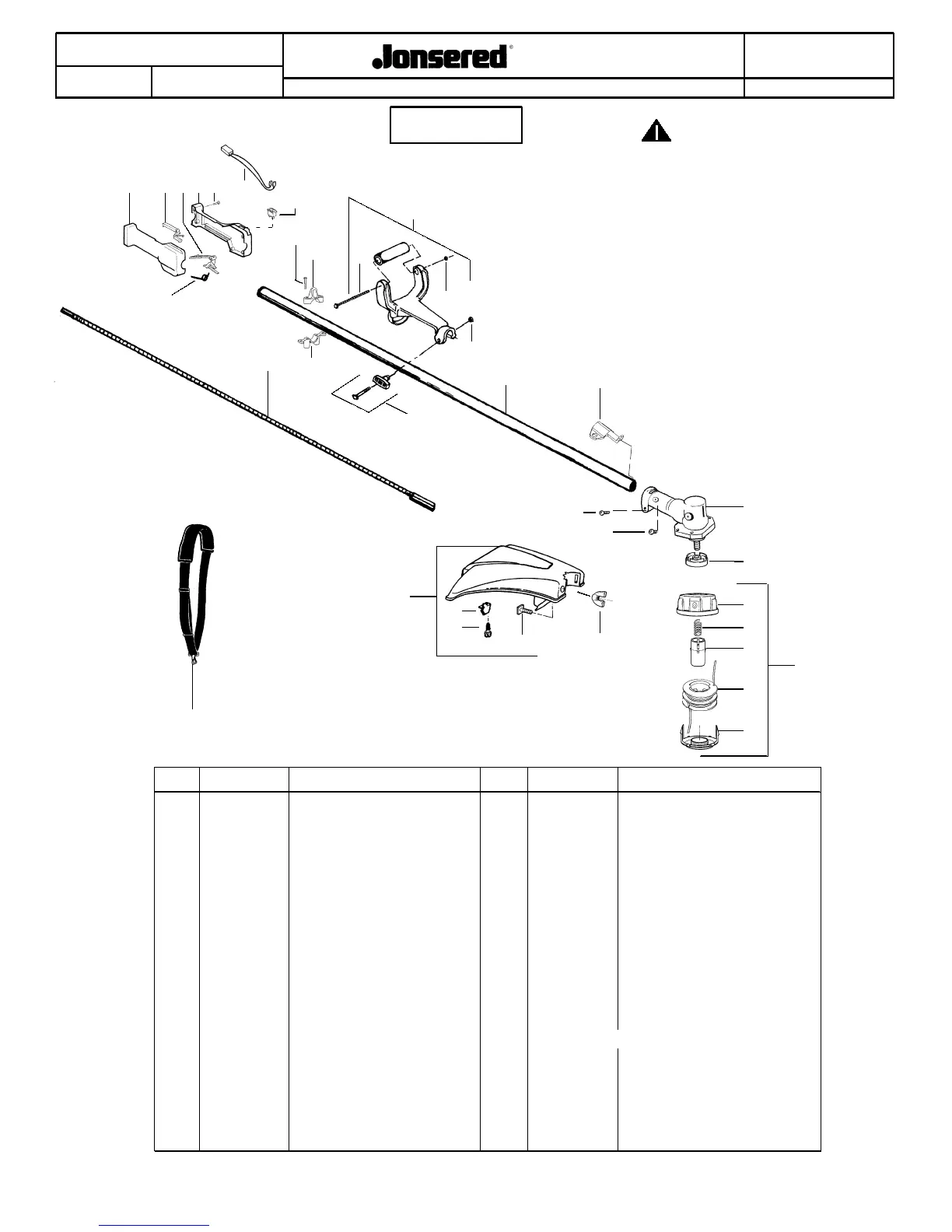

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
PARTS LIST
Note:
Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
530084491
GT26L
DATE
7/24/02
2
REPLACES
530084491--12/05/01
23
24
25
27
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must
be performed by qualified
service personnel.
WARNING
6
45
1. 530402025 Hsg.--Throttle (Right)
2. 530402028 Lock--Throttle
3. 530402027 Lever--Throttle
4. 530402026 Hsg.--Throttle (Left)
5. 530015886 Screw
6. 530047307 Assy--Lead Wire
7. 530069572 Kit--Switch
8. 530015770 Screw
9. 530055392 Clamp--Harness (upper)
10. 530010958 Assy--Antivibe Handle
11. 530015784 Screw
12. 530015785 Locknut
13. 530042093 Spring -- Lever Return
14. 530095795 Shaft--Flex
15. 530055394 Clamp--Harness (lower)
16. 530069252 Kit--“T” Handle
17. 530015197 Nut
18. 530071288 Kit--Drive Shaft Hsg.
19. 530095812 Bracket--Shield
20. 530016014 Screw
21. 530016371 Screw
22. 530092085 Shoulder Strap
23. 530069779 Kit--Shield Ass’y.
(Incl. 28--31)
24. 530095387 Line Limiter
25. 530015805 Screw
26. 530015820 Bolt
27. 530016118 Wingnut
28. 530071584 Kit--Gear Box Assy.
29. 530095814 Cup--Dust
30. 530047294 Assy--Hub
31. 530094830 Spring--Compression
32. 530094827 Button--Release
33. 530095255 Spool w/Line
34. 530094828 Cover
35. 530047298 Assy--Cutting Head
(Incl. 32--36)
-- Operator’s Manual
530088143 European
530088144 Scandinavia
530054766 Shaft Warning Decal
530031159 Hex Wrench (5/32)
26
Ref. Part No. Description Ref. Part No. Description
=
NEW PART NUMBER FOR THIS IPL
n
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
2
1
13
14
16
17
10
30
31
32
33
34
35
3
7
12
11
22
Not Shown
18
n
n
n
n
n
n
n
n
n
TYPE 3
19
28
15
9
8
20
21
29
