Jonsered GT26 L User Manual

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST
R
R
POULAN PARTS LIST
R
PARTS LIST
Note:
Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)

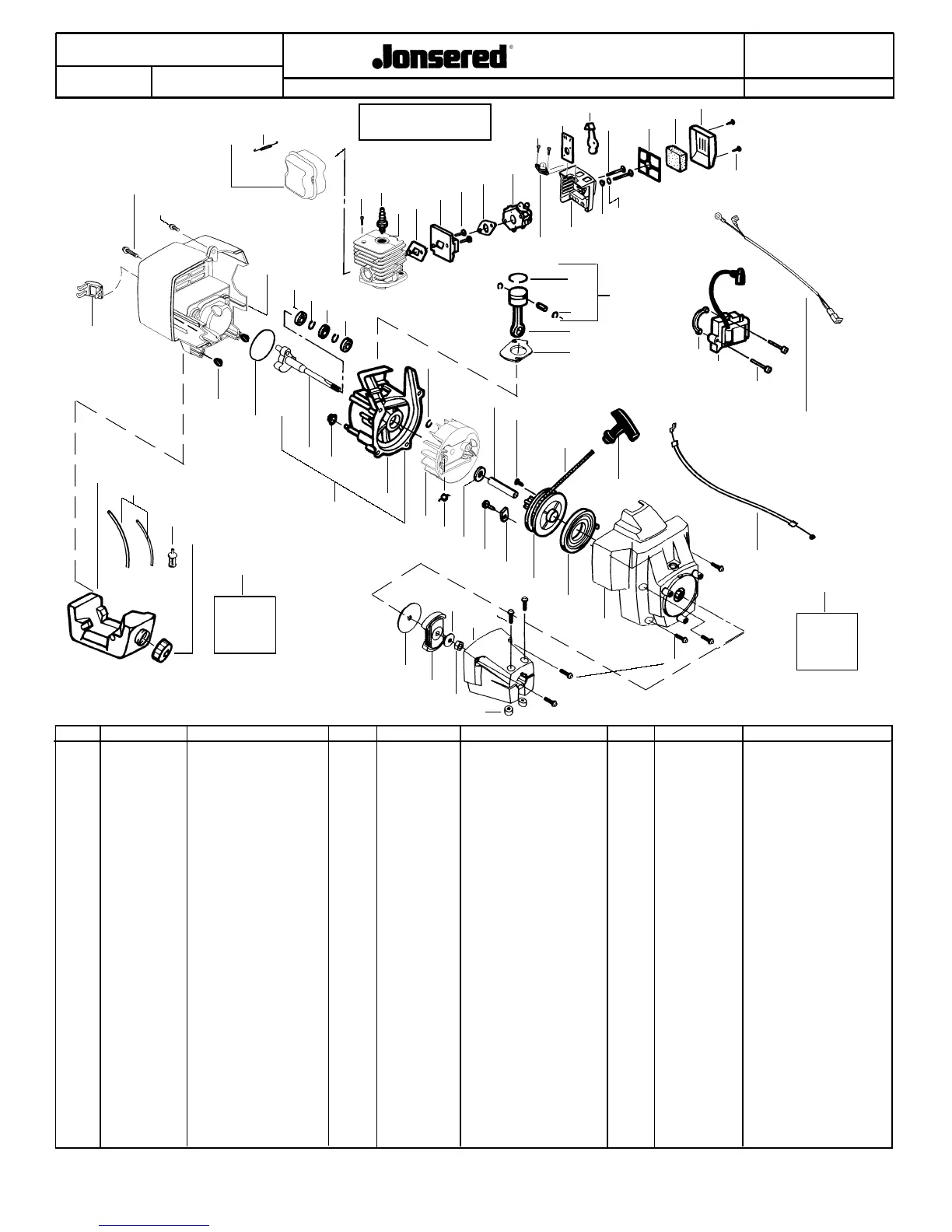

530084491
GT26L
DATE
7/24/02
4
REPLACES
530084491--12/05/01
1. 530071396 Kit -- Muffler
2. 530042088 Spring--Muffler
3. 530015953 Screw--Cylinder
4. 952030249 Spark Plug (RCJ 6Y)
5. 530071545 Kit -- Cylinder
6. 530071363 Gasket--Cyl./Carb.(kit)
7. 530056404 Adapter--Carb.
8. 530016014 Screw
9. 530071363 Gasket--Carb. (kit)
10. 530069902 Kit -- Carburetor Ass’y
(Incl. Limiter Cap)
11. 530016090 Screw--Primer Bulb
12. 530037326 Choke Plate Mounting
13. 530038102 Shutter--Choke
14. 530016353 Screw
15. 530037413 Plate -- Filter Support
16. 530037331 Foam--Air Filter
17. 530037292 Cover--Air Filter
18. 530015957 Screw
19. 530015852 Spacer--Choke
20. 530015254 Washer
21. 530054554 Air Box
22. 530038874 Assy--Primer Bulb
23. 530071357 Kit -- Piston
(Incl. 24, 25 & Pin)
24. 530055120 Ring--Piston
25. 530015162 Retainer--Piston Pin
26. 530069945 Assy--Connecting Rod
27. 530071363 Gasket--Cylinder (kit)
28. 530036145 Spacer--Module
29. 530039163 Ignition Module
30. 530015954 Screw
31. 530047278 Assy--Switch Wire
32. 530071363 Kit--Engine Gasket
(Incl. 6,9,27,48)
33. 530056241 Assy--Throttle Cable
34. 530027569 Handle--Starter
35. 530069232 Kit -- Rope
36. 530016080 Screw
37. 530037414 Spacer--Flywheel
38. 530015941 Retain. Ring--C’shaft
39. 530032124 Bearing--Outer
40. 530019179 Seal--C’case
41. 530015945 Retainer Ring--C’case
42. 530032125 Bearing--Inner
43. 530056827 Shroud--Rear
44. 530015934 Screw
45. 530015810 Screw
46. 530054536 Guard--Muffler
47. 530036793 Isolator--Shroud
48. 530071363 O--Ring--C’case (kit)
49. 530014864 Assy--Crankshaft
50. 5530036792 Isolator--Crankcase
51. 530012462 Assy--Crankcase
(Incl. 39--42)
52. 530056298 Assy--C’case & C’shaft
(Incl. 38,49,51)
53. 530069886 Assy--Flywheel
54. 530023817 Spring--Starter Dog
55. 530015149 Washer
56. 530015775 Screw
57. 530027523 Retainer
58. 530069400 Kit--Starter Pull(incl 36)
59. 530042085 Spring--Starter
60. 530047493 Assy.--Fan Hsg
61. 530015810 Screw
62. 530015767 Screw
63. 530047073 Assy--Clutch Hsg.
64. 530015828 Washer--Flat
65. 530015768 Nut
66. 530626605 Nut--Clutch
67. 530069491 Assy--Clutch
68. 530015611 Washer--Clutch
69. 530071391 Kit--Spark Arrestor
70. 530014347 Assy--Fuel Cap
71. 530095646 Assy--Fuel Pickup
72. 530069599 Kit--Fuel Line
73. 530069862 Assy--Fuel Tank
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
58
55
56
45
34
5
3
8
38
52
28
27
29
53
37
25
23
49
43
40
41
42
48
4
6
7
26
9
21
10
12
19
13
17
16
71
32
61
35
36
57
24
20
51
59
1
Engine
Gasket
Kit
70
18
15
14
44
2
‘
73
72
30
33
31
=
NEW PART NUMBER FOR THIS IPL
n =
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
39
60
68
67
64
66
65
63
62
11
22
47
50
54
69
Kit
Spark
Arrestor
46
n
n
n
nn
n
n
TYPE 3
n
n
n
n
n
n
n
n
n
