15
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See “TO ADJUST CUTTING HEIGHT” in the Operation
section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear wheels of
your mower, is provided to minimize the possibility that
objects will be thrown out of the rear of the mower into
the operator's mowing position. If the deflector becomes
damaged, it should be replaced.

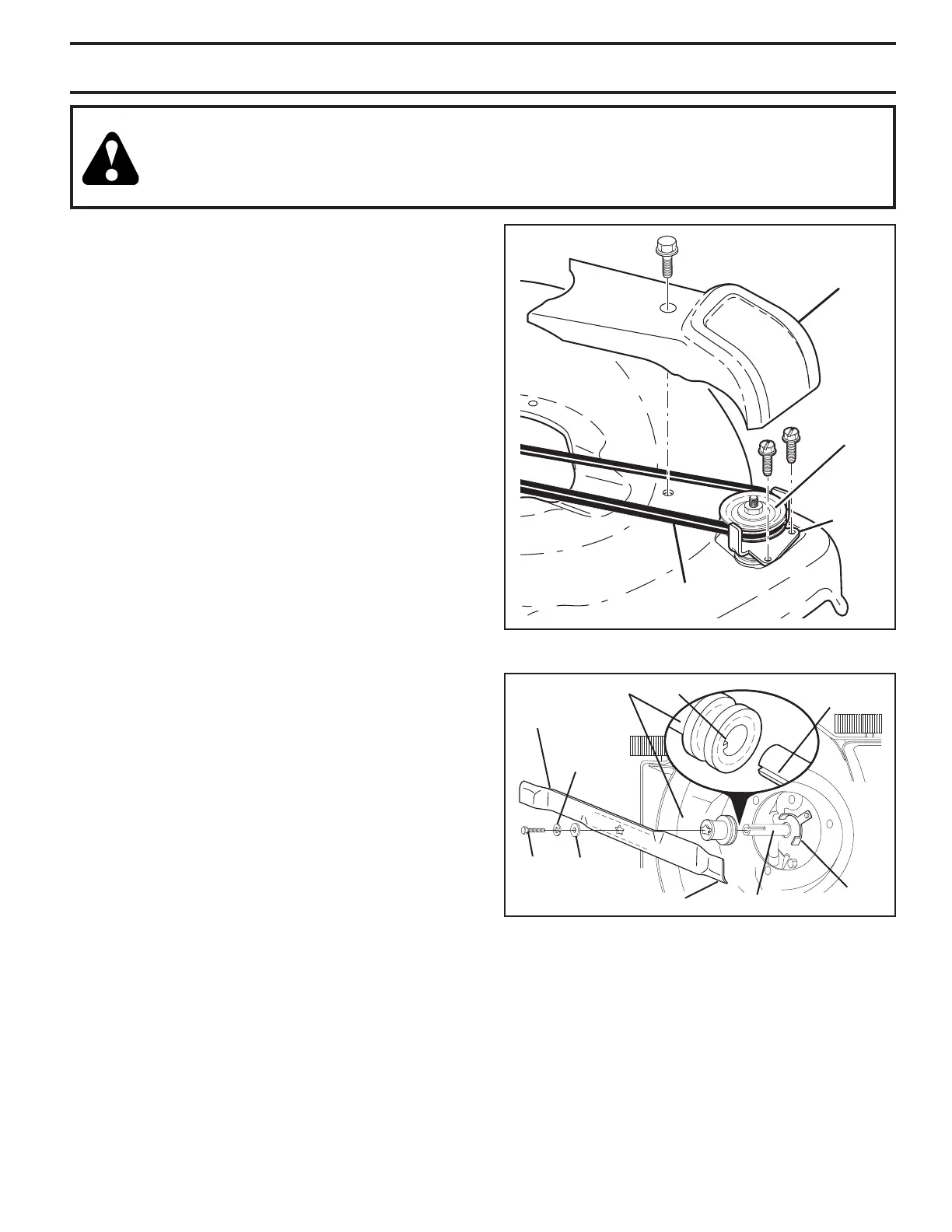

TO REMOVE DRIVE BELT
(See Figs. 20 and 21)
1. Remove drive cover and belt keeper.
2. Remove belt from gearcase pulley.
3. Turn lawn mower on its side with air filter and car bu re-
tor down.
4. Remove blade and blade adapter.
5. Remove belt from engine pulley.
TO REPLACE DRIVE BELT
(See Figs. 20 and 21)
1. Place new drive belt on engine pulley, inside tabs of
belt retainer.
2. Route the other end of the new drive belt through hole
in housing.
3. Reinstall blade adapter and blade. The recommended
tightening torque is 35-40 ft. lbs.
4. Return mower to upright po si tion.
5. Install new belt on gearcase pulley.
6. Reinstall belt keeper and drive cover.
NOTE: Always use factory approved belt to assure proper
fit and long life.
CAUTION: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:
1. Release control bar and stop engine.
2. Make sure the blade and all moving parts have completely stopped.
3. Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.
SERVICE AND ADJUSTMENTS
FIG. 21
BLADE
BOLT
HARDENED
WASHER
LOCK
WASHER
BLADE ADAPTER KEY
BLADE
TRAILING EDGE
CRANKSHAFT
KEY WAY
CRANKSHAFT
BELT
RETAINER
FIG. 20
DRIVE
COVER
GEARCASE
PULEY
BELT
BELT
KEEPER
