10
OPERATION
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.
Save this manual for future reference.
ATTACHMENT CLUTCH LEVER - Used to engage the
mower blades, or other attachments mounted to your
tractor.
ATTACHMENT LIFT LEVER - Used to raise, lower, and
adjust the mower deck or other attachments mounted to
your tractor.
CLUTCH/BRAKE PEDAL - Used for declutching and brak-
ing the tractor and starting the engine.
MOTION CONTROL LEVER - Selects the speed and
di rec tion of the tractor.
IGNITION SWITCH - Used for starting and stopping the
engine.
LIGHT SWITCH - Turns the headlights on and off.
Our tractors conform to the applicable safety standards of the American National Standards Institute.

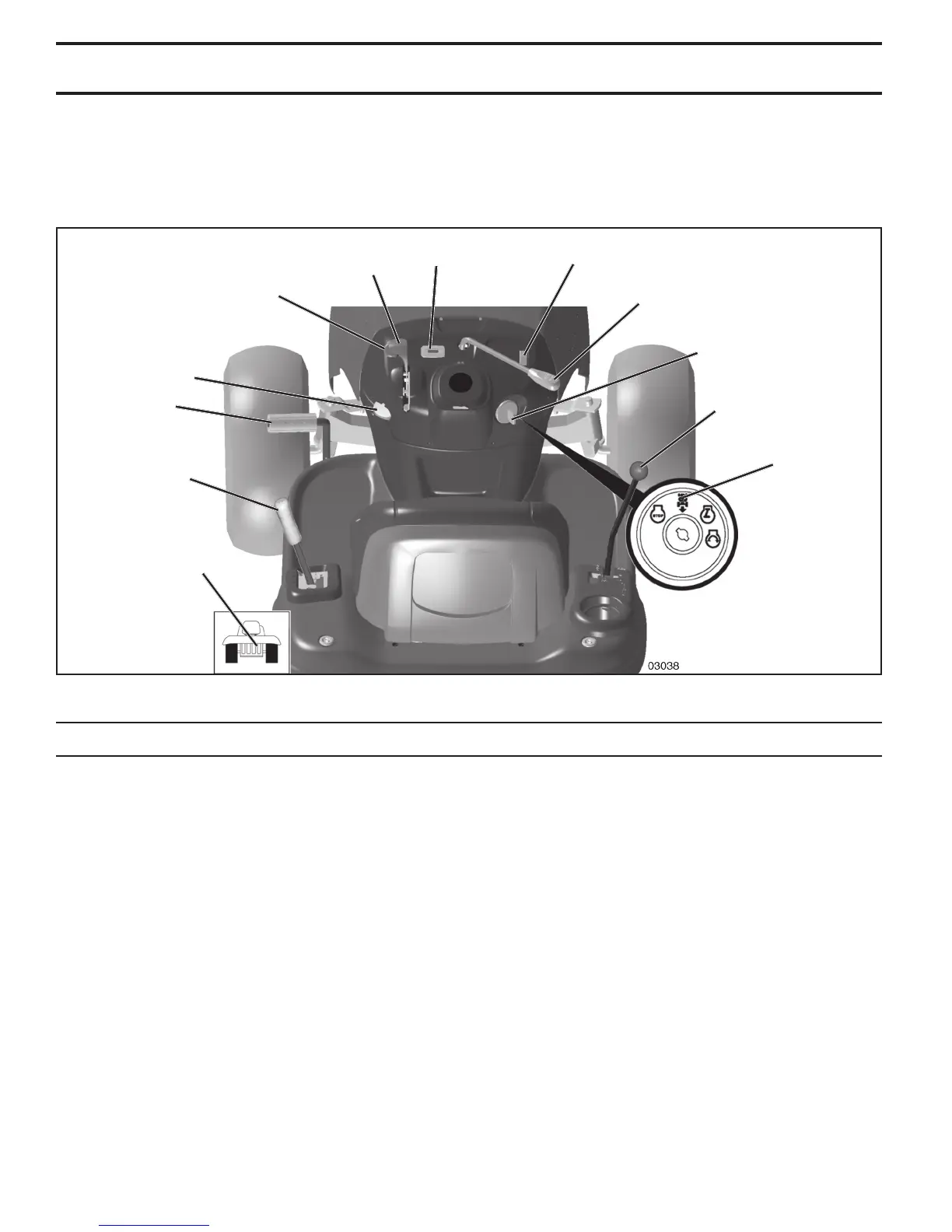

Fig. 5
PARKING BRAKE - Locks clutch/brake pedal into the
brake position.
REVERSE OPERATION SYSTEM (ROS) “ON” POSI-
TION - Allows operation of mower deck or other powered
attachment while in reverse.
THROTTLE CONTROL - Used for starting and con trol ling
engine speed.
CHOKE CONTROL - Used when starting a cold engine.
SERVICE REMINDER/HOUR METER - Indicates when
service is required for the engine and mower.
FREEWHEEL CONTROL - Disengages transmission for
pushing or slowly tow ing the trac tor with the engine off.
PARKING
BRAKE
CLUTCH/BRAKE
PEDAL
THROTTLE
CONTROL
MOTION CONTROL
LEVER
ATTACHMENT
LIFT LEVER
IGNITION
SWITCH
ATTACHMENT
CLUTCH LEVER
ROS "ON"
POSITION
LIGHT
SWITCH
SERVICE REMINDER/
HOUR METER
FREEWHEEL
CONTROL
CHOKE
CONTROL
