Place each Solo and Mini face down on a scratch-
free surface and align, as shown in Figure A.
STEP 1
Locate the Quad Bracket Kit, and place the Quad
Bracket on top of the Solos and Minis aligning the
bracket holes with the corresponding holes on each
device. Attach the bracket using (24) M4x6mm Allen
screws and hand tighten using the included Allen
wrench, as shown in Figure A.
STEP 2
Your Joovv system comes with extra screws.
Do not use a drill to install the screws as this can
strip the threads.
#1 Lead Mode #2 Follow Mode
#4 Follow Mode#3 Follow Mode

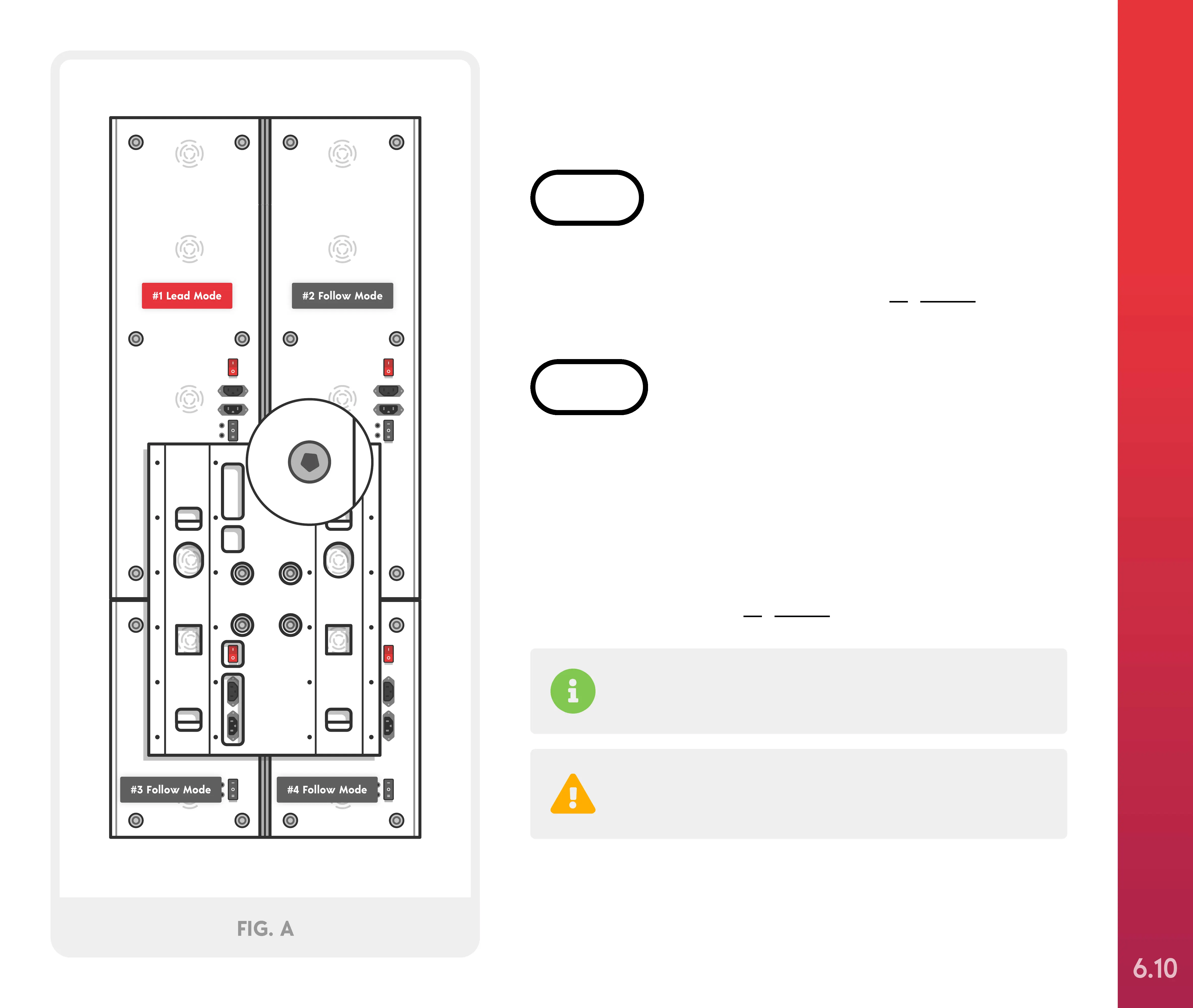

FIG. A
Optional Mounting Systems
(2 people required)
SETTING UP YOUR JOOVV MAX
