Place each Solo face down on a scratch-free surface
and align, as shown in Figure A.
STEP 1
Locate the Quad Bracket Kit, and place the Quad
Bracket on top of the Solos aligning the bracket
holes with the corresponding holes on each device.
Attach the bracket using (24) M4x6mm Allen screws
and hand tighten using the included Allen wrench,
as shown in Figure A.
STEP 2
Your Joovv system comes with extra screws.
Do not use a drill to install the screws as this can
strip the threads.
#1 Lead Mode #2 Follow Mode
#4 Follow Mode#3 Follow Mode

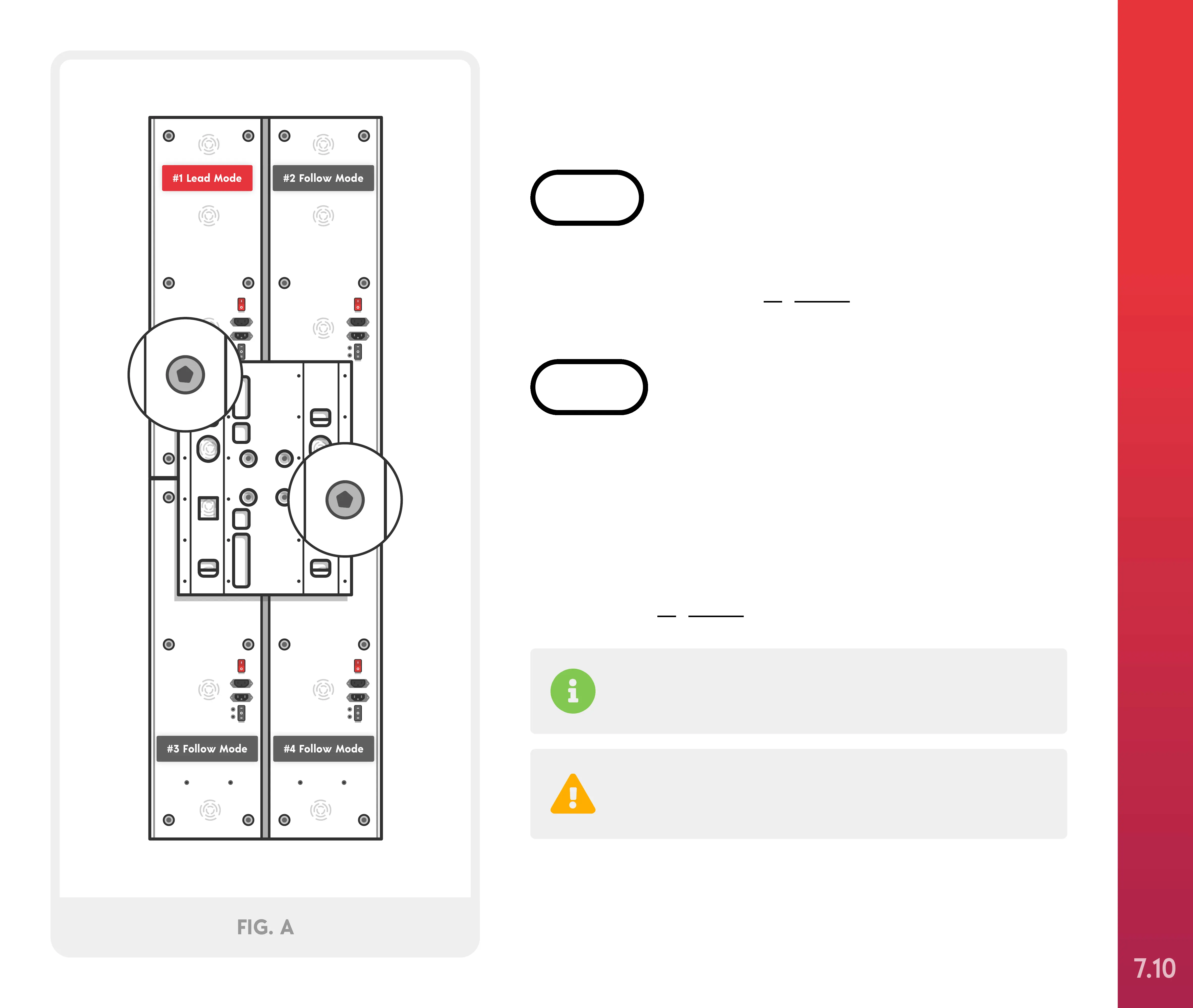

FIG. A
Optional Mounting Systems
(2 people required)
SETTING UP YOUR JOOVV QUAD
