ASSEMBLY INSTRUCTIONS JK270
Tools needed:
2
p
c adjusta
b
le wrenches
1 pc Phillips Screwdriver
1 pc Flathead Screwdriver All Measurments In Metric Units*
Tools needed:
2
p
c adjusta
b
le wrenches
1 pc Phillips Screwdriver
1 pc Flathead Screwdriver All Measurments In Metric Units*

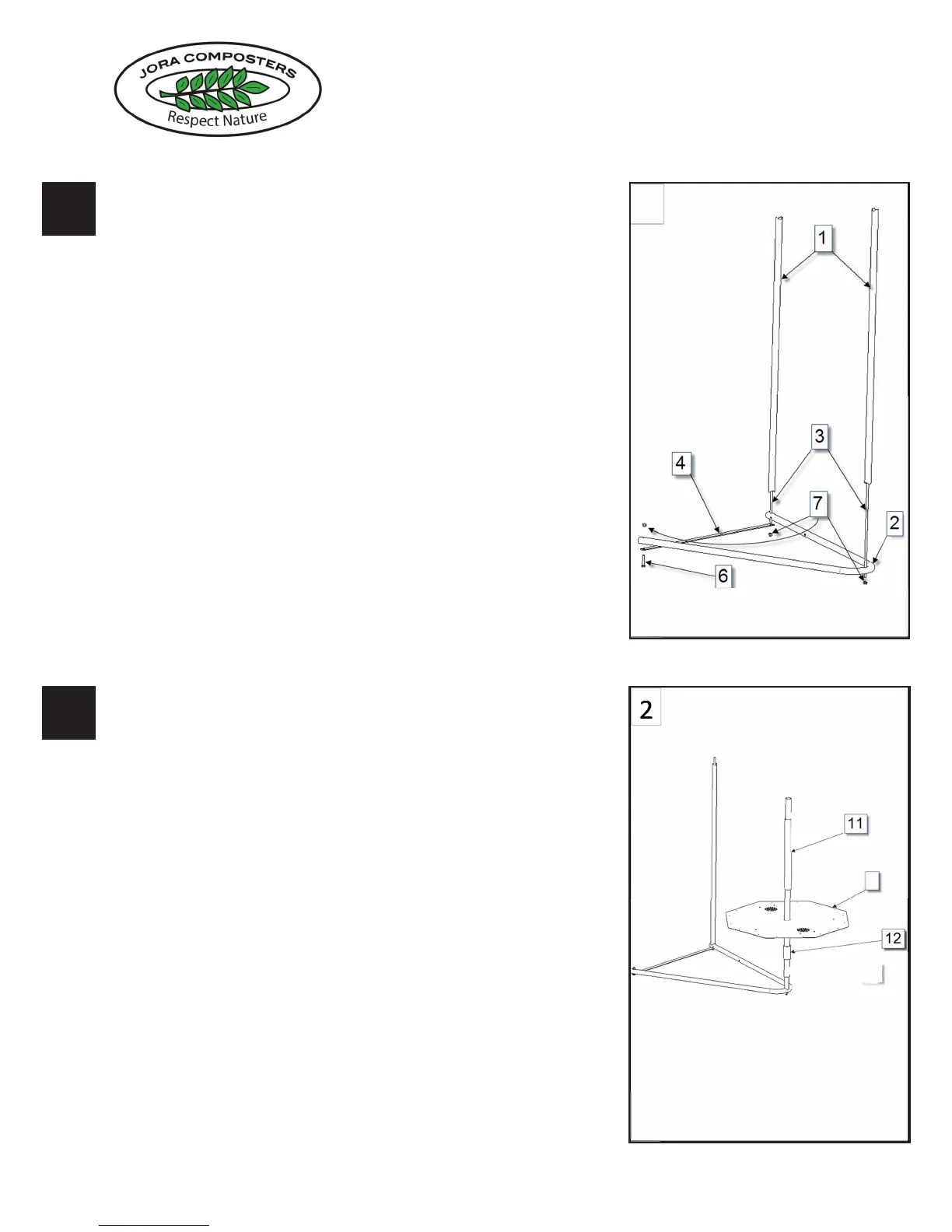

For all connections hand tighten only for step 1.
Place cross brace #4 on the ground
Set one piece of the stand #2 V shaped on top (note: the
stand has a front and back, back has 2 extra holes for
cross brace)
Insert threaded at each end rod #3 through bottom back
hole and cross brace and attach nut.
Insert bolt #6 and attach nut #7 through front lower hole
in stand to attach brace #4
Insert rod #3 through top middle hole and attach nut.
Slide hollow metal rods #1 over each of the threaded
rods previously completed
1
Slide long black tube #10 over top steel pipe.
Slide shortest black tube #12 over long black tube.
Slide octagon metal side #8 (painted side down) over the
long black tube until it reaches the small black tube on
the bottom.
Slide on medium length black tube #11 until it reaches
metal side.
2
To Next Page
