6

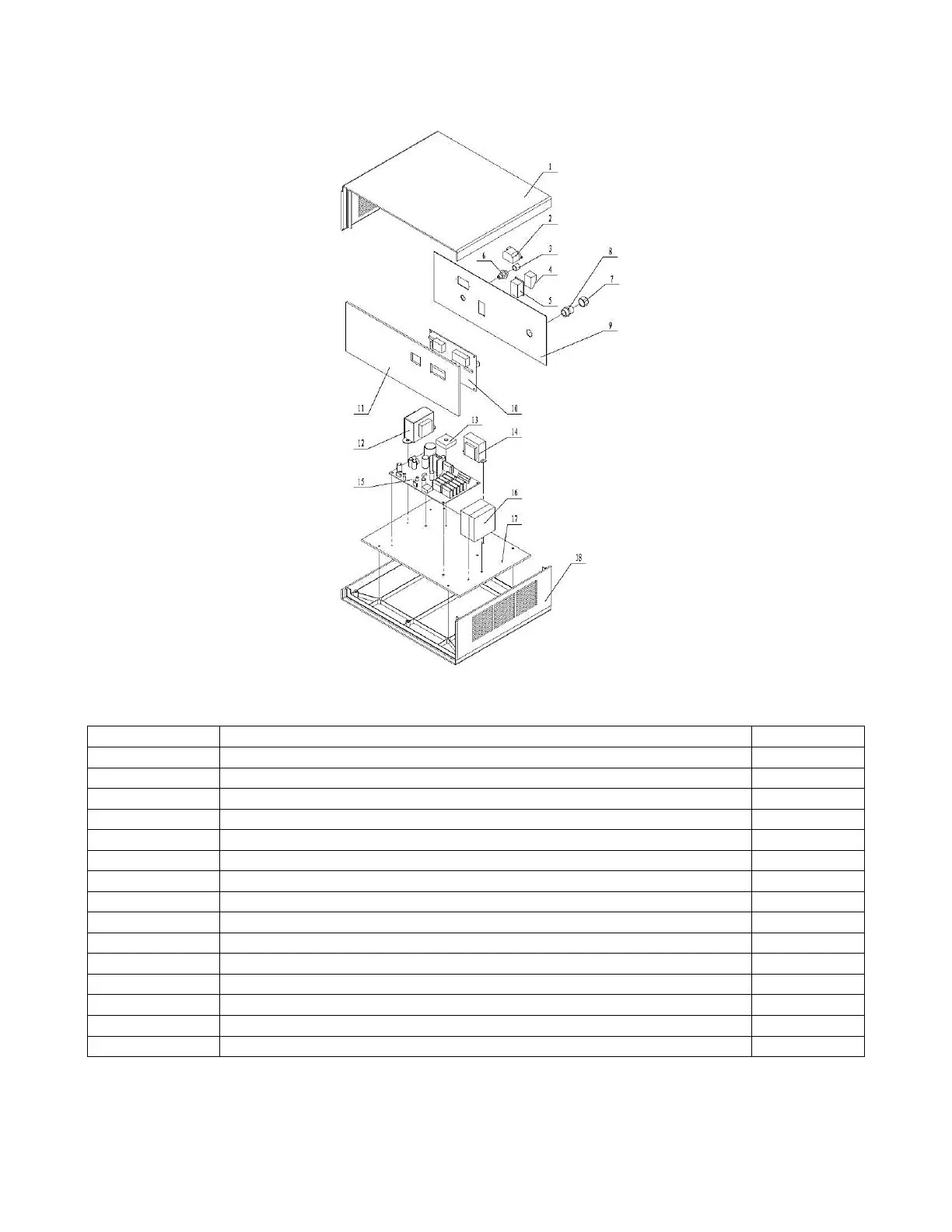

MACHINE PARTS AND DIAGRAMS

Machine Breakdown

Part Number

Description

Quantity

1

Machine Top Cover

1

2

Power plug

1

3/6

Power Fuse

1

4/5

Main Switch

1

7/8

Induction Head Cable Gland

1

9

Back Cover

1

10

Display Board

1

11

Front Cover

1

12

Control Transformer

1

13

Bridge Rectifier

1

14

Control Inductive Reactance

1

15

Main PCB Board

1

16

Power Transistor / Cooling Fan

1

17

Mounting Plate

1

18

Machine Base

1
