31

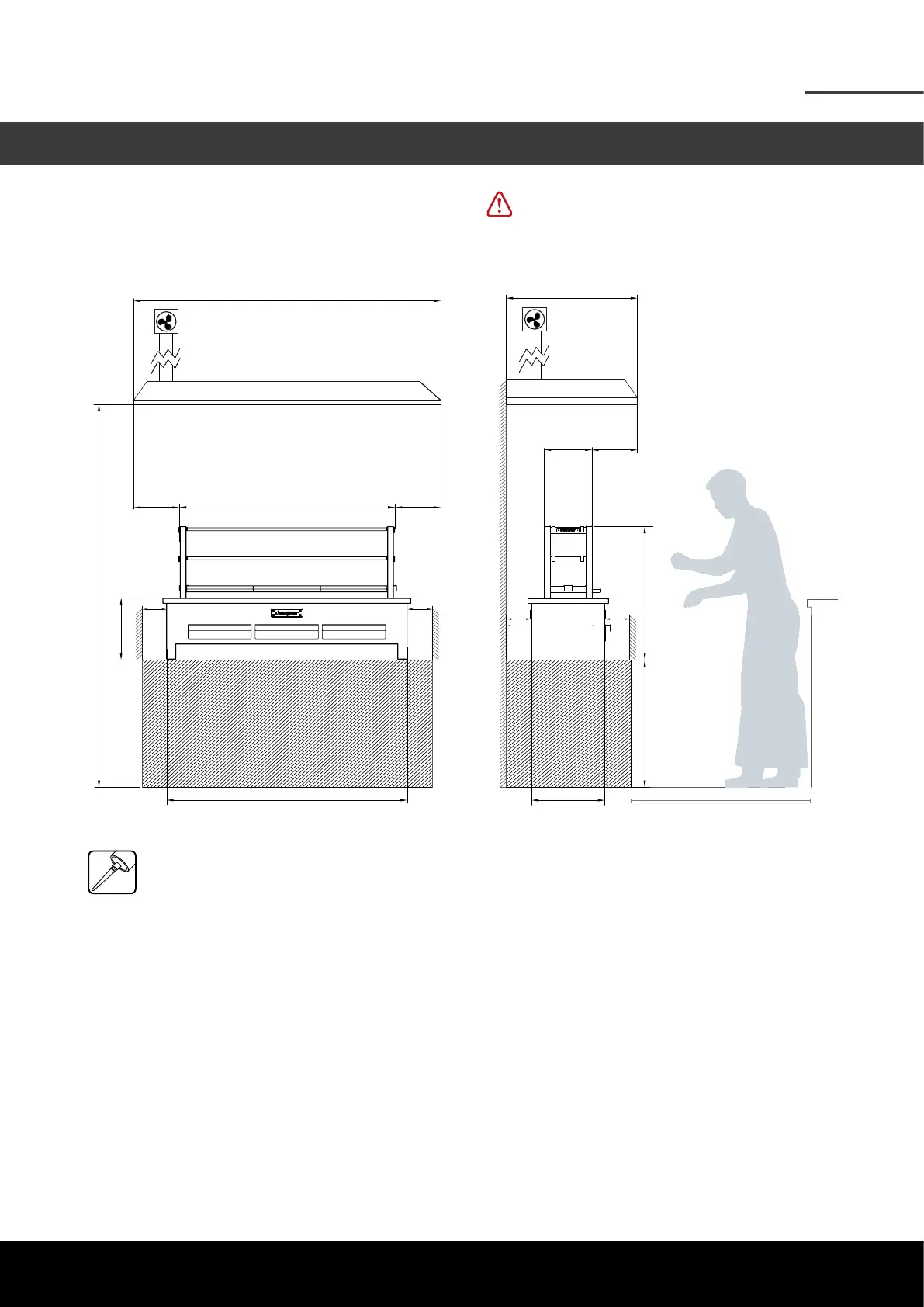

INSTALLATION INSTRUCTIONS / INSTRUCCIONES DE INSTALACIÓN
RGJ-100
RECOMMENDED SUCTION RATE: 1883 CFM
CAUDAL DE ASPIRACIÓN RECOMENDADO: 3200 M
3
/H
Las medidas en color negro son milímetros (mm), en color gris son pulgadas.
The measures in black are millimeters (mm), in gray inches (in).
2000
1
[78,74]
1044
[41,10]
1167
[45,95]
1450
1
[57,09]
297
[11,69]
232
[9,13]
355
[13,98]
* *
800
[31,50]
2
648
[25,51]
3
630
[24,80]
*
*
200
[7,87]
1
750
[29,53]
200
[7,87]
1
200
[7,87]
1
1
MINIMUM DISTANCE TO FLAMMABLE ELEMENTS: 300 mm [11,8 in]
RECOMENDED DISTANCE TO ANOTHER ELEMENTS: 100 mm [4 in]
RECOMMENDED HOOD’S MINIMUM DIMENSIONS
RECOMMENDED WORKING SPACE FOR CHEF
RECOMMENDED INSTALLATION HEIGHT
*
1
2
3
DISTANCIA MÍNIMA A ELEMENTOS INFLAMABLES: 300 mm [11,8 in]
DISTANCIA RECOMENDADA A OTROS ELEMENTOS: 100 mm [4 in]
MEDIDAS MÍNIMAS RECOMENDADAS DE LA CAMPANA EXTRACTORA
ESPACIO RECOMENDADO DE TRABAJO PARA EL CHEF
ALTURA DE INSTALACIÓN RECOMENDADA
*
1
2
3
INSTALLATION ON COUNTERTOP INSTALACIÓN EN ENCIMERA
5.2
Se deben sellar con silicona las partes de la Robata Grill que se encuentran en contacto con el mueble inferior.
The parts of the Robata Grill which are in contact with the lower furniture must be sealed with silicone.
