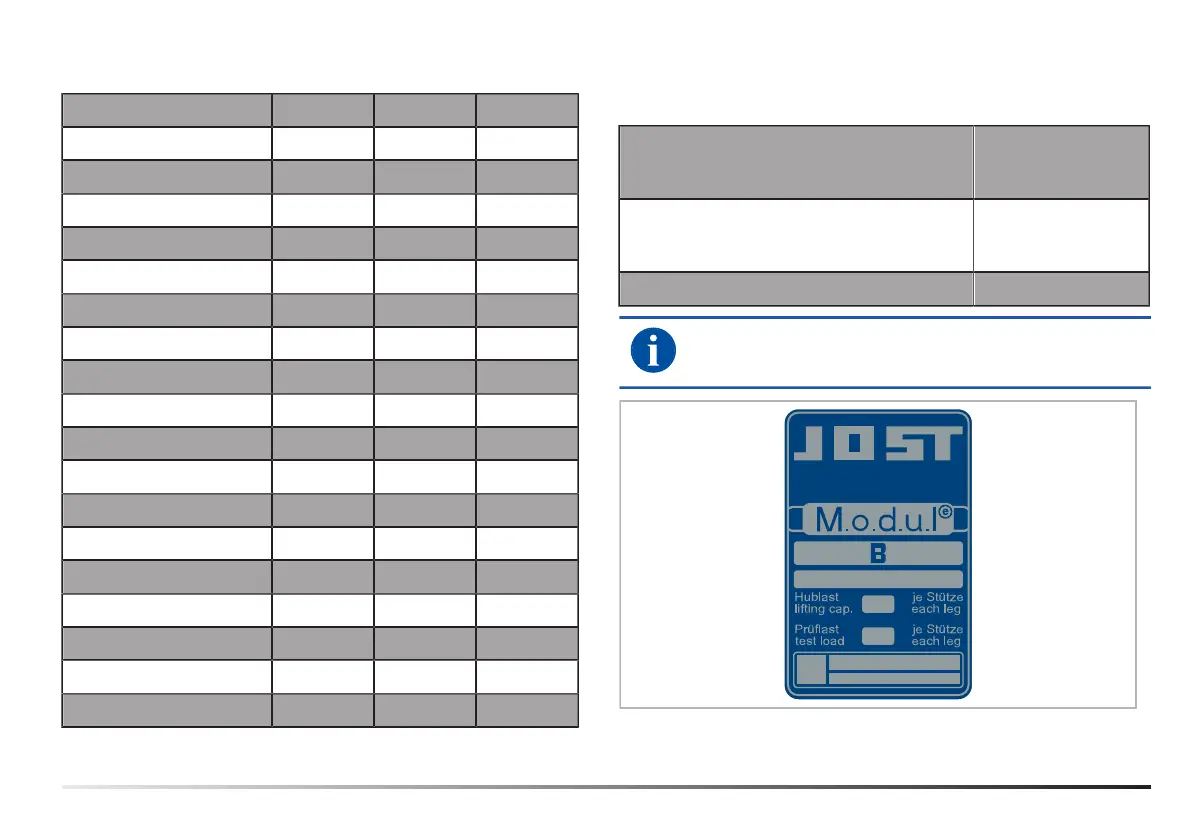

8 Technical data
Order number Mh H A
Modul B 01 01 900 mm 560 mm 630 mm
Modul B 02 01 850 mm 520 mm 580 mm
Modul B 03 01 800 mm 470 mm 530 mm
Modul B 04 01 750 mm 430 mm 480 mm
Modul B 05 01 700 mm 400 mm 430 mm
Modul B 06 01 650 mm 350 mm 380 mm
Modul B 01 02 900 mm 560 mm 630 mm
Modul B 02 02 850 mm 520 mm 580 mm
Modul B 03 02 800 mm 470 mm 530 mm
Modul B 04 02 750 mm 430 mm
Modul B 05 02 700 mm 400 mm
Modul B 06 02 650 mm 350 mm
Modul B 01 03 900 mm 560 mm 630 mm
Modul B 02 03 850 mm 520 mm 580 mm
Modul B 03 03 800 mm 470 mm 530 mm
Modul B 04 03 750 mm 430 mm
Modul B 05 03 700 mm 400 mm
Modul B 06 03 650 mm 350 mm
Load data per set
Lifting load
Stat. test load
24 t
50 t
35 t with castor
Lift per turn of crank handle:
Low gear
High gear
0.9 mm
15 mm
Crank force with 16 t lifting load 210 Nm
ADVICE!
Subject to changes in dimensions and design!
Made in Germany / Neu-Isenburg
16 MUB 006 003 M01 (REV-A) 07-2020 Modul B & OPTIMA
