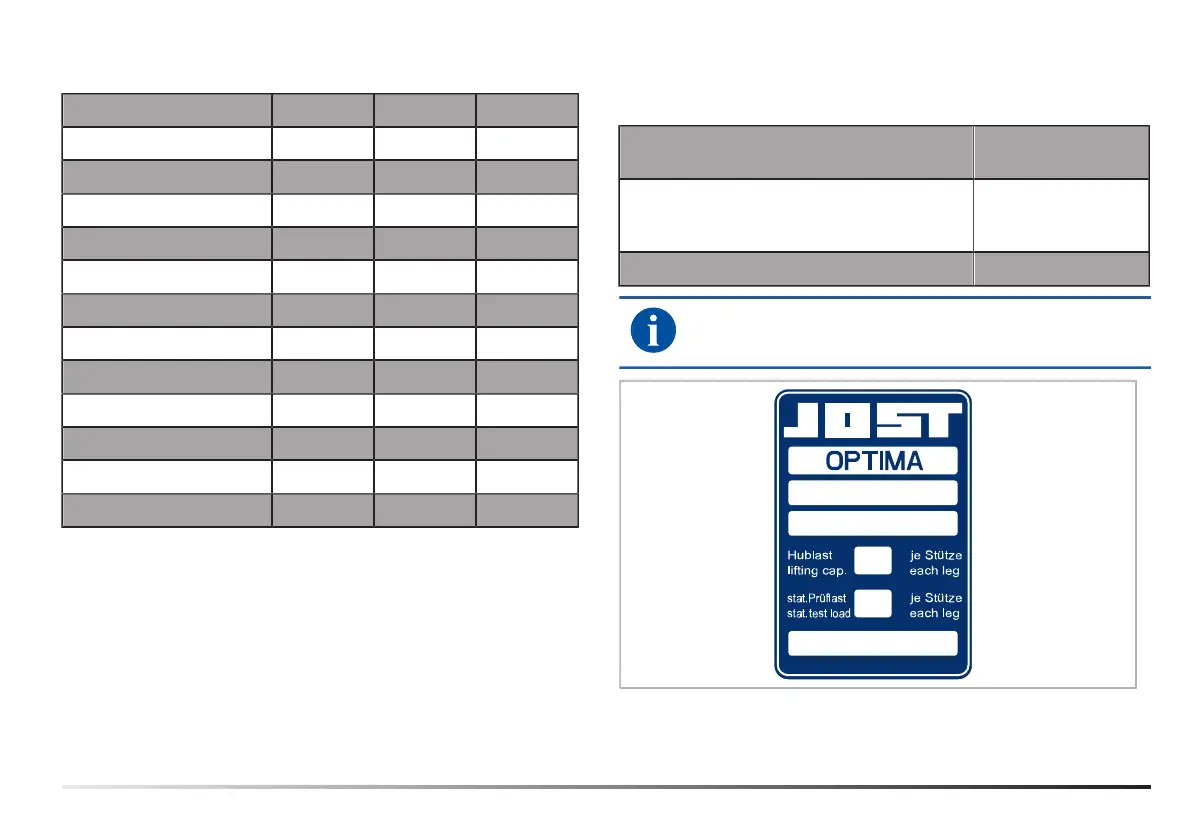

8 Technical data
Order number Mh H A
OPT700S-1 700 mm 350 mm 430 mm
OPT750S-1 750 mm 400 mm 480 mm
OPT800S-1 800 mm 450 mm 530 mm
OPT850S-1 850 mm 500 mm 580 mm
OPT700S-2 700 mm 350 mm
OPT750S-2 750 mm 400 mm
OPT800S-2 800 mm 450 mm
OPT850S-2 850 mm 500 mm 580 mm
OPT700S-3 700 mm 350 mm
OPT750S-3 750 mm 400 mm
OPT800S-3 800 mm 450 mm 530 mm
OPT850S-3 850 mm 500 mm 580 mm
Load data per set
Lifting load
Stat. test load
24 t
50 t
Lift per turn of crank handle:
Low gear
High gear
0.9 mm
15 mm
Crank force with 16 t lifting load 210 Nm
ADVICE!
Subject to changes in dimensions and design!
