Jøtul 520 Series User Manual

11
ENGLISH
Jøtul I 520 F / I 520 FR / I 520 FL - alt. A), C)
Jøtul I 520 F / I 520 FR / I 520 FL / I 520 FRL - alt. B)

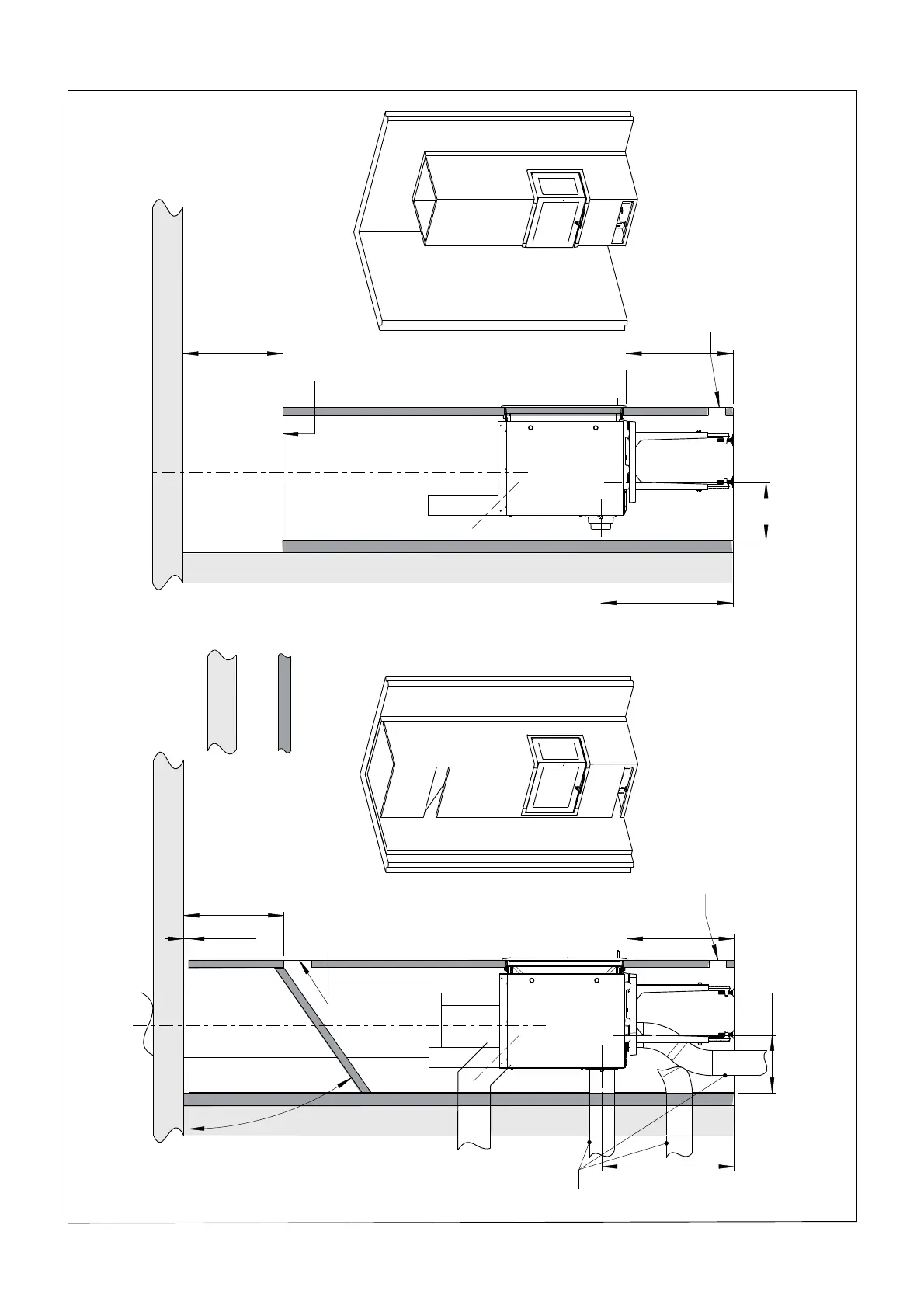

Min. distance to combustible ceiling / floor
Placed in corner Placed against straight wall - not in corner
Combustible wall
Non combustible wall / approved firewall
Opening Air Outlet min. 750 cm
2
Opening Air Inlet min. 500 cm
2
Outside air alternatives
NB! Min. distances provide semi-insulated chimney or shielded flue pipe down towards the product.
900143-P00
Opening Air Inlet min. 500 cm
2
Opening Air Outlet min. 750 cm
2
min. 428 (to frame)
min. 20
min. 400
min. 428 (to frame)
min. 400
35
o
529
231
231
529
Fig. 1 e

Jøtul 520 Series Specifications

General

Material	Cast Iron
Fuel Type	Wood
Log Grate Included	Yes
Ash Pan Included	Yes
Finish	Black Paint, Blue/Black Enamel, Ivory Enamel
Efficiency	75%
Emissions	2.5 g/h
Burn Time	Up to 8 hours
