Jøtul 520 Series User Manual

32

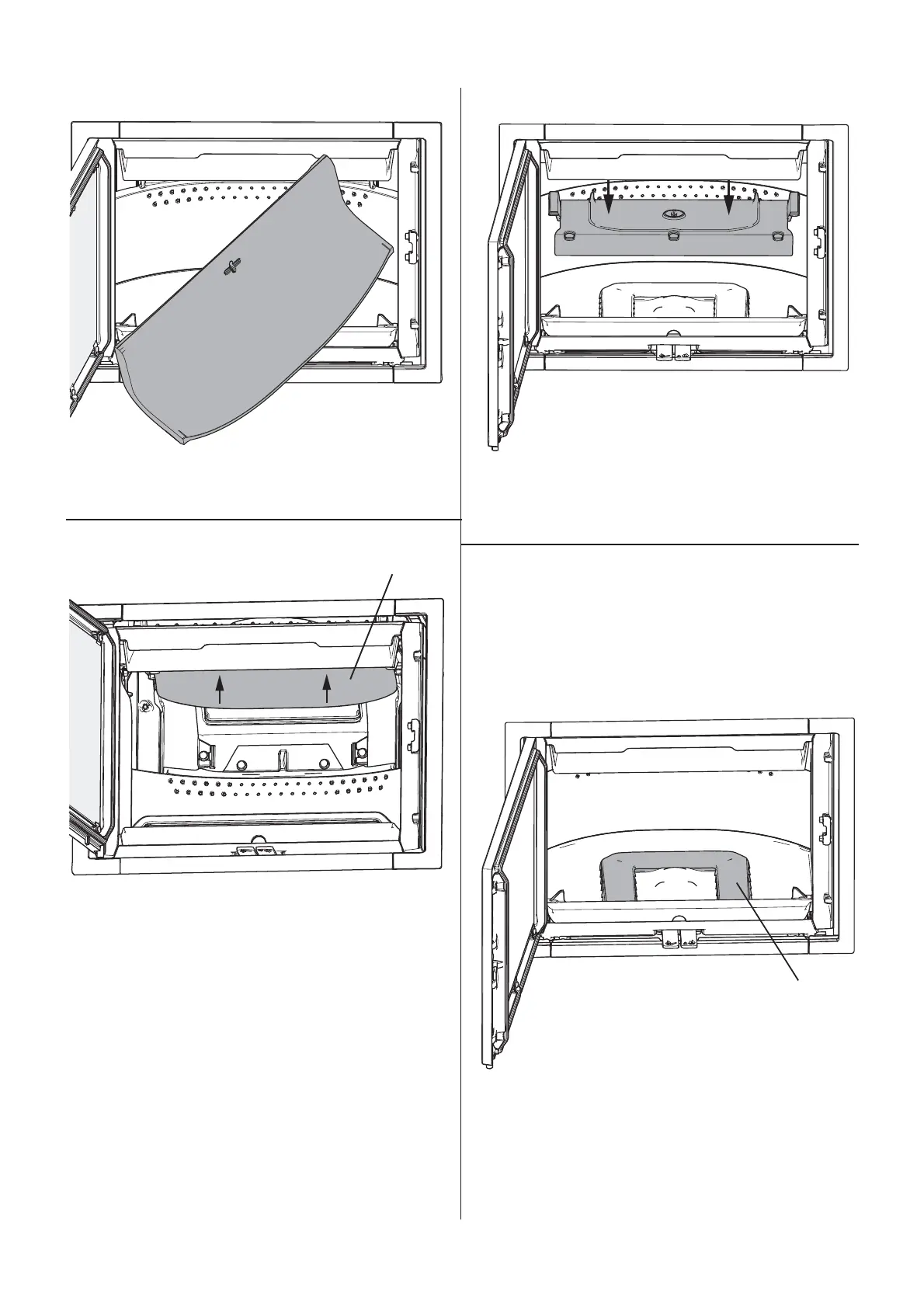

Fig. 46
5. Turn one corner towards you and pull it out sideways.
Fig. 47
1
A
6. Then remove the exhaust deflector (A) by raising it slightly
to begin with. Then push the exhaust deflector backwards.
Fig. 48
2
7. Lower the exhaust deflector and lift it out.
8. When refitting, follow the same procedure in reverse order.
7.2 Replacing the air duct and inner
bottom
It is important that the insert is level when installing it inside a
brick or prefabricated surround and hearth/open fireplace.
Fig. 49
A
1. Lift the air duct (A) up and remove it.
ENGLISH

Jøtul 520 Series Specifications

General

Material	Cast Iron
Fuel Type	Wood
Log Grate Included	Yes
Ash Pan Included	Yes
Finish	Black Paint, Blue/Black Enamel, Ivory Enamel
Efficiency	75%
Emissions	2.5 g/h
Burn Time	Up to 8 hours
