12
5.2 Ash removal
Jøtul F 162 / F 163 have an ash pan which makes it easy to
remove the ash.

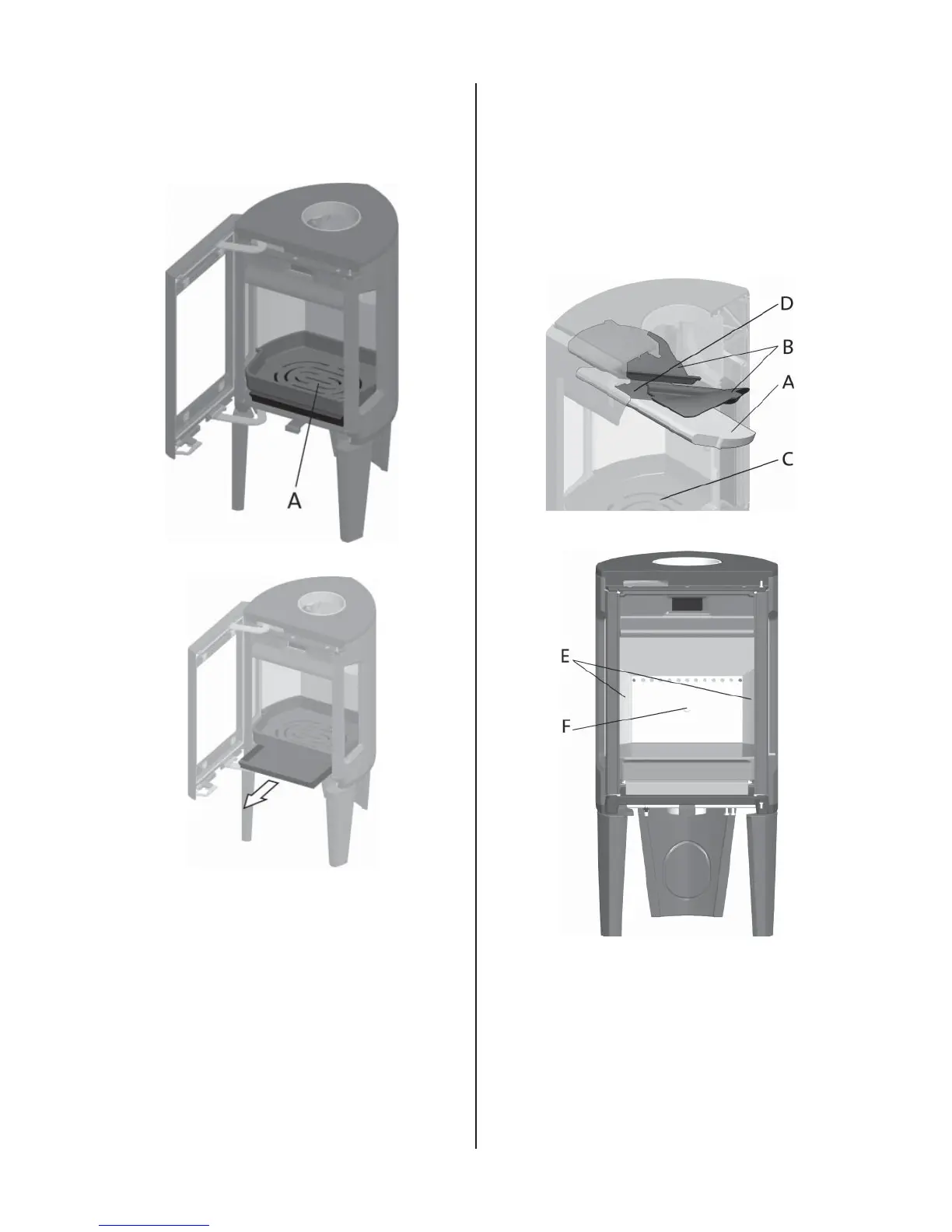

Fig. 8
1. Scrape the ash through the grate ( g. 8 A) in the base plate
and into the ash pan. Use a glove to grab the handle on
the ash pan.
1. Make sure that the ash pan doesn’t ll up so high that it
keeps ash from coming through the grate into the pan.
6.0 Service
Warning! Any unauthorised change to the product is not allowed.
Only use original spare parts.
6.1 Changing the burn plates/inner
bottom plate
Fig.9
1. Lift the baffl e (Fig. 9 A) up carefully.
2. Remove one of the side burn plates (Fig. 9 E) by lifting
them up a little and then out. (Be aware if using tools, that
vermiculite plates may be damaged by rough handling).
3. Remove the baffl e.
4. Remove the other side burn plate.
5. Unscrew the M8x25 mm screw on the rear burn plate (Fig.
9 F) and remove the burn plate.
6. Then lift up and remove the inner bottom plate (Fig. 9 C).
Follow the same procedure for installation, but in the opposite
sequence
.
ENGLISH
