17
ENGLISH
7.3 Replacing the burn plates and ash
grate

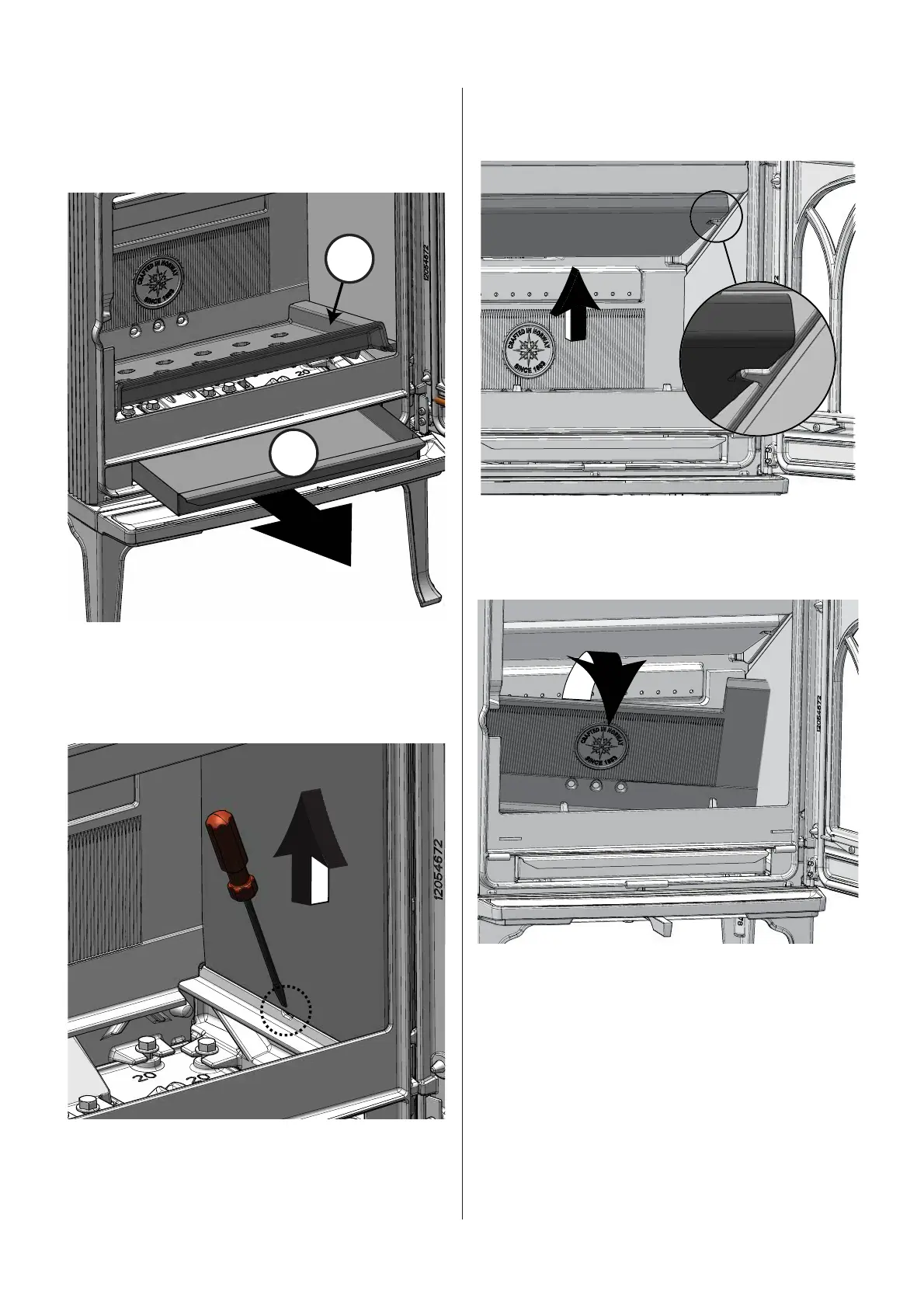

Fig. 19 Replacing the ash grate
1
2
1. Remove the ashtray.
2. Tilt the ash grate in front and edge it out.
Fig. 20 Replacing the side burn plates
OBS! The ash grate has to be removed fi rst
1. Use a screwdriver in the groove and tilt up the burner plate.
2. The burner plate is released at the bottom and can be edged
out.
3. This is done in the same way on the left side.
4. When refi tting, follow the same procedure in reverse order.
Fig. 21a Replace the rear burnplate
OBS! Ash grate and side burner plates must be removed
fi rst
1. Carefully push the baffl e plate up to the rear edge (the
baffl e plate should not be lifted by the studs at the front
(see detail).
Fig. 21b
2. The rear burn plate is tilted forward and edged out of the
oven.
3. When reassembling, follow the same procedure in reverse
order (see fi rst fi gure 22, insulation mat).
