29
Table of contents
1.0 Relationship to the authorities ..................... 29
2.0 Technical data ............................................... 29
3.0 Safety precautions ........................................ 30
4.0 Installation .................................................. 30
5.0 Use .................................................................33
6.0 Maintenance .................................................34
7.0 Service .............................................................35
8.0 Problems - troubleshooting ........................ 36
9.0 Optional Equipment .....................................37
Figures ..................................................................83
1.0 Relationship to the
authorities
Installation of a fireplace must be according to local codes and
regulations in each country.
All local regulations, including thosethat refer to national and
European standards, shall be complied with when installing the
product.
Instructions for mounting, installation and use are enclosed with
the product. Prior to using the product the installation must be
inspected by a qualified person.
A product data label in heat resistant material is located on the
heat shield at the back of the product. This contains information
about identification and documentation for the product.
2.0 Technical data
Material: Cast iron
Finish
-Mini/Maxi Classic/Harmony: Black paint
-Maxi Panorama: Grey paint
Fuel: Wood
Log length, max.: 40 cm
Flue outlet: Top
Flue dimension: Ø 150 mm/177 cm
2
cross section
Approx. weight:
-Mini 125 kg
-Maxi 132 kg
Options extras: Damper, assembly kit for cassette,
alum. panels, enamelled panels,
ash compartment, fire screen,
grill
Dimensions, distances etc.: See fig.1
Technical data according to EN 13229
Mini Maxi
Nominal heat output: 6,0 kW 9,0 kW
Smoke gas mass flow: 5,4 g/s 8,1 g/s
Rec. chimney draught: 12 Pa 12 Pa
Effiency: 83%@4,9 kW 80%@9,9 kW
CO emission (13% O
2
): 0,08% 0,06%
Flue gas temperature: 240
0
C 314
0
C
Operating mode: Intermittent
“Intermittent combustion” here means normal use of a stove.
That is to say, if you want to continue producing heat, you add
more fuel as soon as the previous load of wood has burnt down
to embers.
ENGLISH

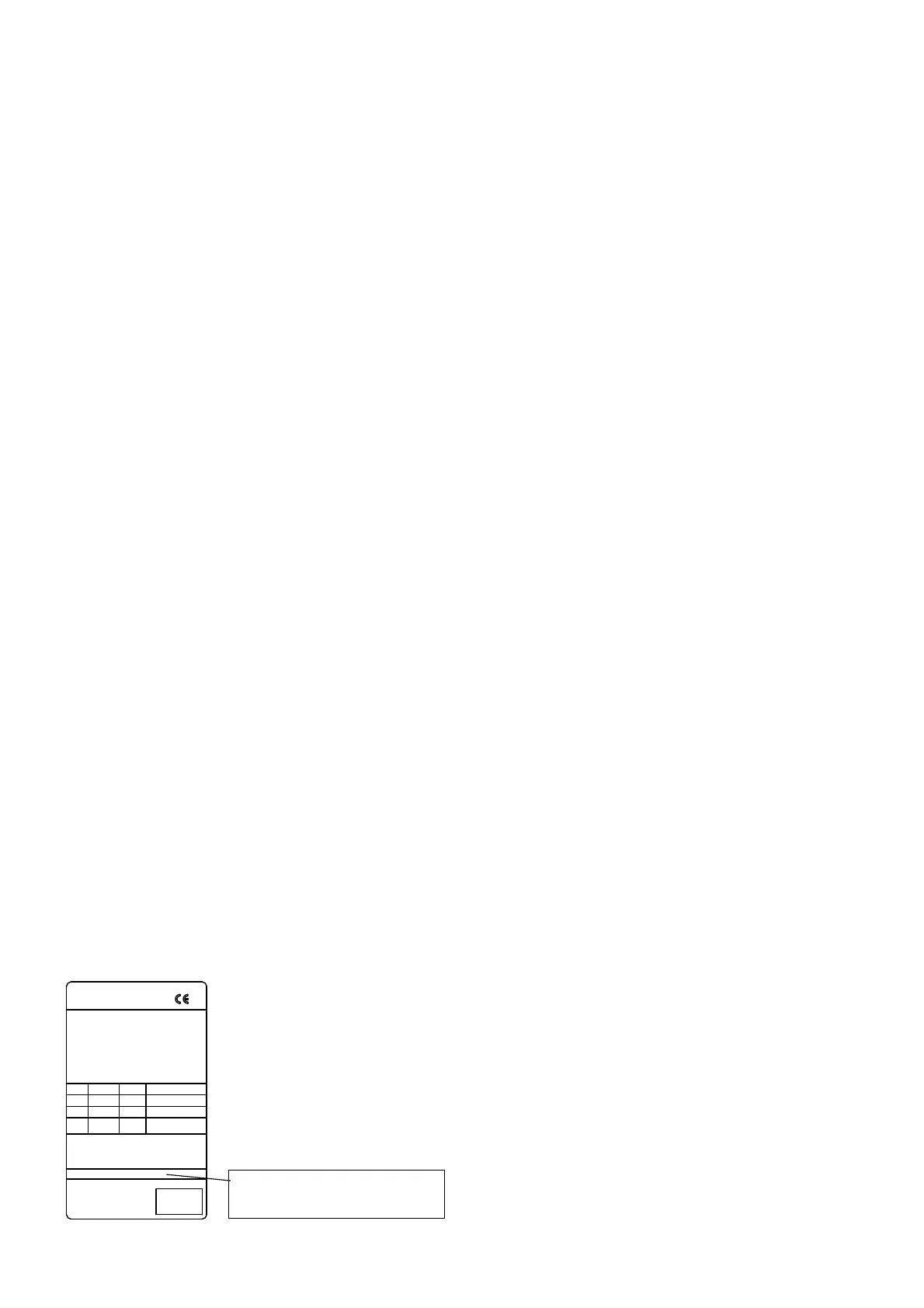

On all our products there is a label
indicating the serial number and
year. Write this number in the
place indicated in the installation
instructions.
Always quote this serial number when
contacting your retailer or Jøtul.
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC
SP
EN
Serial no.
