joule DIRECT - Page 12

unvented hot water cylinders
installation and maintenance instructions
Page 12 / 17

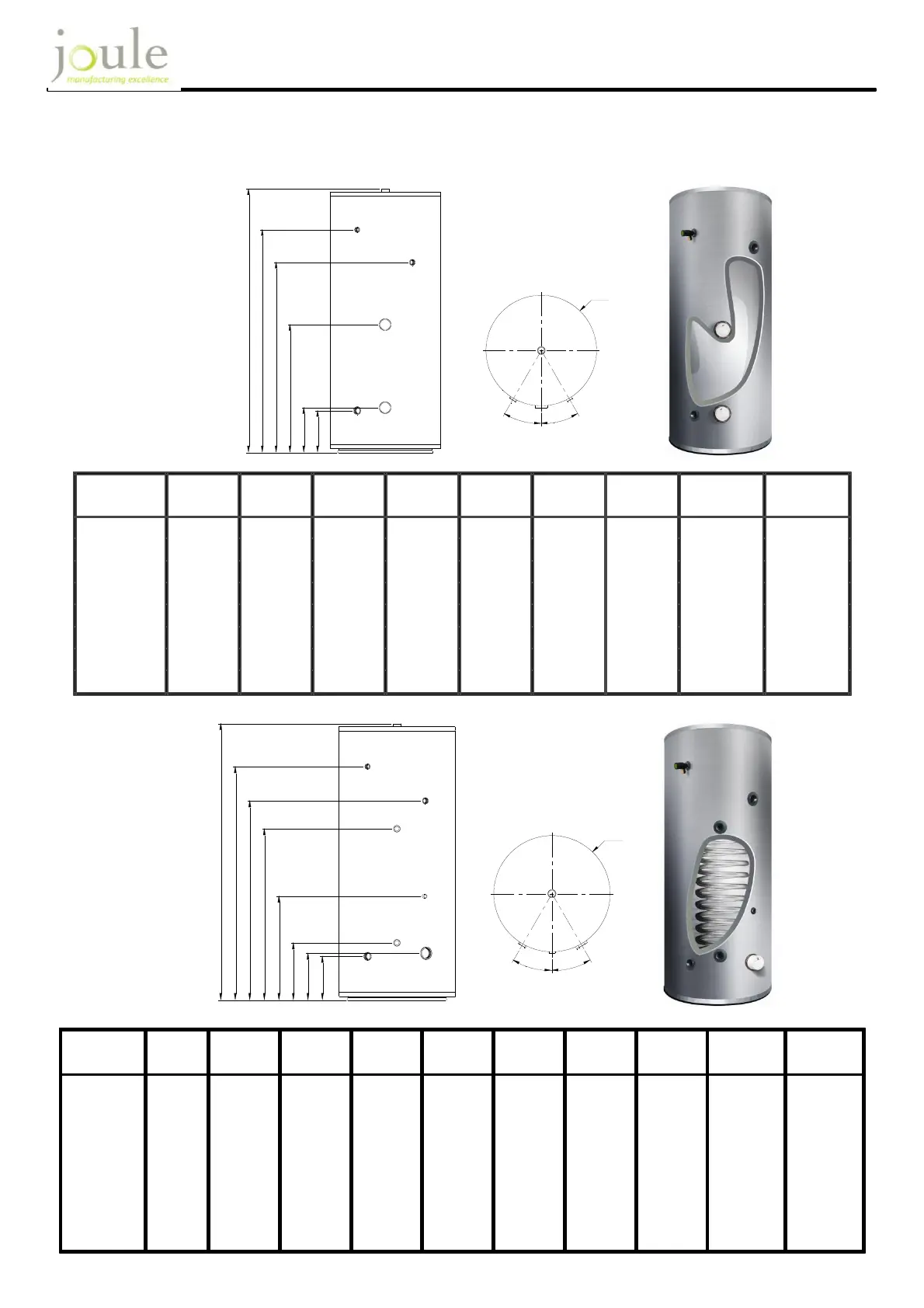

Technical Specifications:
Direct no coil.
Capacity
[L]
A
[mm]
ØB
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
G
[mm]
Weight
Empty[kg]
Weight
full[kg]
125 950 500 745 645 190 205 505 28 153
150 1110 550 905 780 190 205 555 32 182
170 1205 550 1025 875 190 205 625 34 204
200 1110 600 878 763 213 228 648 36 236
250 1360 600 1128 963 213 228 648 45 295
300 1560 600 1326 1148 213 228 728 49 349
400 1570 710 1300 1200 235 250 750 64 464
500 1880 710 1650 1450 235 250 850 77 577
Indirect with one coil.
Capacity
[L]
A
[mm]
ØB
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
G
[mm]
H
[mm]
Weight
Empty [kg]
Weight
Full [kg]
125 950 500 745 645 190 205 259 545
32 157
150 1110 550 905 780 190 205 255 545
36 186
170 1205 550 1025 875 190 205 255 545
38 208
200 1110 600 878 763 213 228 278 598
42 242
250 1360 600 1128 963 213 228 278 828
51 301
300 1560 600 1326 1148 213 228 278 828
55 355
400 1570 710 1300 1200 235 250 300 975
73 473
500 1880 710 1650 1450 235 250 300 1140
88 588
E
C
A
D
3
0
°
3
0
°
Ø
B
F
G
E
C
A
D
3
0
°
3
0
°
Ø B
F
G
E
C
A
F
D
H
G
I
3
0
°
3
0
°
Ø B
E
C
A
F
D
H
G
I
3
0
°
3
0
°
Ø B
