Joy-it DSO-138 - Page 4

Ausgabe 18.01.2017 Copyright by Joy-IT 4
2. Usage
The DSO-138 oscilloscope is ready to use and does‘t need any further conguraons.

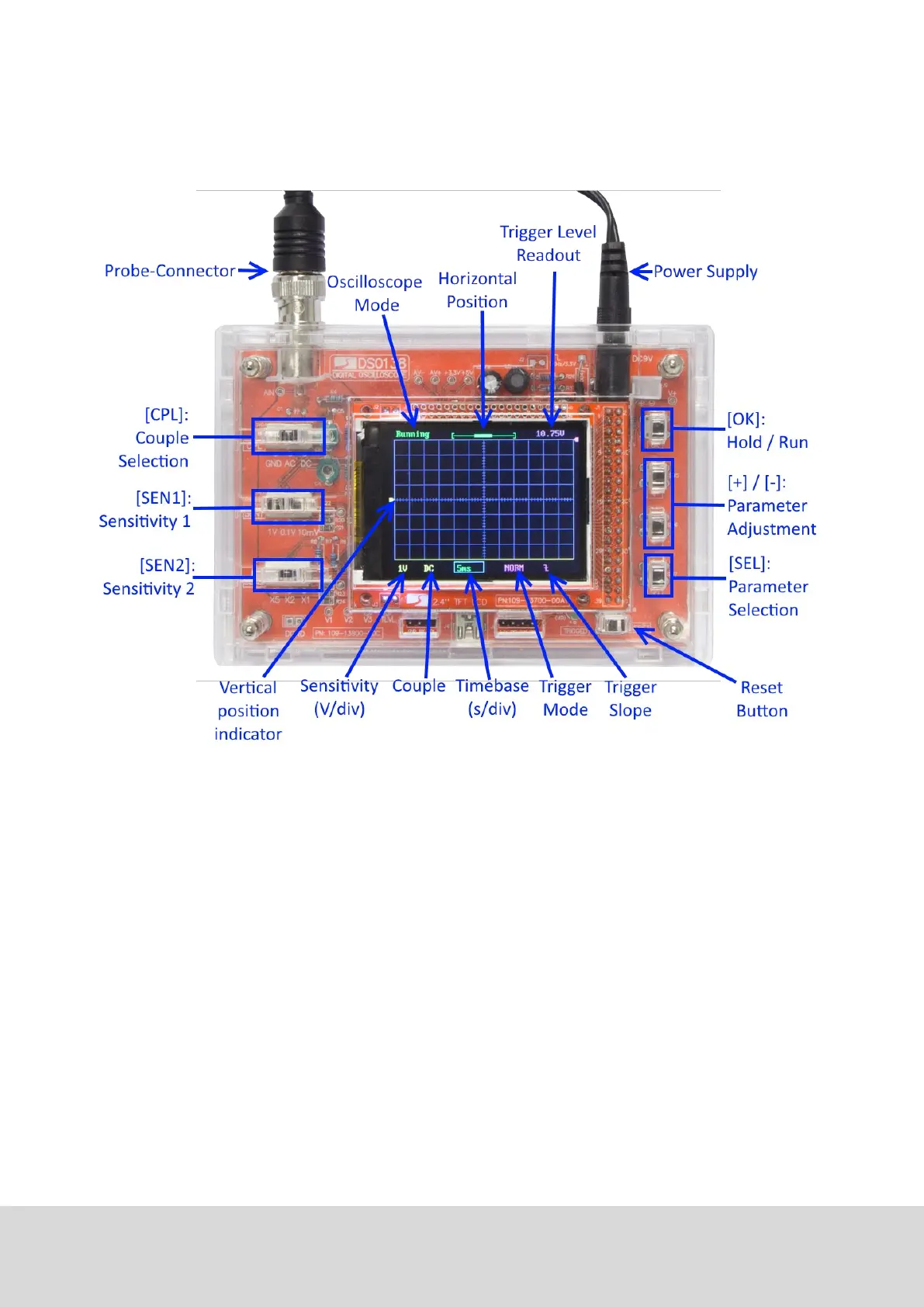

Please note the connecon-diagram below:
[CPL]: Switch between zwischen AC, DC und GND
[SEN1]: rst sensivity seng
[Sen2]: second sensivity seng
[OK]: Stop current view
[+] / [-]: Congure the [SEL] parameter
[SEL]: choose parameter
