JOYEE M800 - Page 14

14
PEGASUS / TYPICAL / JOYEE

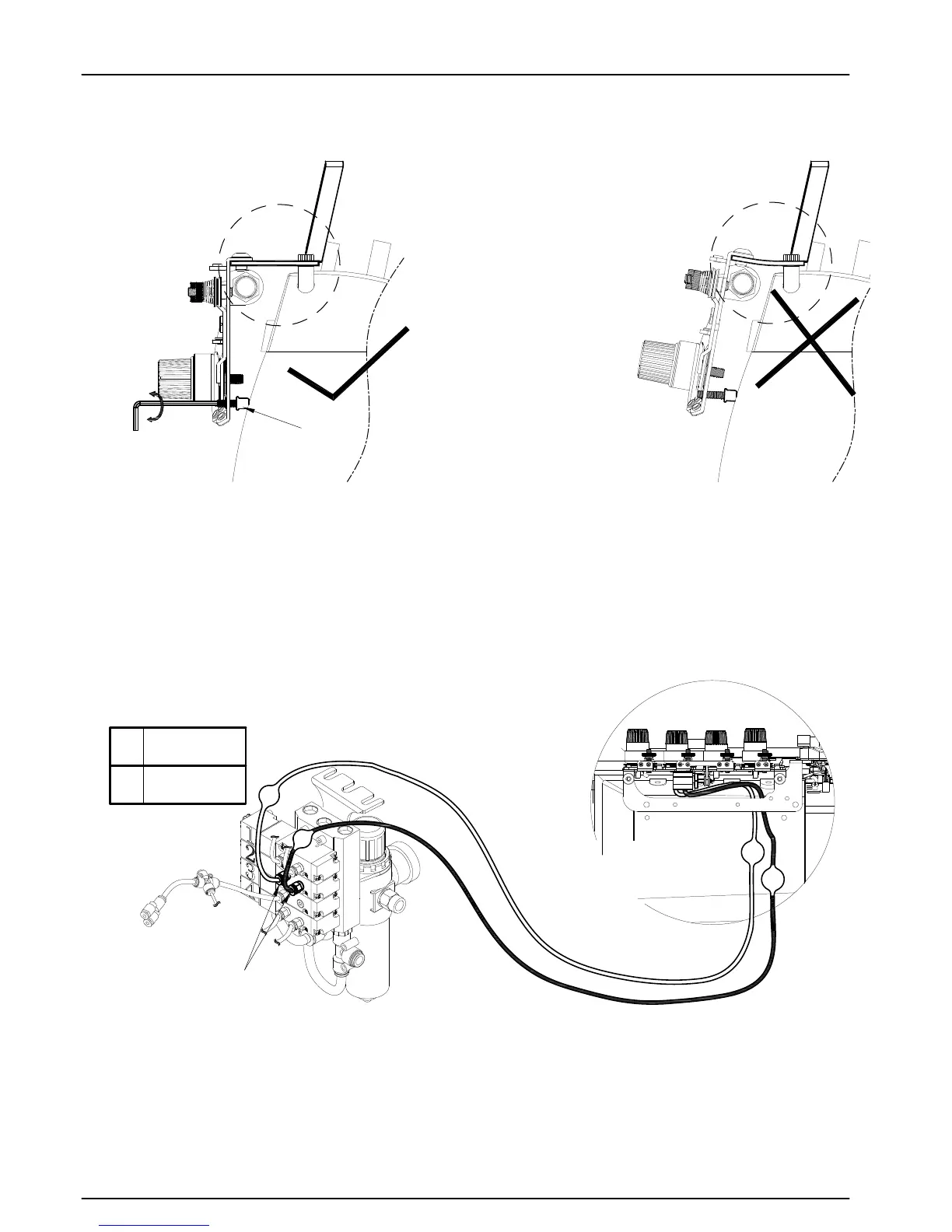

(E)調整無頭螺絲至碰到機頭
將無頭螺絲轉至靠到機頭
(F)將鬆線風管接上氣閥
黑色Black
※鬆線上視圖
Adjust the headless screw till it touched the machine head.
Turn the headless screw till it touched the machine head.
Connect the air tube of thread tension regulator to the valves.
Vertical view of thread
tension regulator.
輕鎖
G
G
黑色Black
4x2.5-1000
∅
Tighten it lightly
M
黑色Black
4x2.5-1000
∅
M
G
M
注意風管所接的位置
