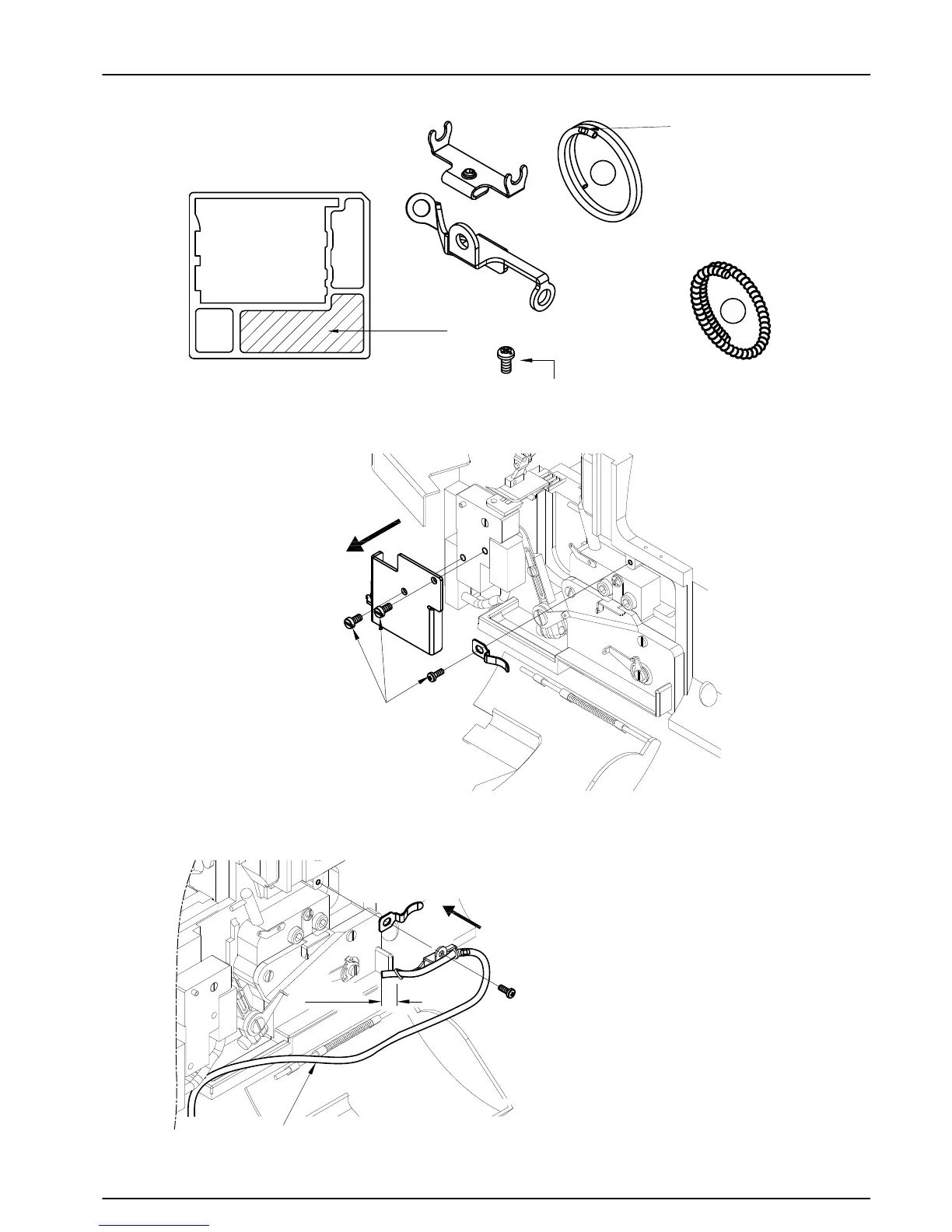

(六)安裝風管座
(A)將原廠零件拆下
(B)將風管座裝上
7mm
①先將透明
∅
4x2.5-1000軟管裝上風管座
原廠螺絲
②將風管座鎖上
透明Clear
4x2.5-1000*1
∅
Install the air tube bracket
Disassemble the original parts.
Install the air tube bracket.
Original screw
Tighten the screw on the air tube bracket.
流量塞頭
plug of air-control
(A箱)(BOX A)
Firstly install the 4x2.5-1000
∅
clear color of air tube on the bracket.
H
原廠螺絲 / M700和GN2000使用本廠螺絲。
M4x8
用於M700和GN2000
Using for M700
and GN2000.
Original screw. Please use our screw if
it's for M700 and GN200.
I
11x8-400*1
∅
塑膠螺紋軟管
Plastic threaded hose
