JOYEE M800 - Page 16

16
PEGASUS / TYPICAL / JOYEE

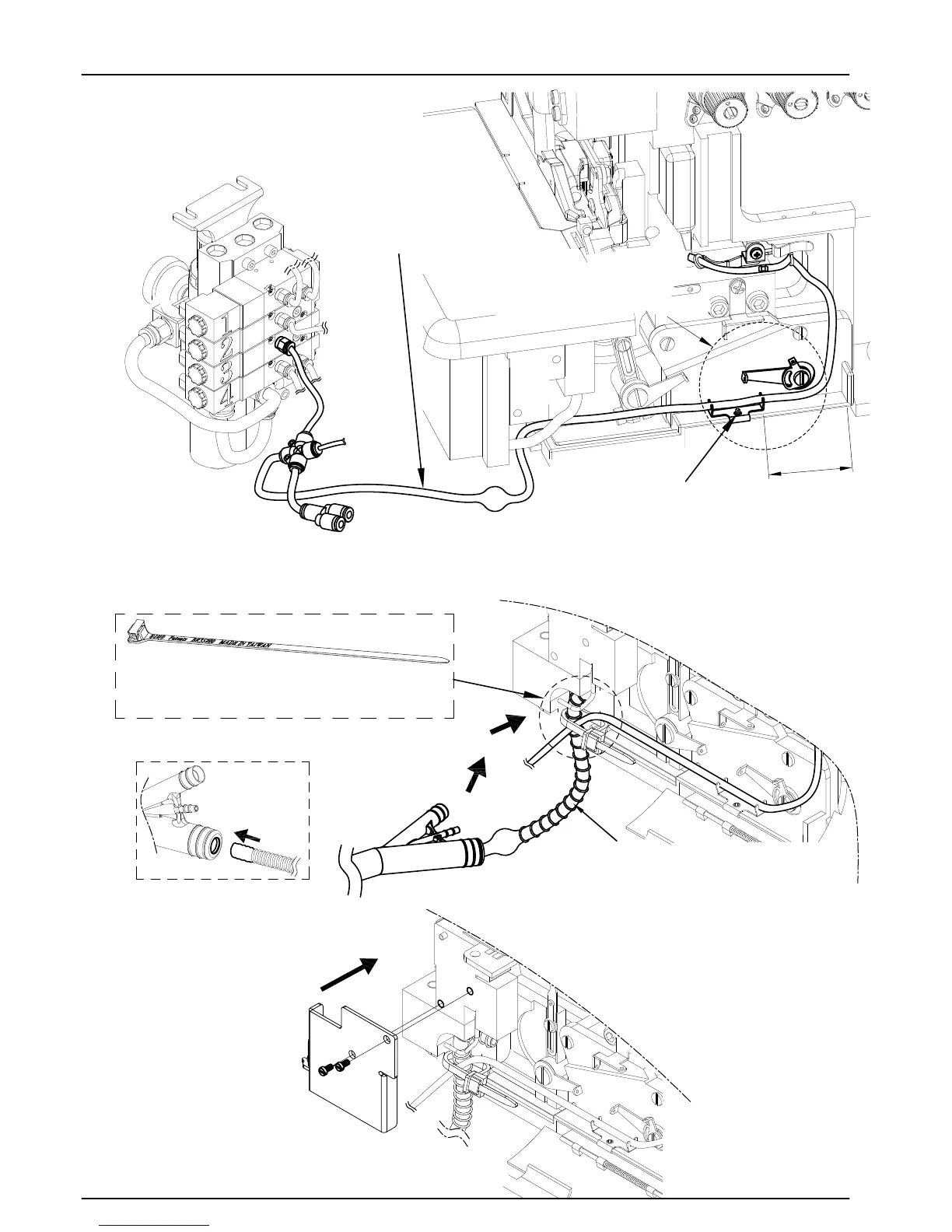

(C)將風管夾裝上
①M3x3螺絲風管夾,夾上機頭後鎖緊
②裁縫車運轉時不可觸碰到軟管
③將透明
∅
4x2.5-1000軟管
接上氣動組
(D)將風管插入，萬用繩固定
風管用萬用繩固定
將塑膠螺紋軟管
∅
11x8-400
放入圖面位置
Install the tube clip
Insert tube and fix by universal tie
Fix the air tube by the universal tie.
Connect 4x2.5-1000 clear
∅
color of air tube on the valve.
Install M3x3 screw tube clip on the
machine then tighten it.
Setting 11x8-400 Plastic threaded hose
∅
of air tube following the diagram.
將原廠零件裝回
(E)裝回原廠零件
Reinstall the original part.
Reinstall the original part.
①
②
約4
1
m
m
H
I
The tube do not touch the parts
as following point during operation.
※注意將熱縮套管那頭插入
Noticed: The heat shrinkable tube insert the pipe.
