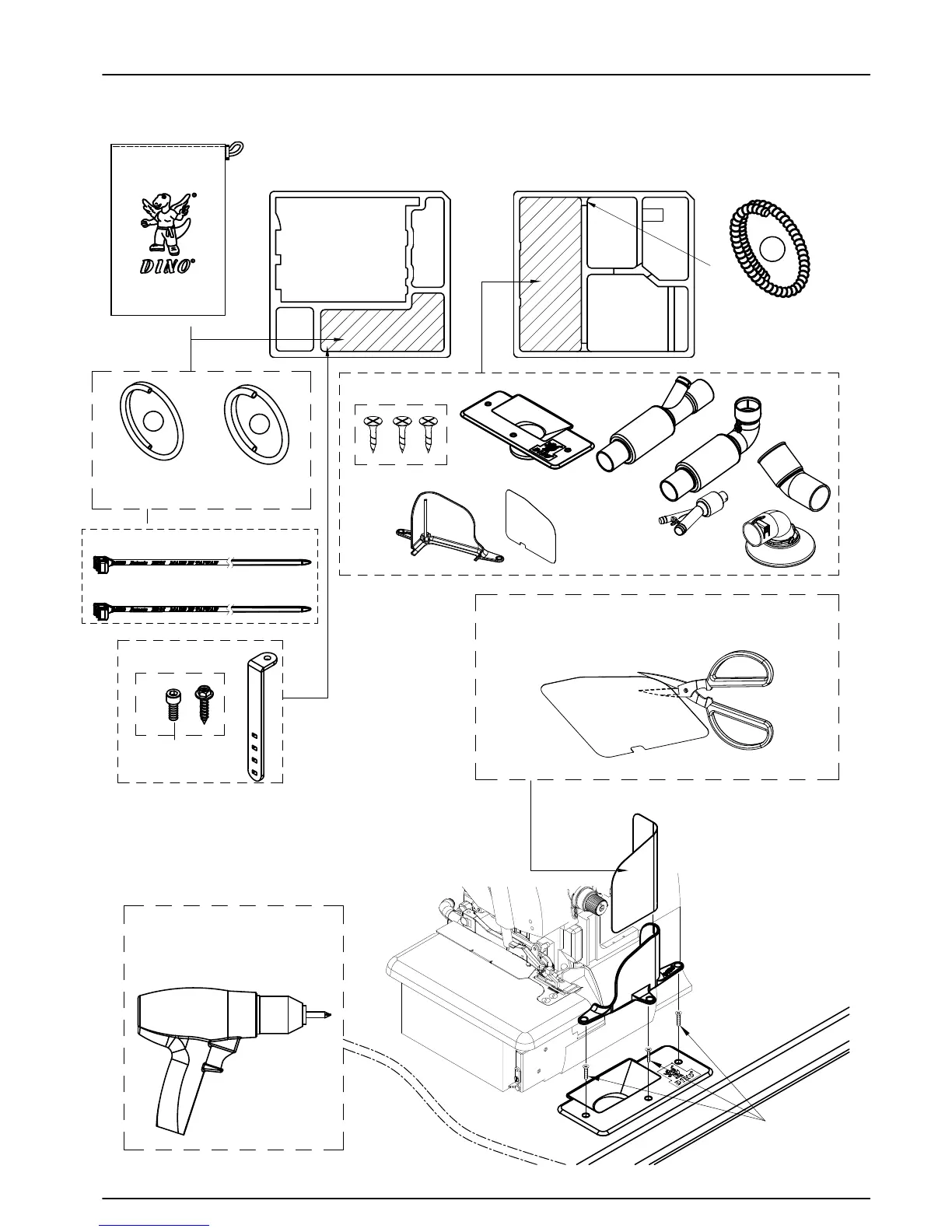

(七)安裝吸棉屑組
6#X5/8
建議使用電動工具
(A)先將漏斗安裝上
(B箱)(BOX B)(A箱)(BOX A)
Install the frame pipe and tube
黑色Black
6x4-600*1
∅
黑色Black
6x4-600*1
∅
Firstly install the funnel
J
K
可依個人需求修剪其外型。
To trim exterior appearance according to
6#X5/8
萬用束帶200mm universal tie*8
萬用束帶300mm universal tie*2
L
personal demand.
∅
3分半x1.5-750*1
塑膠螺紋軟管
Plastic threaded hose
Note: Use electric
tool to be better.
