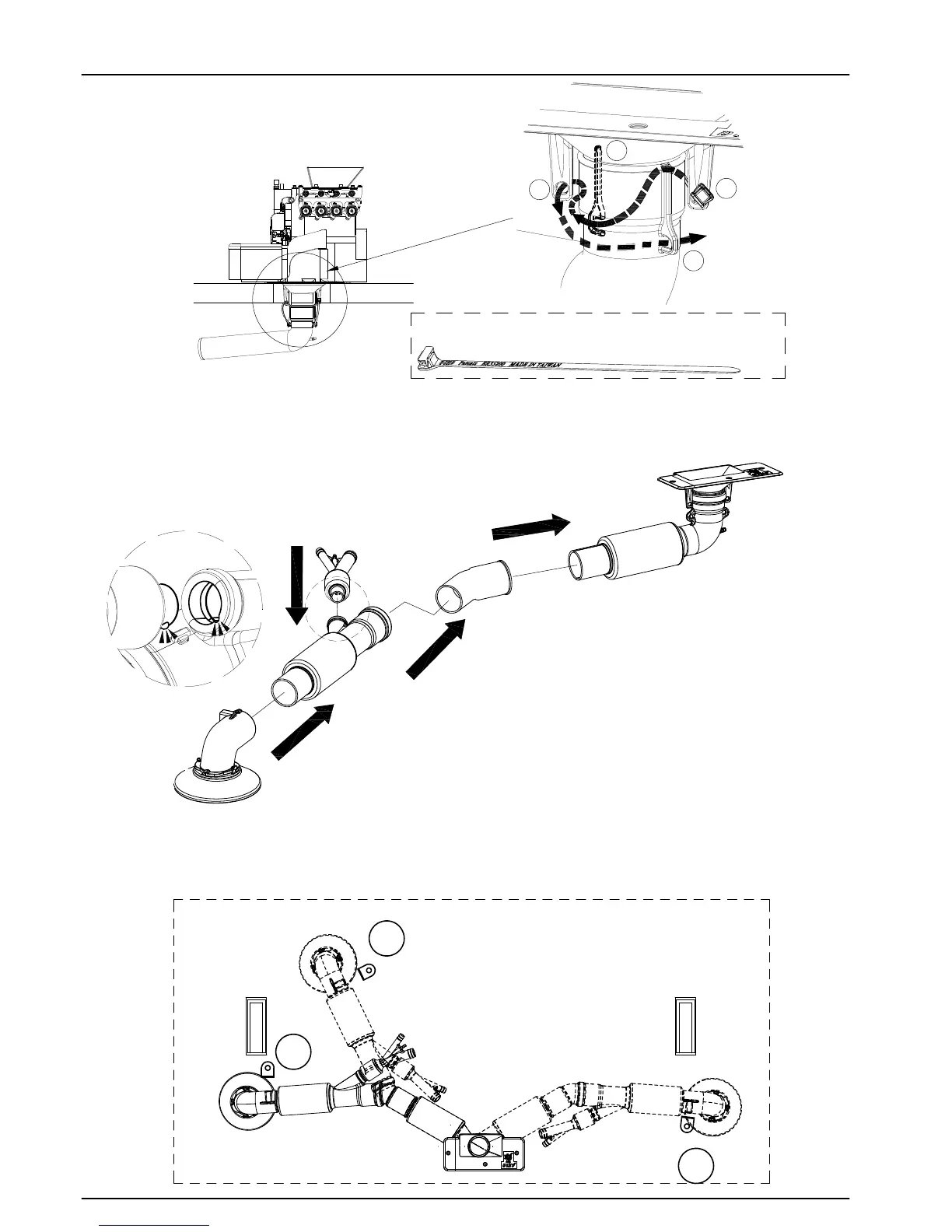

(B)將下風管安裝上
下風管用萬用束帶300mm固定
Install the lower pipe
Fasten the lower pipe by a 300mm universal tie.
1
2
3
4
(C)將Y型風管裝上下風管和轉接管
Connect Y-pipe with other tube.
(D)風管安裝位置可依個人需求調整
The position of air pipe is adjustable according to personal demand.
A
B
C
Y型風管須對齊定位柱，推到底部，旋轉即可固定。
Y-pipe is aligned to the location column and push to the bottom.
The Y-pipe fixed by turning.
