Joyner Renegade R2 - Electrical Winch Kit of R2 and R4

261 / 278

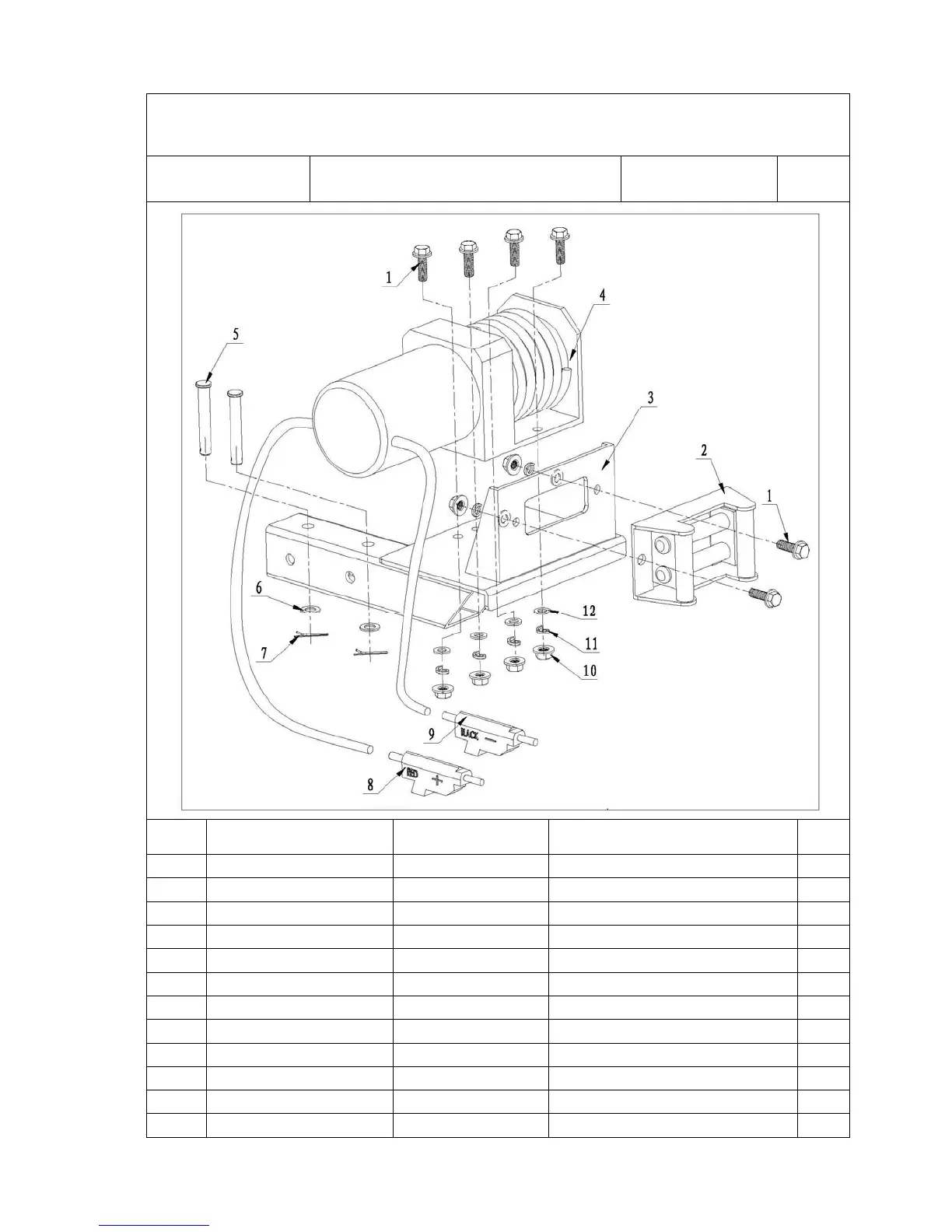

4.15 Electrical winch kit of R2 and R4
ERP CODE/KIT NO. 02.S800.10.1700/S800.10.17.00.00-R2 VEHICLE MODEL R2/R4
Ref ERP Code Part No. Part Description Qty
1 03.01.5787-M8x25/05 5787-M8x25 Flange bolt M8x25 6
2 02.S650.06.12.0003 S650.06.12.00.03 Wire cable guide 1
3 02.S800.01.0800 S800.01.08.00.00-R2 Mount of electrical winch 1
4 02.S650.06.12.01A S650.06.12.01.00A Electrical winch 1
5 03.07.882-10x70/05 882-10x70 Pivot pin 10x70 2
6 03.03.95-Ø10x20x1,5/05 95-Ø10 x20x1.5 Flat washer ØØ10 x20x1.5 2
7 03.08.91-Ø3,2x30/05 91-Ø3.2x30 Cotter pin Ø3.2x30 2
8 02.S650.06.14.01 S650.06.14.01.00
Express connection-peg(Red)）
1
9 02.S650.06.14.01 S650.06.14.01.00 Express connection-peg(Black) 1
10 03.02.6183,1-M8/05 6183.1-M8 Self locking nut M8 6
11 03.04.93-Ø8/05 93-Ø8 Spring washer Ø8 6
12 03.03.95-Ø8 x16x1,5/05 95-Ø8 x16x1.5 Flat washer Ø8x16x1.5 6
