① Compressor cooling hole
② Power interface
③Three-level switch for battery protection
④ Fuse
⑤ Handle
⑥ Digital touch screen control panel
⑦Seal rubber ring
⑧ Refrigerator cabinet
Note: on the condition when the car refrigerator connects to the power and starts, OFF or ON refers
to the OFF or ON of the compressor.
Factory default voltage protection level sets to H level
12V
H high levelM medium levelL low level
11.3V OFF, 12.5V ON10.1V OFF, 11.4V ON9.6V OFF, 10.9V ON
24.6V OFF,26V ON22.3V OFF,23.7V ON21.3V OFF,22.7V ON
24V
Car Refrigerator Operation

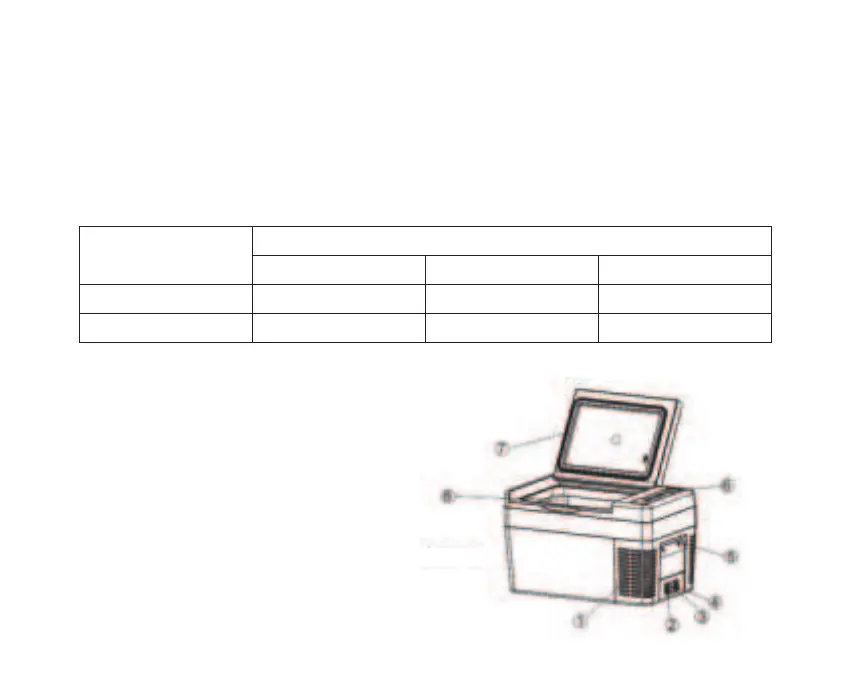

Parts schematic
Car battery protection voltage reference
Built-in ECO electronic control module can automatically monitor the car battery voltage, Before the
power consumption to affect the normal ignition of the car, the car refrigerator will automatically
disconnect the power, In that way ensure that the car battery power will not be consumed too low
and affect the normal ignition of the car.
Voltage
03
To Next Page
