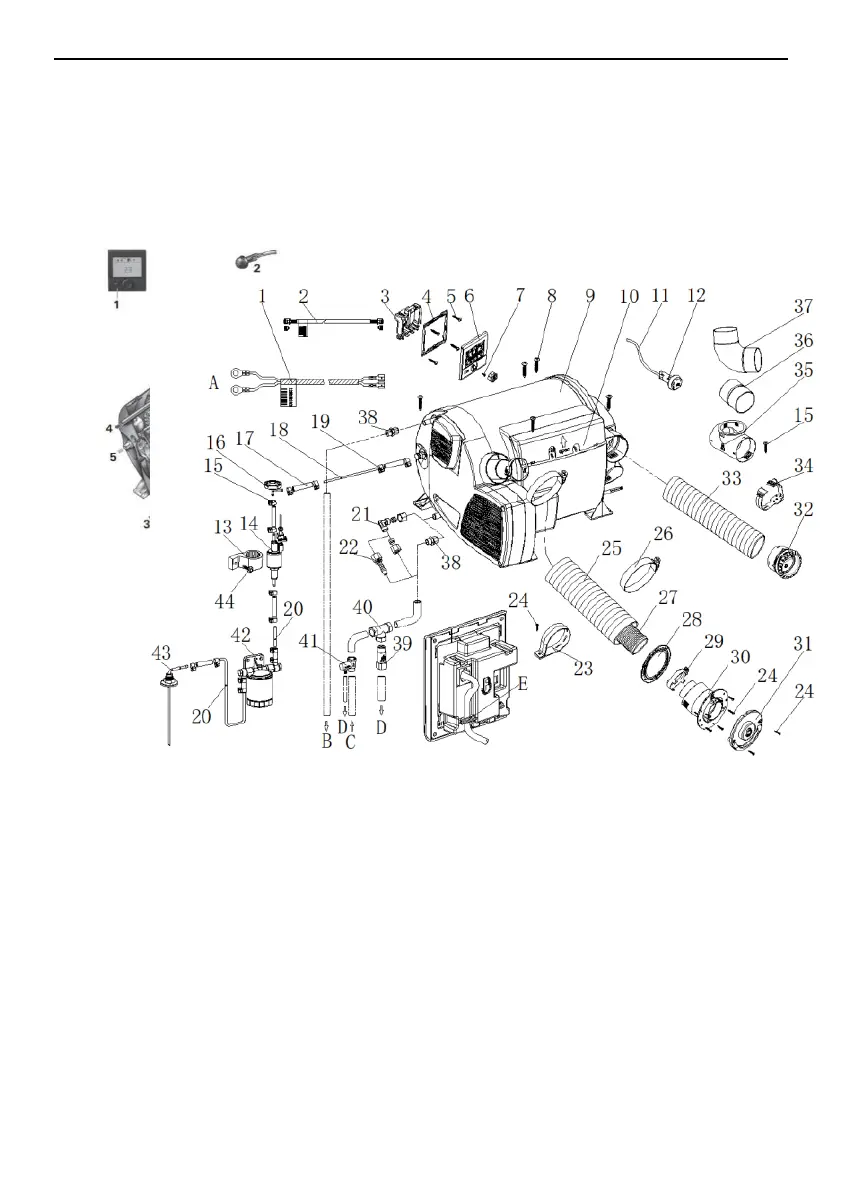

1. 12V Power cord 2. LCD switch Lead wire 3. LCD switch back cover 4. LCD switch bracket 5. Cross head self-tapping nail M3*10
6. LCD control switch 7. Cross countersunk head flat tail self-tapping nail M3*6 8. Cross head self-tapping ST5*25
9. Heater 10. Controller cover 11. External temperature sensor lead wire 12. External temperature sensor 13. φ8 Elbow transition fitting
14. Fuel pump 15. Fuel pump clamp 16. damper 17. Fuel connection clamp 18. Fuel lie(heater to pump, transparent)
19. Fuel pump clamp ( φ8-10) 20. Nylon fuel line (Blue, from pump to tank) 21.φ10 Steel Hose(water) transition fitting
22. Soft Hose(water) transition fitting 23. Intake pipe mounting clamp 24. Cross pan head tapping screw ST3.5×25 25. Air intake pipe
26. German type clamp 27. Exhaust pipe 28. Sealing rubber spacer 29.(Exhaust pipe) clamp 30.Intake and exhaust combine cowl 31.Intake
and exhaust combine cover 32.Air outlet 33.Hot air tube 34. Bellows buckle 35. φ60 T-fitting 36.φ60 connecting pipe
37. φ60 elbow fitting 38. 38_G1/2-φ10 ferrule connector 39 antifreeze valve 40_G1/2 three links 41_pressure reducing valve
42_fuel filter 43_ suction pipe combination 44_Self-tapping self-drilling nail ST5.5*30
A-connect to 12V Battery B- connect to access to water equipment C-connect to system water tank D-Dispatch outside the vehicle
