J+J J3C User Manual

Page 2 of 18

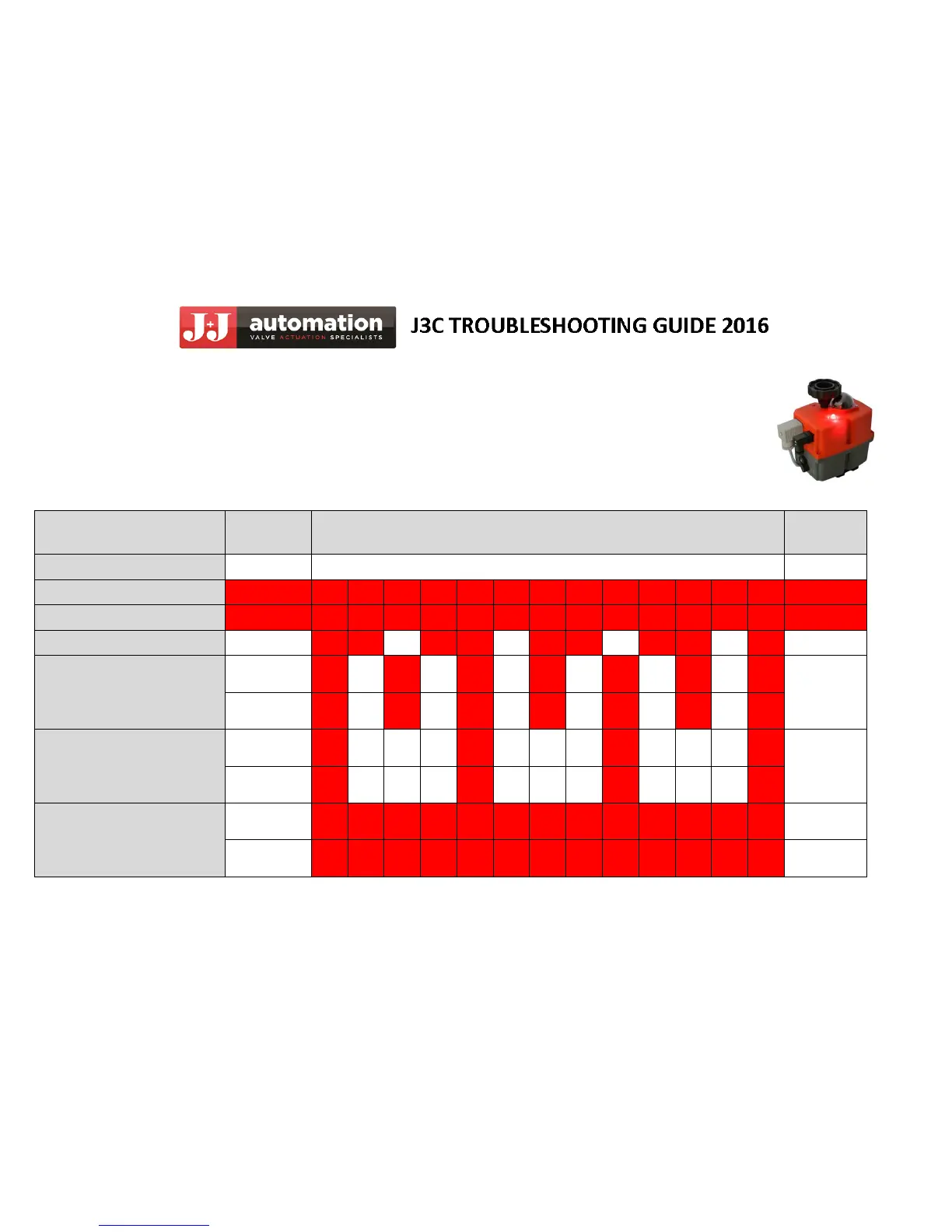

LED Status Light - using it as a diagnostic tool:
The LED is provided as standard to give users a continuous visual feedback of the functional status of the actuator.
• If the LED is not lit the actuator is not receiving, or seeing external power at the grey DIN (power) plug.
• If the LED is solidly lit, the actuator has power applied and is/ should be ready to respond to remote commands.
• If a problem exists and the actuator does not respond to remote commands, the sequence and colour of the blinking gives an indication of the possible cause.
END OF
TRAVEL
MOVING
END OF
TRAVEL
NO POWER APPLIED
OPEN SIGNAL APPLIED
CLOSED
OPEN
CLOSE SIGNAL APPLIED
OPEN
CLOSED
IN MANUAL (MAN)
TORQUE LIMITED ACTIVATED
With closed
signal applied
With open signal
applied
BATTERY FAILSAFE ENGAGED
If configured fail
closed
Stops after
around 3
minutes
If configured fail
open
MODULATING FUNCTION
With closed
signal applied
OPEN
With open signal
applied
CLOSED
