HANDBOOK / J4C SERIES

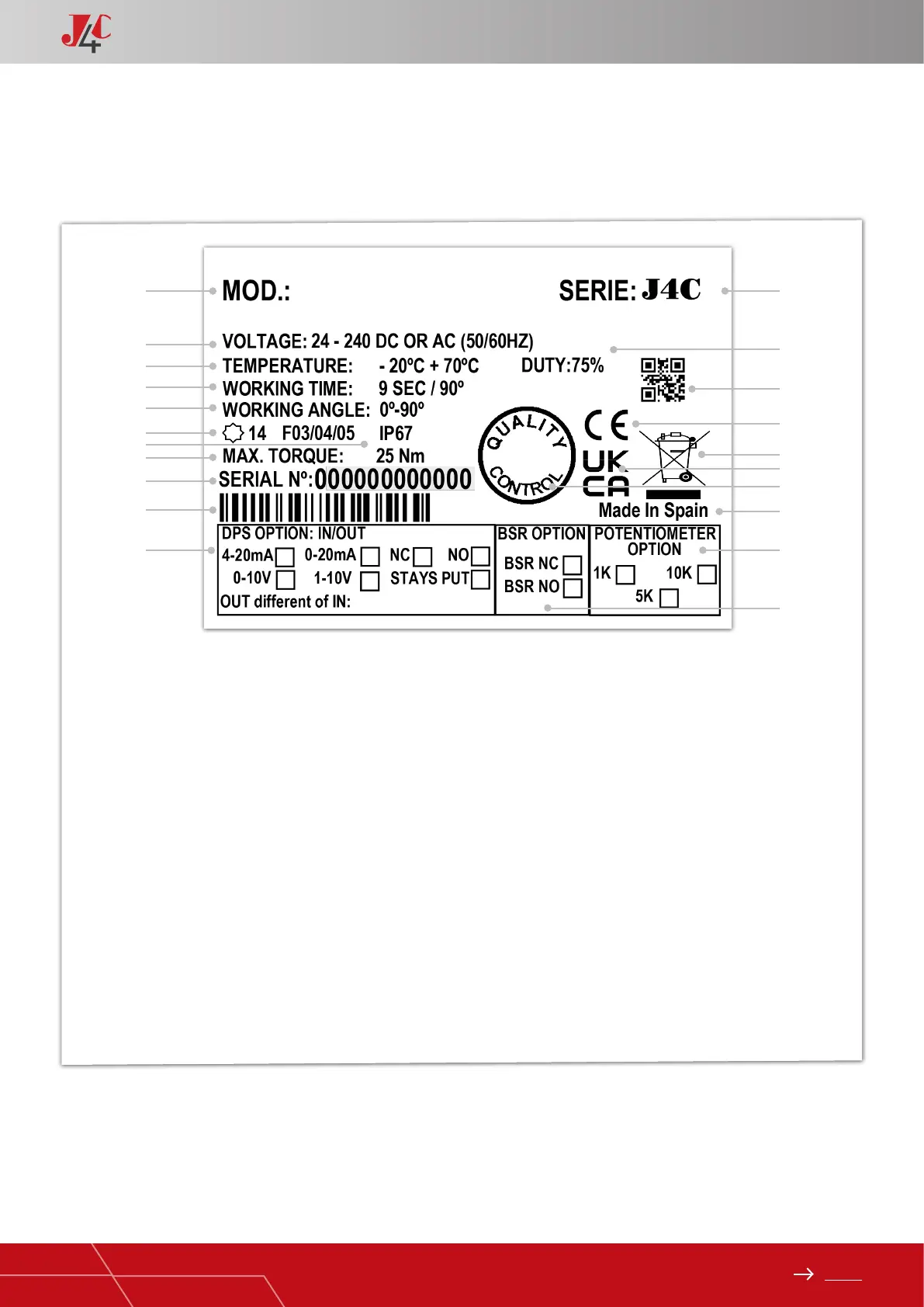

ID ACTUATOR LABEL
1. Actuator Model.
2. Voltage to be connected.
3. Actuator ready to bear between -20ºC / +70ºC.
4. Time the actuator needs to run to the indicated
degrees.
5. Working angle.
6. Plate to x the valve to the actuator, following
ISO 5211.
7. Actuator with the IP67 protection.
8. Maximum operational torque.
9. Actuator serial number.
10. Bar code of the serial number.
11. Actuator series.
12. Duty: 75%. Example: S20 Model -
Maneuver time = 10 sec.
Time between maneuvers = 3.3 sec.
13. QR code for manufacturing.
14. Actuator with CE certicate.
15. This product should not be disposed of as
unsorted waste.
16. UK Conformity Assessed.
17. Quality Control Conformity.
18. Country where the equipment was
manufactured.
19. DPS options.
20. POTENTIOMETER options.
21. BSR options.
1
11
12
13
14
15
16
17
18
20
21
2
3
4
5
6
7
8
9
10
19
