J4C 85 - GENERAL CHARACTERISTICS
Technical Data
Operation time unload 29 Sec. /90º
Maximum torque break 90 Nm / 796,3 lb/in
Maximum operational torque 85 Nm / 752 lb/in
Duty rating 75%
Max. Working angle 0º to 270º
Limit switch 4 SPST NO micro (2 motor stop and 2 conrmations)
Automatic heater 3,5 W
Big Plug EN 175301-803 FORM A
Small Plug DIN43650/C
Protection IEC 60529 rating IP67
Temperature -20ºC +70ºC / -4ºF +158ºF
ISO 5211 Plate Standard: F05/F07
DIN 3337 Female output drive Standard: *17 Optional: *14mm
Weight 2,84 kg
Options
J4C 20/85 DPS KIT digital positioner 4-20mA, 0-20mA, 0-10V or 1-10V
J4C 20/85 BSR KIT emergency fail safe kit system by battery NC - NO
Potentiometer 1K, 5K or 10K
3 position actuator 0º-45º-90º or 0º-90º-180º
Electronic Data
Electronic Torque Limiter function
Electric motor 24VDC Brushless
motor
Insulation Class B
(IEC 60034)
Service
S4
Voltage VDC/VAC 50/60Hz-0/+5%
S85 24-240 VDC/VAC
B85 12 VDC/VAC ONLY
Materials Standard Optional
Body Anticorrosive Polyamide, Grey colour Polypropilene V0, Black colour
Cover Anticorrosive Polyamide, Red colour Polypropilene V0, Natural colour
Output drive Zamak, Zinc plated Zamak, TEFLON coated
Flange Aluminum and Cataphoresis Aluminum and TEFLON coated
Main external shaft Stainless Steel -
External screws Stainless Steel -
Gears Steel and Polyamide -
Visual position indicator Polyamide -
Dome Polycarbonate -
Adjustable internal cams Polyamide -
Note: Technical data are the same despite the different casings.

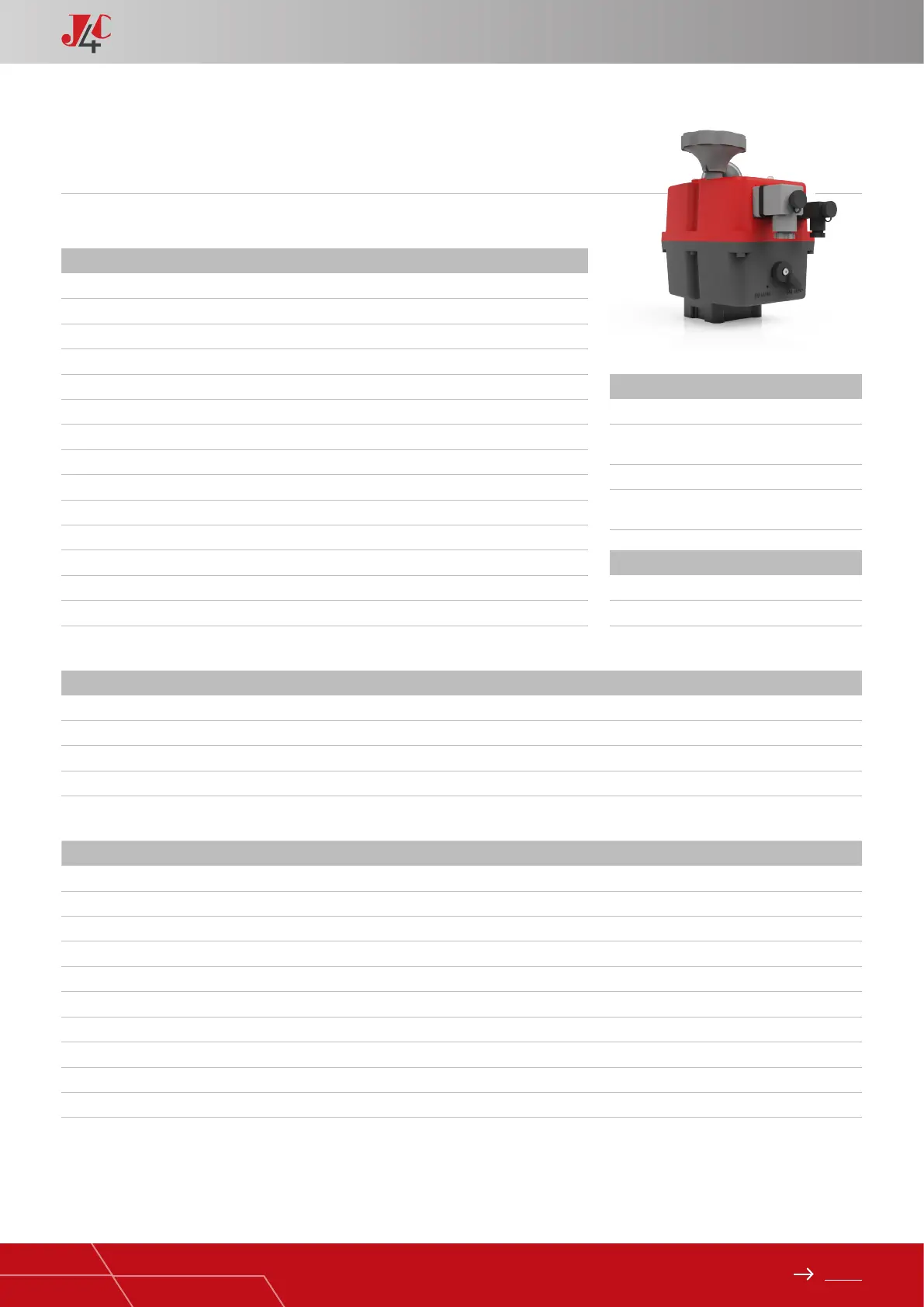

HANDBOOK / DATASHEET J4C 85
