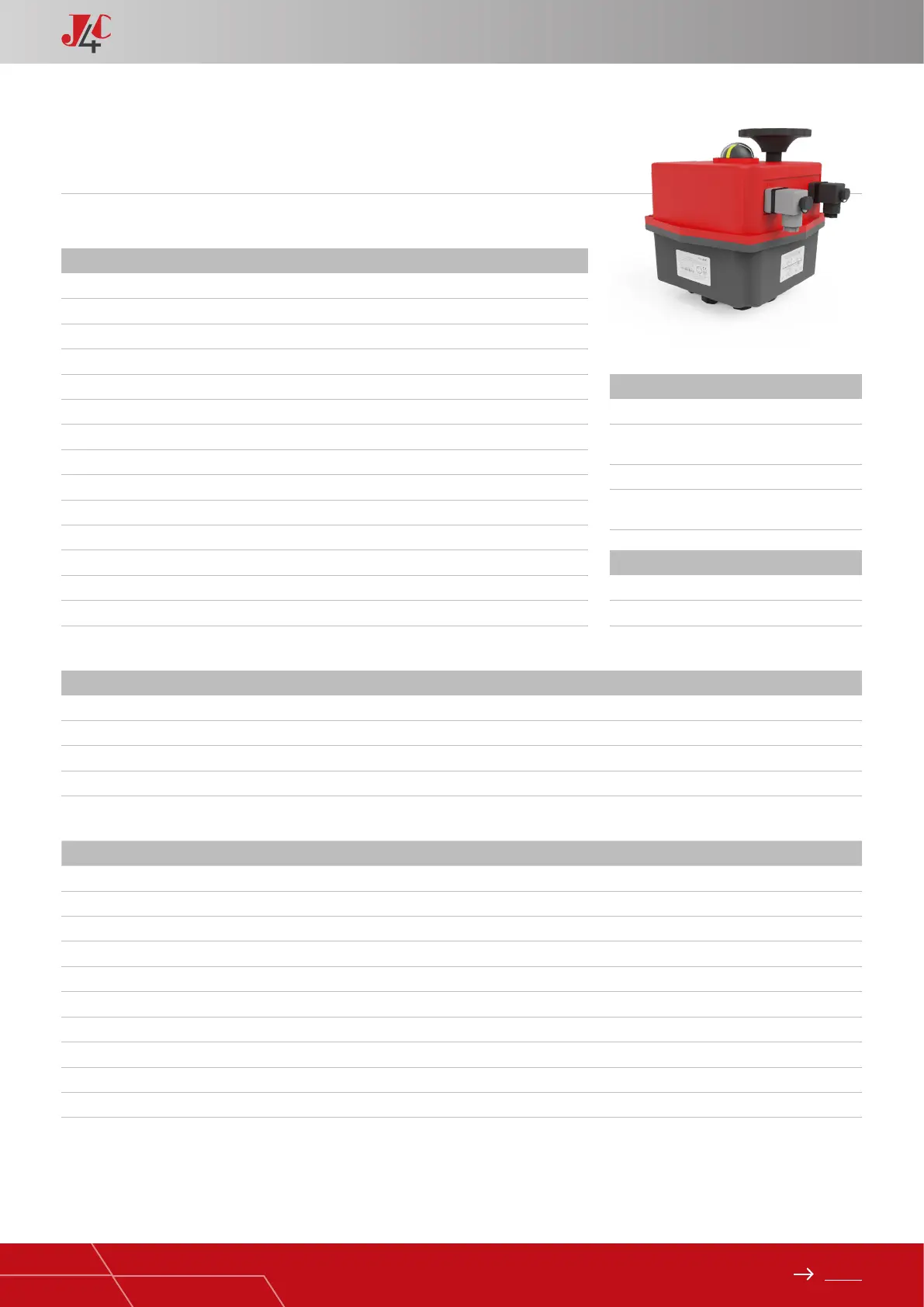

J4C 300 - GENERAL CHARACTERISTICS
Technical Data
Operation time unload 58 Sec. /90º
Maximum torque break 350 Nm / 3097,5 lb/in
Maximum operational torque 300 Nm / 2655 lb/in
Duty rating 75%
Max. Working angle 0º to 270º
Limit switch 4 SPST NO micro (2 motor stop and 2 conrmations)
Automatic heater 3,5 W
Grey Plug EN 175301-803 FORM A
Black Plug DIN43650/C
Protection IEC 60529 rating IP67
Temperature -20ºC +70ºC / -4ºF +158ºF
ISO 5211 Plate Standard: F07/F10 Optional: F12
DIN 3337 Female output drive Standard: *22 Optional: *17mm
Weight 4,72 kg
Options
J4C140/300 DPS KIT digital positioner 4-20mA, 0-20mA, 0-10V or 1-10V
J4C 140/300 KIT BSR emergency fail safe kit system by battery NC - NO
Potentiometer 1K, 5K or 10K
3 position actuator 0º-45º-90º or 0º-90º-180º
Electronic Data
Electronic Torque Limiter function
Electric motor 24VDC Brushless
motor
Insulation Class B
(IEC 60034)
Service
S4
Voltage VDC/VAC 50/60Hz-0/+5%
S300 24-240 VDC/VAC
B300 12 VDC/VAC ONLY
Materials Standard Optional
Body Anticorrosive Polyamide, Grey colour Polypropilene V0, Black colour
Cover Anticorrosive Polyamide, Red colour Polypropilene V0, Natural colour
Output drive Zamak, Zinc plated Zamak, TEFLON coated
Flange Aluminum and Cataphoresis Aluminum and TEFLON coated
Main external shaft Stainless Steel -
External screws Stainless Steel -
Gears Steel and Polyamide -
Visual position indicator Polyamide -
Dome Polycarbonate -
Adjustable internal cams Polyamide -
Note: Technical data are the same despite the different casings.
