HANDBOOK / KIT DPS
Outer Set-Up: Only if necessary.
• B plug - Connect a cable between PIN 1 and PIN Earth.
• A plug - Connect it to the power supply.
• B plug, disconnect the cable between PIN 1 and PIN Earth.
The actuator will make a complete maneuver.
Connect B connector to the actuator. The actuator is ready to
work.
Mount the 3 outer connectors together with its rubber joints and x
them to the cover, by using the screws.
A
B C
PIN1
If the WEEE (Waste Electrical and Electronic Equipment) contains batteries, they must be removed and deposited separately for proper management before being
deposited at the collection facilities. Batteries may contain hazardous substances that can harm the environment and human health if mishandled or disposed
of improperly. Therefore, it is important to deposit them in specic containers for recycling and proper treatment. In some countries, there are selective collection
programs for used batteries in supermarkets, electronic stores, or other establishments.
Num: RII-AEE: 8760
In order to set the actuator up, use the DIPs shown in the picture.
Put DIP 1 in ON position (Fig. A), connect the grey connector to
the power supply (Fig. C). Put DIP 1 back to the prior position (Fig.
B). Wait until the actuator make a complete maneuver.
Use the conguration you need by moving the DIPs, according to
the instrumentation signal:
12
A
B
C

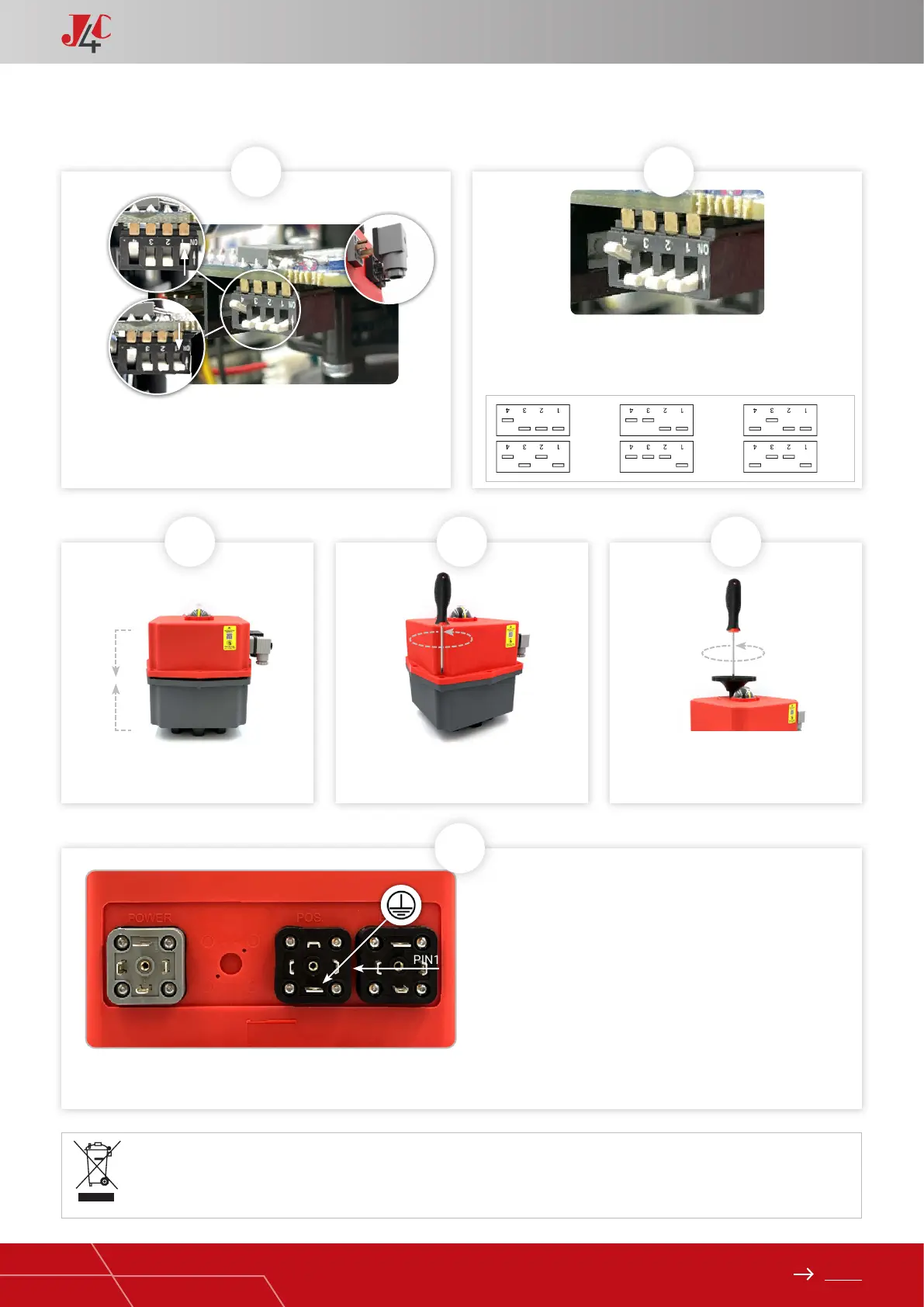

KIT DPS 140/300 ASSEMBLY INSTRUCTIONS — PAGE 3/3
13
Carefully mount the cover, minding the
cables not to be pressed.
Fix the cover to the body by using the 8
screws.
Mount the hand wheel on the shaft and
x it by using the screw.
14 15 16
A
B
PIN1
17
4/20 mA
NC
0/10 V
NC
1/10 V
NC
4/20 mA
NO
0/10 V
NO
1/10 V
NO
