HANDBOOK / KIT BSR
Remove the screw, which is xing the
hand wheel.
Take the BSR PCB (Element A) from the KIT and connect it to the
actuator PCB, by using the connector shown in the picture.
Put the lower battery support (Element B). See (Fig.6A). Fix it by using 2 Sheet metal xing screws (Element E) (Fig.6B & 6C).
Fix it to the actuator metal plate, by using the Sheet metal xing
screw (Element E).
Remove the 6 screws, which are xing
the body to the cover of the actuator.
Carefully lift the cover.
1
4
6
2 3

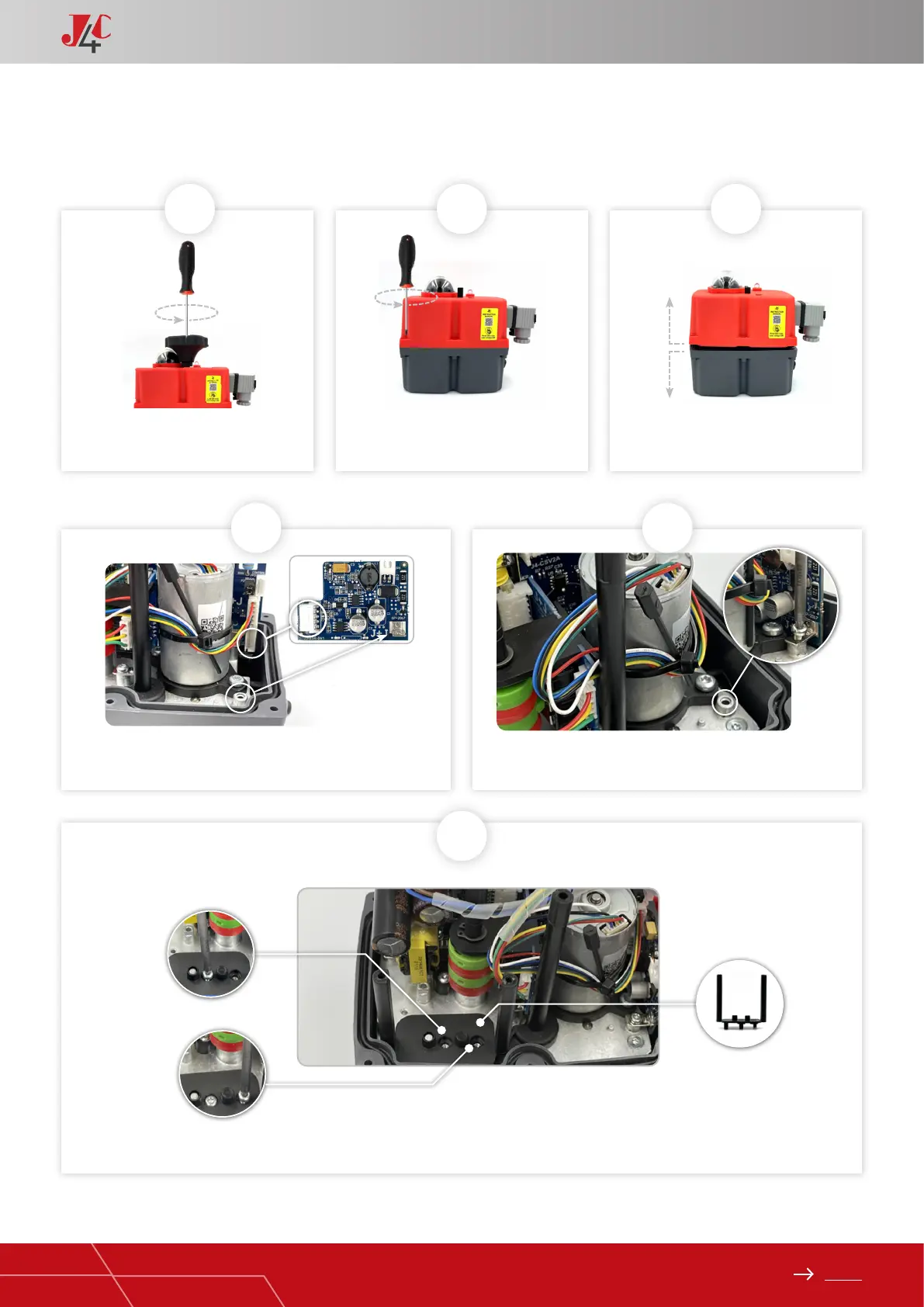

KIT BSR 20/85 ASSEMBLY INSTRUCTIONS PAGE 1/2
5
C
B
A
