Fig. 6 0 = CLOSE
TWO YELLOW INDICATORS:
For 3 way ball valve, L port.
THREE YELLOW INDICATORS:
For 3 way ball valve, T port.
Fig. 6 90 = OPEN

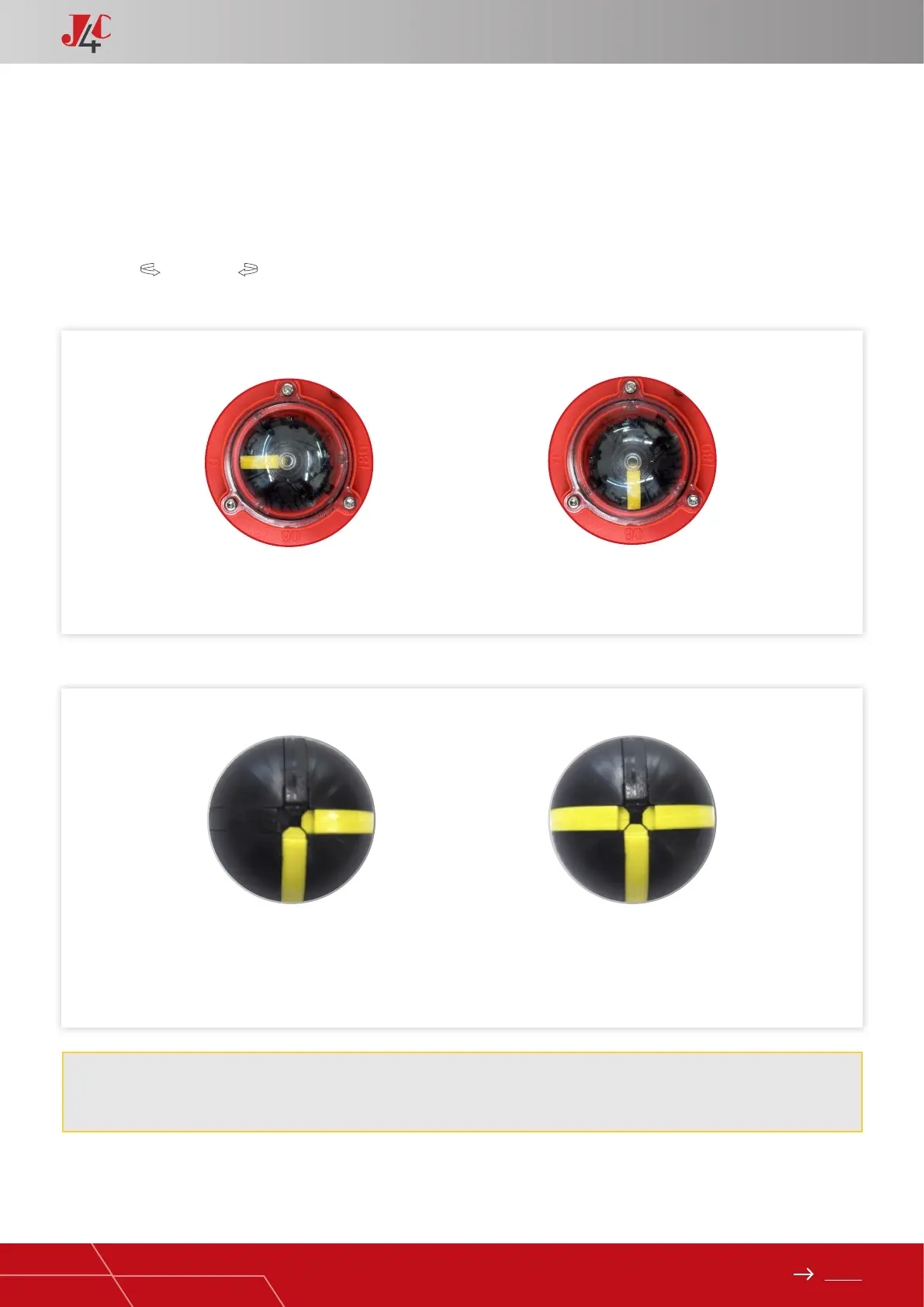

LOCAL VISUAL POSITION INDICATOR
All J4C actuators are supplied with a local visual position indicator comprises a black base with a yellow insert that
shows, both the position and direction of rotation (Fig.6).
The open and close positions have the following logos molded into the top cover OPEN 90 and CLOSE 0.
Opening = Closing =
Position indicators with these 4 inserts are not standard. You can order them, then they come with 2x yellow and 2x black insert
(for “T” you need another yellow indicator)
*
*
*
STANDARD
OPTIONAL
