DPS J4C 20/85

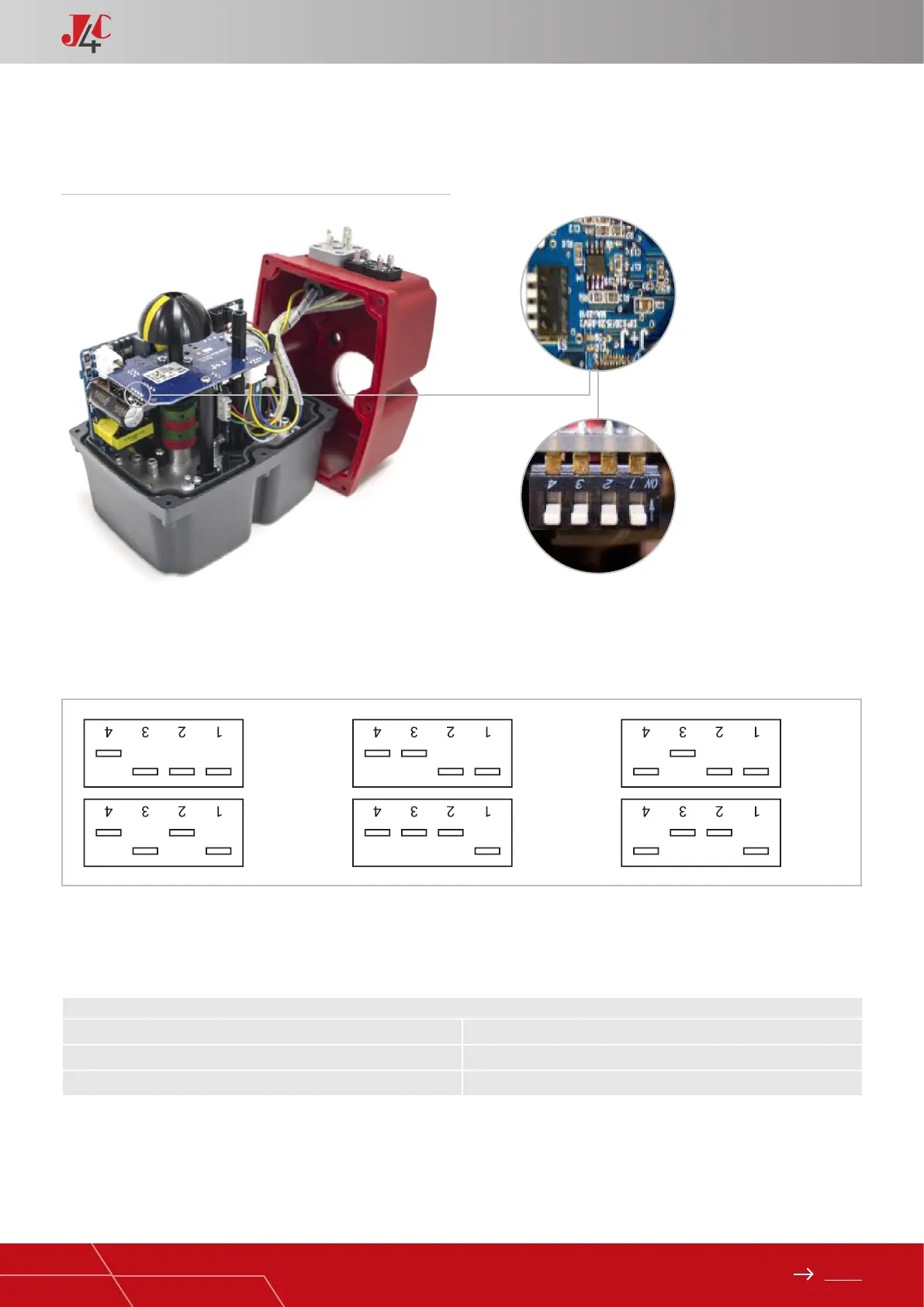

Use the conguration you need by moving the DIPs:
Different possibilities of conguration:
Congurations set up by using DIPs, should have the same Input and Output Signal.
I.e.: If Set up Input signal 4/20mA-Output signal 4/20 mA.
Other possibilities are available to work with, but they should be congurated from the manufacturer.
OTHER OPTIONS TO BE SET-UP BY THE MANUFACTURER OR WITH A J4C INTERFACE
OUTPUT ONLY 4/20 mA, 0/10 V, 0/20 mA, 1/10 V
INPUT & OUTPUT 4/20 mA, 0/10 V, 0/20 mA, 1/10 V
MOTOR STOP, WITHOUT INSTRUMENTATION 4/20 mA, 1/10 V
If need Output signal different from Input signal, please ask the manufacturer.
HANDBOOK / OPTIONS DPS
4/20 mA
NC
0/10 V
NC
1/10 V
NC
4/20 mA
NO
0/10 V
NO
1/10 V
NO
