DPS EXTERNAL SELF-ADJUSTMENT

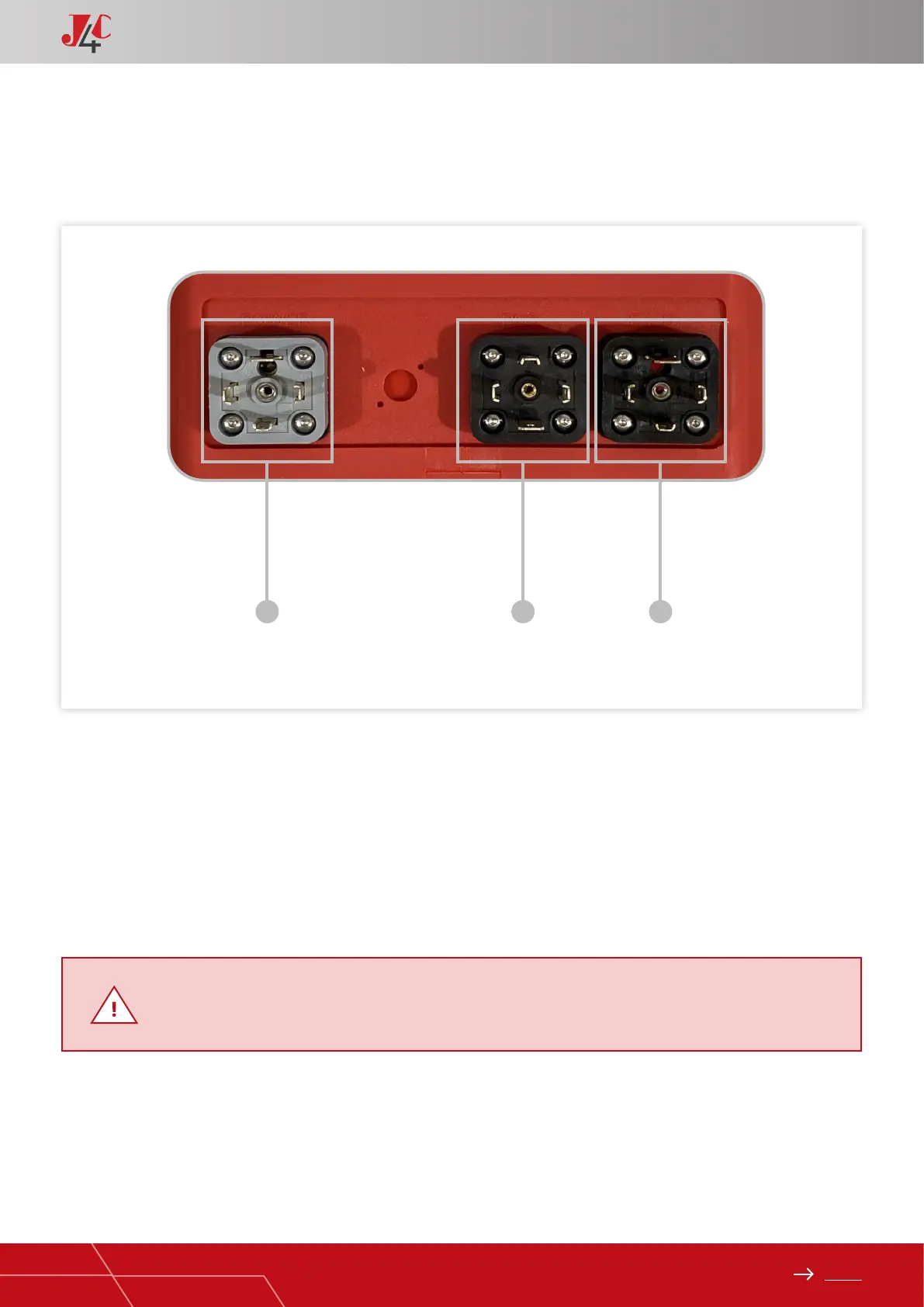

CA B
A- Power supply plug.
B- Volt free contact plug.
C- Input / Output signal (4/20mA,0/10V,0/20mA o 1/10V) plug.
1-C plug - connect a cable between PIN 1 (on the left side) and PIN Earth (on the bottom).
2-A plug - connect:
VAC: PIN1 (neutral) and PIN2 (phase).
VDC: PIN1 (negative) and PIN2 (positive).
3-B plug - disconnect the cable between PIN 1 (on the left side) and PIN Earth (on the bottom).
The actuator will make a complete maneuver and stay in the close position.
The actuator is ready to connect the (4/20 mA, 0/10 V, 0/20 mA o 1/10 V) signal to the B plug
HANDBOOK / OPTIONS DPS
Very important: before connecting “A” plug to the actuator, check that the voltage is the same as
the one specied on the label (carter).
