HANDBOOK / KIT INTERFACE
3

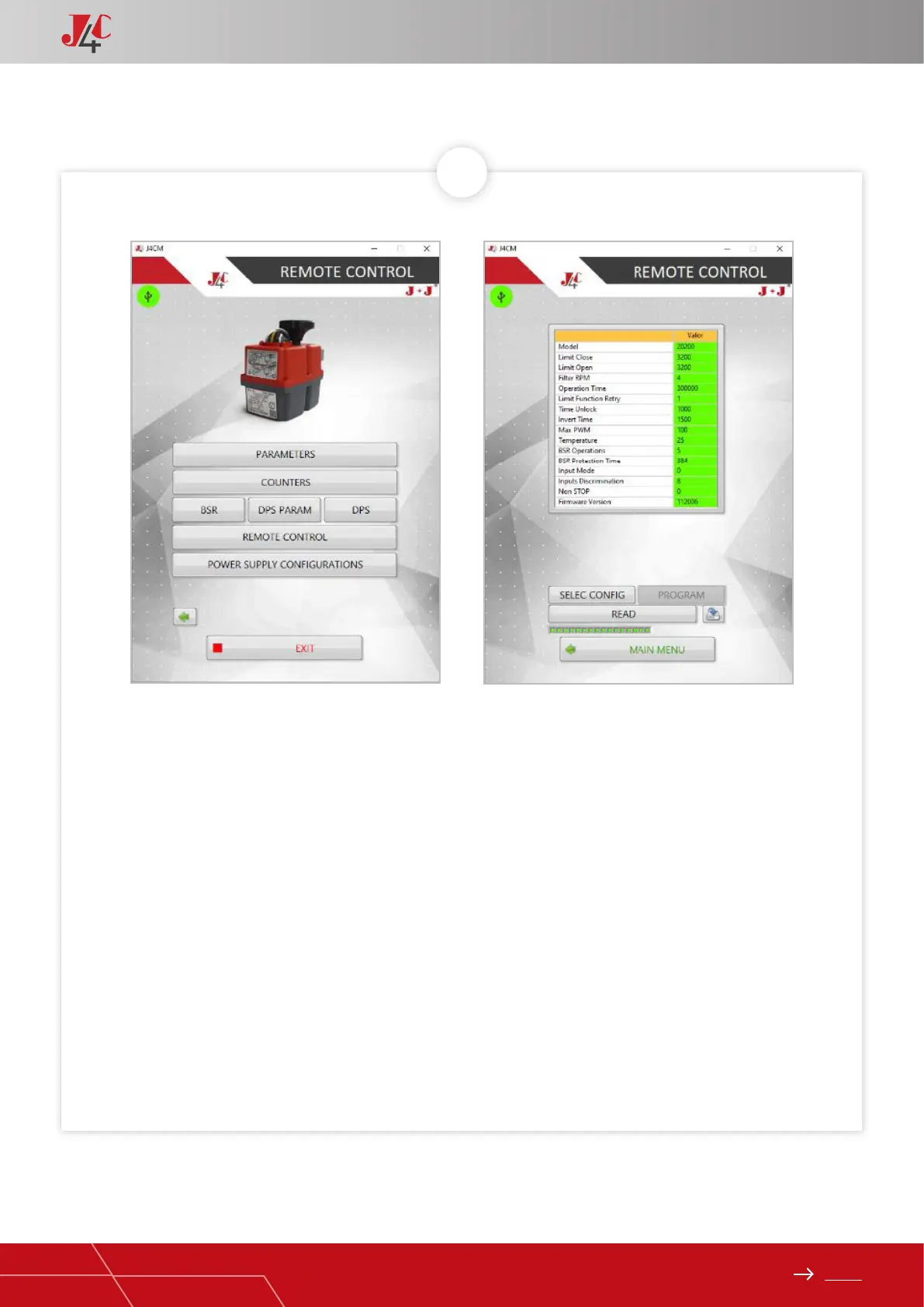

If you click on PARAMETERS, the following screen will open, showing the actuator parameters,
loaded during the mass production process.
Short explanation of each parameter:
• Model: A 5 to 6-digit code. The last 3 digit show us the actuator model.
• PCB Version: Is the software version of the PCB CONTROL part.
The rest of the parameter values, belong to a specic actuator model, in order to obtain the best
working features of each one.
In case we should change any of the parameters, in order to be able to work in a different way, a
new le would be sent to you. It should be copied on the PC, following the steps:
• Press SELEC CONFIG - select the le on the screen.
• Click on PROGRAM, the actuator would work with a new conguration.
To go back to the home menu, click on MAIN MENU.
