HANDBOOK / KIT INTERFACE
6
This conguration is possible only if our Positioner (DPS) has already been installed in the
actuator.

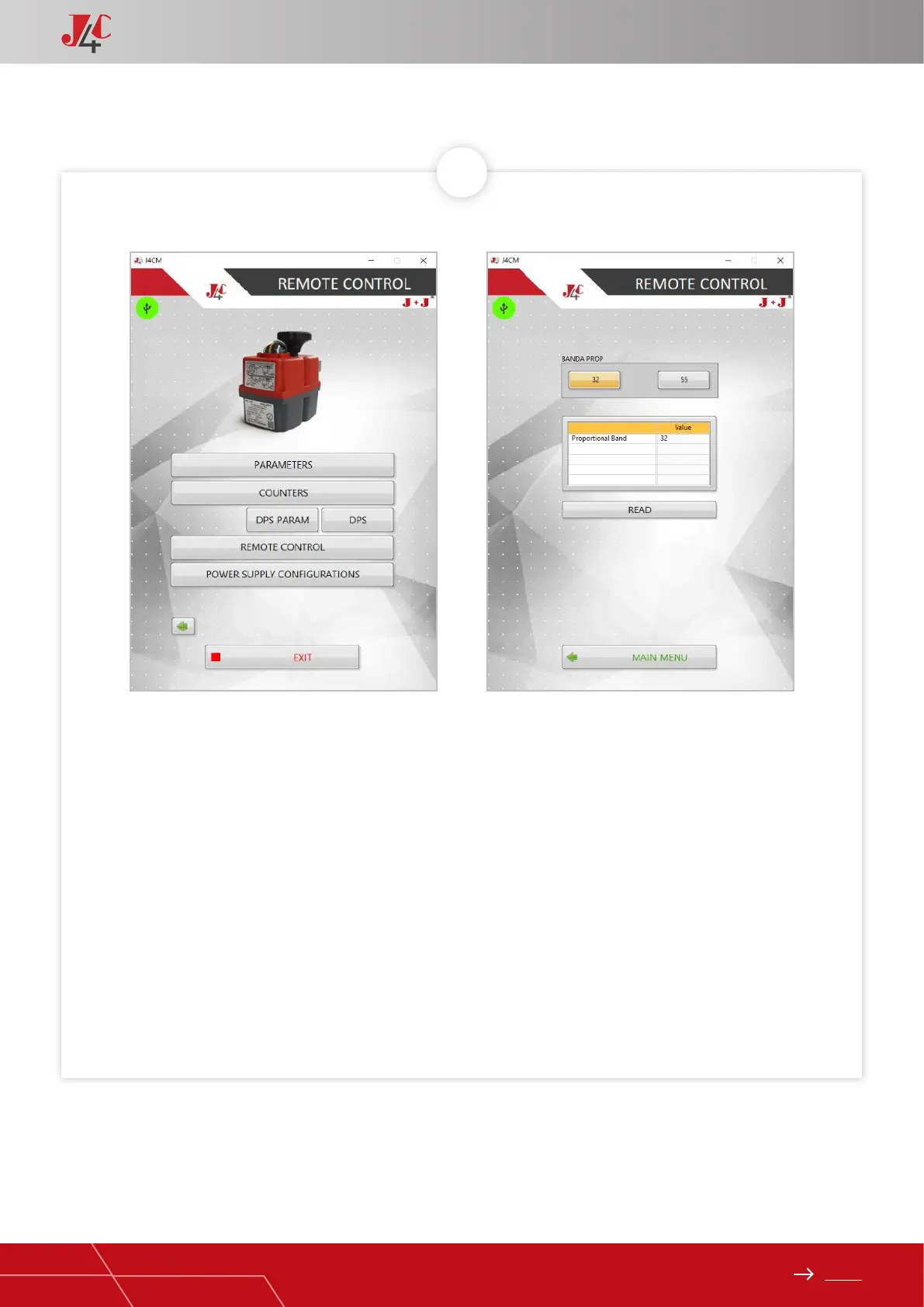

Click on DPS PARAM, the following screen will open and allow you to set up the Prop Band
parameter. The Prop Band parameter should be 32 in all our standard models.
Only in case of a S20 or B20 model with a 5 Sec./90º working time, the Prop Band value should
change into 55. Otherwise, the positioner (DPS) could not work in a proper way.
Click on READ, to see the recorded value.
Select 32 or 55 and record the selected value.
To go back to the HOME MENU, click on MAIN MENU.
