B.8 GYRO I/F

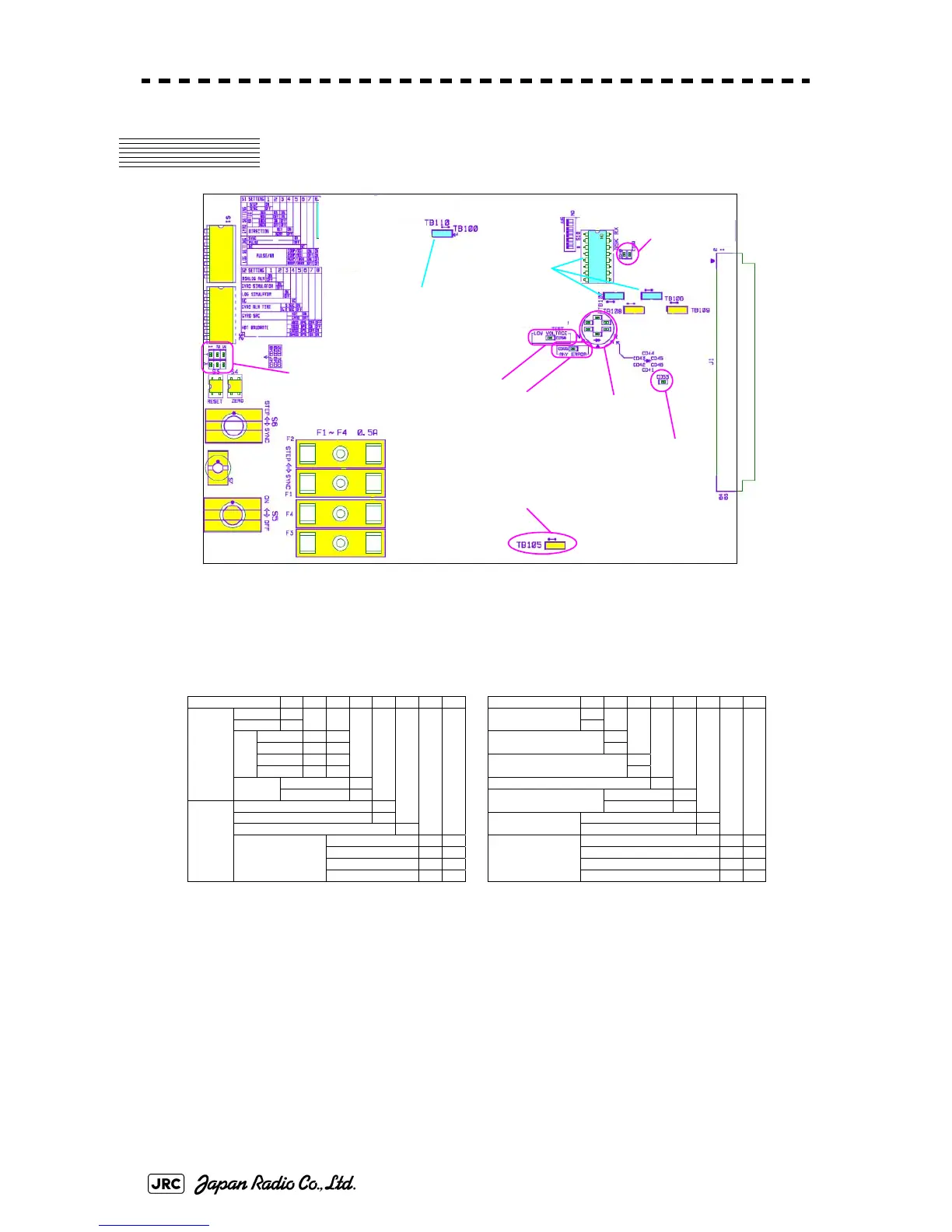

Fig B-38: Parts Location of CMJ-462E
TableB-1： Setting Table of CMJ-462E S1/S2
GYRO INPUT SIGNAL
INDICATOR LED
ジャイロ入力信号LED
GYRO SIGNAL PROCESS
INDICATOR LED
ジャイロ信号処理表示LED
LOG PULSE
INDICATOR LED
ログパルス表示LED
ERROR INDICATOR LED
エラー表示LED
GYRO LOW-VOLTAGE
ALERT LED
ジャイロ低電圧警告LED
SERIAL SIGNAL
INDICATOR LED
シリアル信号表示LED
OPEN
プラグ無し
KEEP DEFAULT
設定不要
LOW-VOLTAGE GYRO
SETTING
ジャイロ低電圧時に設定
S1 SETTING 1 2 3 4 5 6 7 8 S2 SETTING 1 2 3 4 5 6 7 8
STEP ON ON
SYNC OFF
BSHLOG ALM
OFF
36X ON ON ON
90X OFF ON
GYRO SIMULATOR
OFF
180X ON OFF ON
RATIO
360X OFF OFF
LOG SIMULATOR
OFF
逆／REV
ON N.C. (No Connection) OFF
ジャイロ信号
GYRO SETTING
回転方向
DIRECTION
正／NOR
OFF 5 SEC ON
シンクロ／SYNC
ON
GYRO ALM TIME
0.2 SEC OFF
パルス／PULSE
OFF HDT ( NMEA (HDT/THS) ) ON
未接続／NC
OFF
GYRO SRC
(Heading Sensor Source)
GYRO OFF
100P／30X
ON ON 4800 BPS OFF OFF
200P／90X
OFF ON 9600 BPS ON OFF
400P／180X
ON OFF 19200 BPS OFF ON
ログ信号
LOG SETTING
パルス
PULSE/NM
800P／360X
OFF OFF
NMEA BAUDRATE
38400 BPS ON ON
