1.
2.
3.
SELF CHECK
PANEL
TEST
ARPATEST
4.MAG
CURRENT
Eorr
5.PM
loFF
lon
Eon
6.
7.
ERROR
LOGGING
SYSTEM
INFO
titxTtt-t
o.
EXTT
Note:
All target
acquisitions by
ARPAfunctions will be
cancelled.
The
target acquisition cancelled when
PM is
ON will not be
recovered.
The
radar image
is
suppressed to make
the PM
image easy to
see,
So,
the test
menu should
be
always
closed
after
the
PM has
been
checked.
3€9

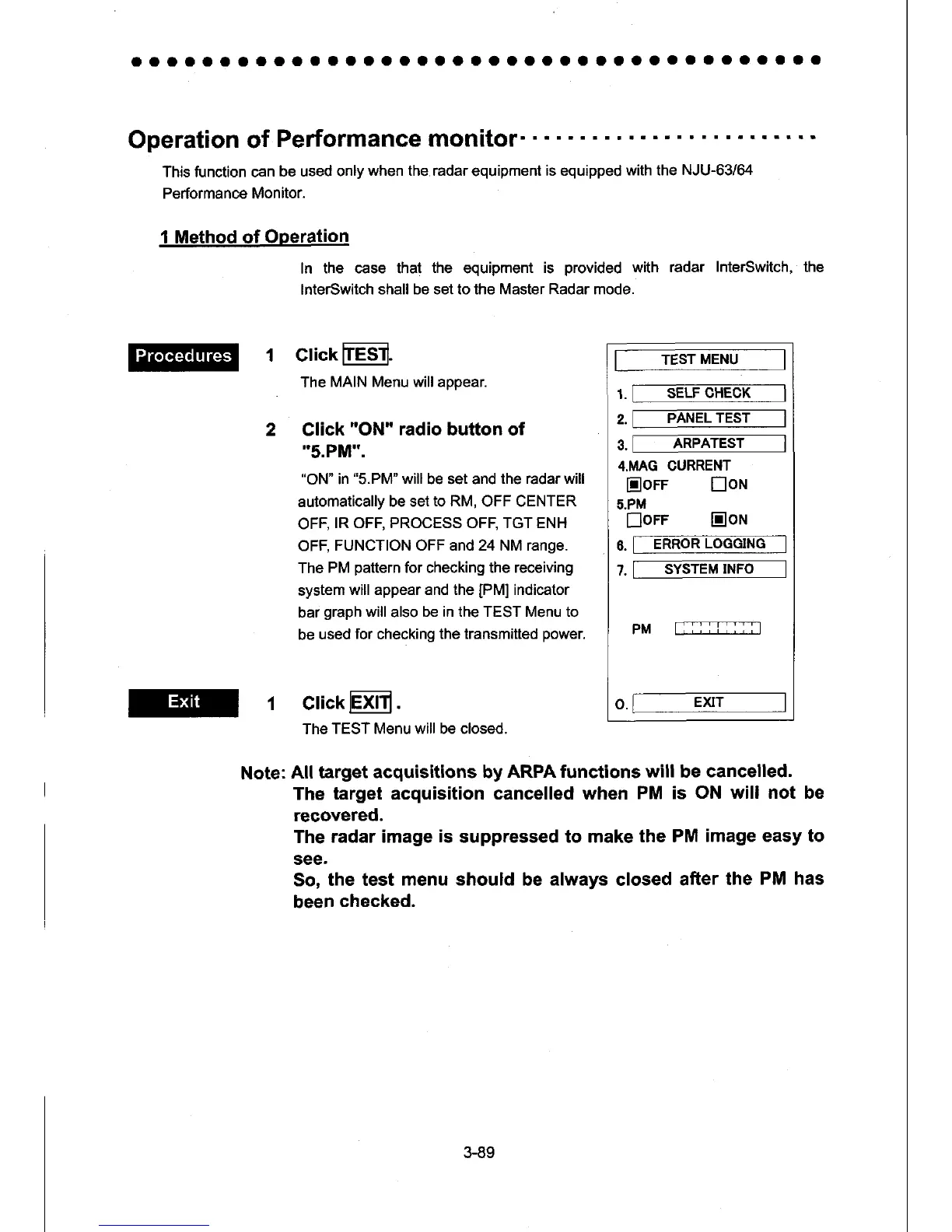

Operation of
Performance
monitor'
This function can
be used
only
when the radar
equipment
is equipped
with the
NJU-63/64
Performance Monitor.
ln
the case that
the
equipment
is
provided
with
Interswitch
shall be set to the Master Radar mode.
radar
InterSwitch,
the
ctick
FEfi.
The
MAIN Menu will appear.
Click
"ON" radio button of
"5.PM".
"ON"
in
"S.PM"
will
be set and
the radar will
automatically
be set
to RM,
OFF CENTER
OFF,
IR OFF, PROCESS OFF, TGT ENH
OFF,
FUNCTION OFF and 24 NM range.
The
PM
pattern
for checking the receiving
system
will appear and the
[PM]
indicator
bar
graph
will
also
be in the TEST Menu to
be
used
for
checking
the lransmitted
power.
cticklExtr.
The
TEST Menu will be closed.
To Next Page
