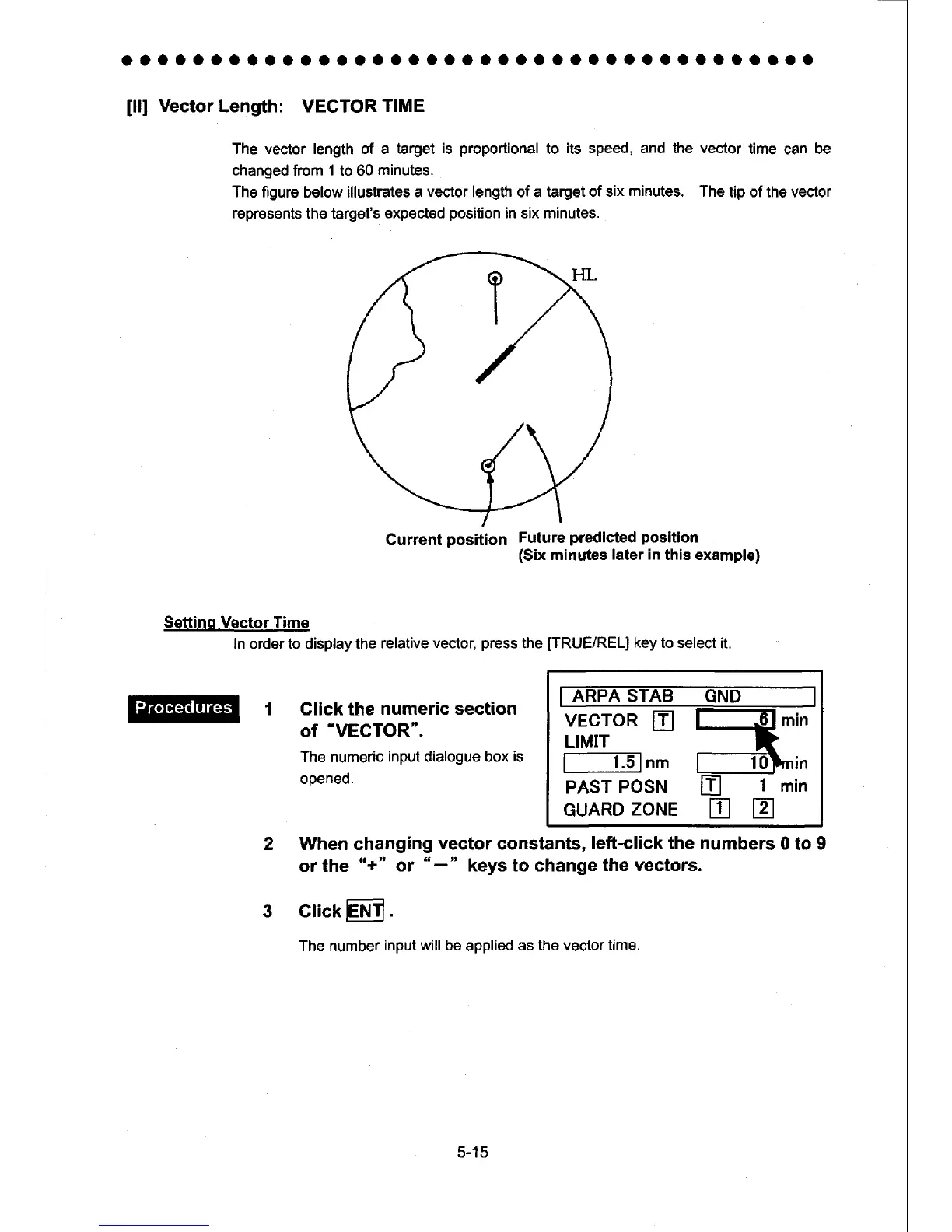

Vector
Length: VECTOR
TIME
The vector length of a target
is
proportional
to
its speed, and the vector
time
can
be
changed
from
1
to 60
minutes.
The
figure below illustrates
a
vector
length of a target
of six minutes. The
tip of the vector
represents
the target's
expected
position
in six minutes.
Current
position
Future
predicted
position
(Six
minutes
later in
this example)
Settinq
Vector
Time
In
order
to display the
relative
vector,
press
the
[TRUE/REL]
key
to select
it.
Click the
numeric section
of
"vEcroR".
The numeric
input dialogue box
is
oDened.
vEcroR
E
LIMIT
l-----T5lnm
PAST
POSN
GUARD
ZONE
1
a
mrn
When changing
vector
constants,
left-click the numbers
0
to
9
or the
"+"
or
"-"
keys to change
the vectors.
3 clickffi
The number
input will be
applied
as the vector
time.
5-15
