RIGHT BANK

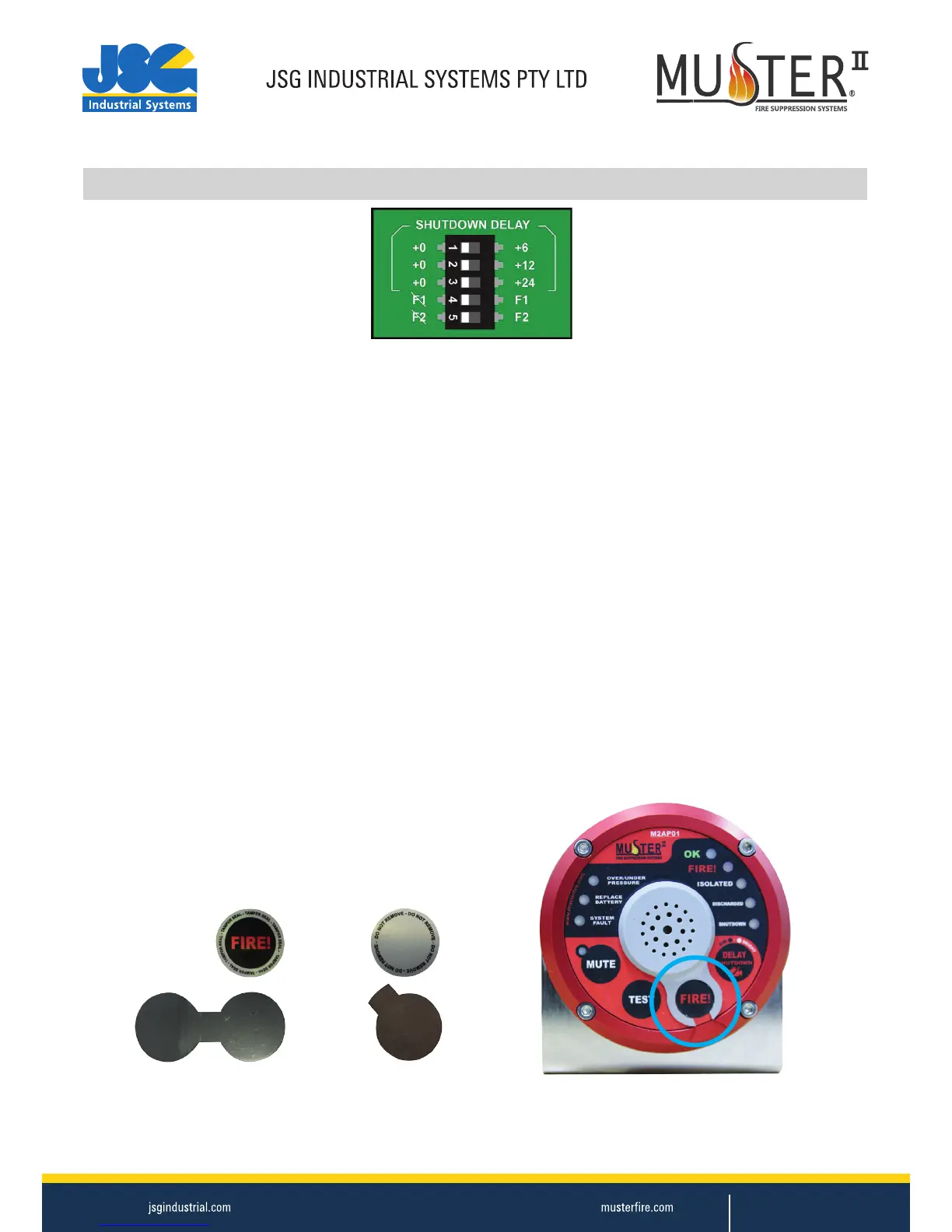

Shutdown Delay: DIP switches 1, 2 and 3 are used to select the delay between detection of a fire and the activation
of the Shutdown Circuit. The times indicated on the individual switches are added together giving a total of 8 possible
settings from 0 to 36 seconds in 6 second steps.
Note: In order to accommodate a request for a 20 second option the 42 second setting has been internally programmed
to 20 seconds.
Extended Functions: DIP switches 4 and 5 are reserved for future functions or custom applications and should be left
disabled – consult your dealer to see what functions are available.
TAMPER EVIDENT SEALS & LOP BLANKING SEALS
There are two seal kits supplied with each Alarm Panel. An LOP blanking seal and a FIRE tamper seal.
The blanking seal and disk is to be used on an LOP installation only. In an LOP system the Alarm Panel cannot activate the
system and so the manual FIRE! Button must be blanked off to avoid confusion. Place the disk over the FIRE button and
secure with the blanking seal.
In MusterWire LHD installations the FIRE tamper seal is used to discourage tampering with the manual activation button.
Place the metal toggle over the FIRE button and secure with the FIRE tamper seal. Any attempt to remove the seal causes
it to de-laminate as evidence that it has been tampered with. In high traffic areas insert toggle facing downwards to avoid
it being accidentally dislodged.
MusterWire Tag LOP Tag
Tamper evident seal location
