Shower Screen

This document provides installation and safety instructions for the EKVIP shower screen, model 024302. It is crucial to read and understand these instructions thoroughly before installation and use to ensure safety and proper function.

Function Description

The EKVIP shower screen is designed to create a partition in a bathroom, typically for a shower area, preventing water from splashing outside the designated space. It features a 6 mm thick toughened safety glass panel and an aluminium profile for structural support. The design allows for an adjustable length of the support bar (70–110 cm) and acts as an attachment for the glass wall, providing flexibility in installation to fit various bathroom layouts. The screen is intended for domestic use and should not be modified or used for purposes other than its intended function.

Important Technical Specifications

Width: 90 cm
Depth: 70–110 cm (adjustable)
Height: 200 cm
Weight: 28 kg
Glass Thickness: 6 mm toughened safety glass
Profile Material: Aluminium
Adjustable Length of Support Bar: 70–110 cm
Adjustment Margin in Wall Profile: 10 mm
Drill Bit Diameter for Wall Plugs: Ø6 mm
Drill Bit Diameter for Mounting Holes: Ø5 mm (for the short telescopic parts)
Screw Dimensions for Wall Profile: 4 x 35 mm

Usage Features

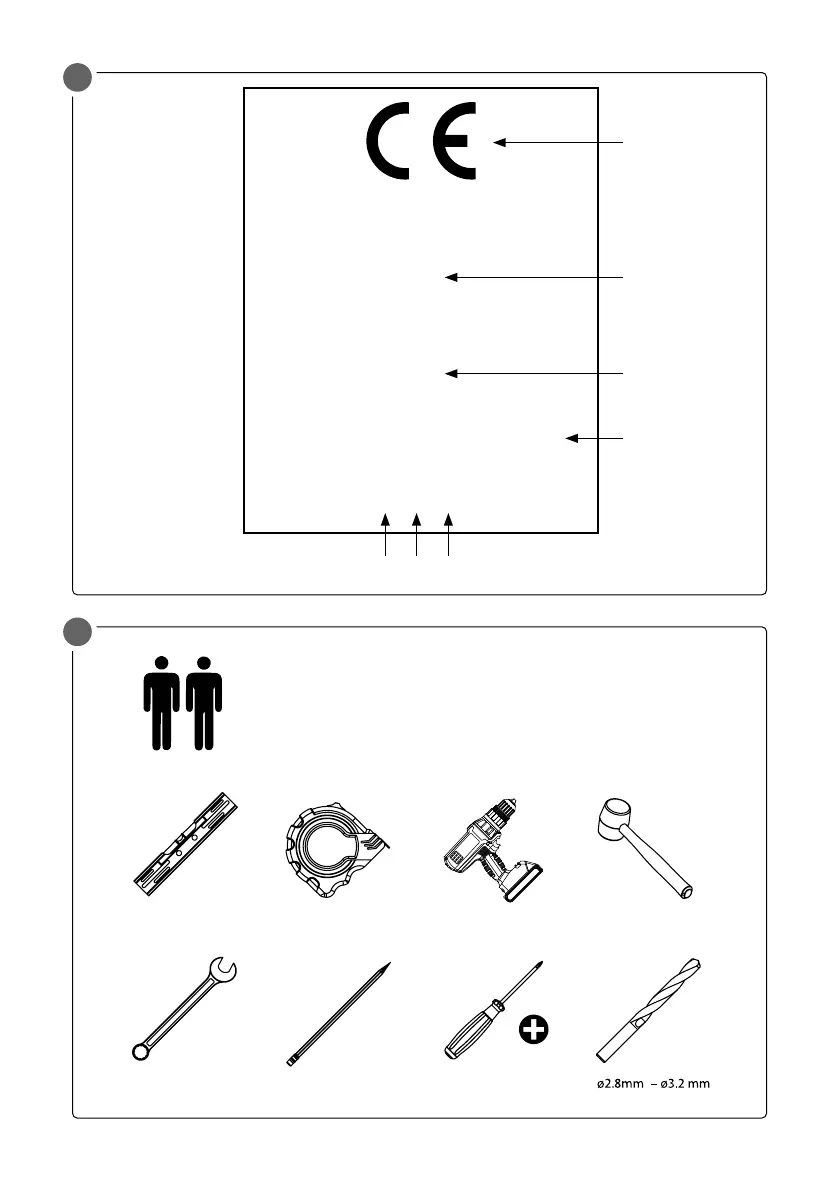

The shower screen is designed for straightforward installation, though it requires careful attention to detail and adherence to the provided instructions. Key usage features include:

Adjustable Support Bar: The telescopic support bar allows for flexible installation in various shower sizes, with an adjustable length ranging from 70 to 110 cm. This feature helps to accommodate different bathroom dimensions and ensures a secure fit.
Toughened Safety Glass: The 6 mm thick toughened safety glass is designed to be robust and shatter-resistant. In the event of breakage, it will fragment into small, blunt pieces, reducing the risk of injury compared to standard glass.
Aluminium Profiles: The use of aluminium profiles provides a lightweight yet sturdy frame for the glass panel, ensuring durability and resistance to corrosion in a humid bathroom environment.
Wall Mounting: The screen is securely mounted to the wall using screws and wall plugs, ensuring stability. The wall profile allows for a 10 mm adjustment margin, which can be useful for minor corrections during installation.
Sealing: The installation process involves applying silicone sealant to the wall profile and the joint between the product and the underlayment. This ensures a watertight seal, preventing leaks and protecting the bathroom structure from water damage.
Protective Film: A protective film is applied to the glass during manufacturing to prevent scratches and damage during transport and installation. This film should be removed after installation.
Horizontal Alignment: The instructions emphasize the importance of positioning the support bar and the glass panel horizontally to ensure proper function and aesthetic appeal.

Maintenance Features

Proper maintenance is essential to ensure the longevity and continued safe operation of the shower screen. While specific cleaning instructions are not detailed, general maintenance practices for glass and aluminium products in a bathroom environment apply:

Regular Cleaning: The glass and aluminium profiles should be cleaned regularly with appropriate non-abrasive cleaning agents suitable for bathroom surfaces. Avoid harsh chemicals or abrasive tools that could scratch the glass or damage the aluminium finish.
Check for Leaks: Periodically inspect the silicone seals for any signs of wear, cracking, or detachment. Reapply sealant if necessary to maintain a watertight barrier.
Inspect Fastenings: Regularly check all screws and fastenings to ensure they remain tight. Loose fastenings can compromise the stability of the shower screen and should be tightened immediately.
Handle with Care: Although the glass is toughened, it is still susceptible to damage from hard impacts or sharp objects. Avoid striking the glass with force, especially on the edges, as this can lead to breakage.
Ventilation: Ensure adequate ventilation in the bathroom to minimize the buildup of moisture, which can contribute to mold growth and potentially affect the integrity of the seals over time.
Avoid Climbing: Do not hang or climb on the walls or the shower screen, as this can cause structural damage or lead to personal injury.
Professional Assistance: If any significant damage or malfunction occurs, or if you are unsure about any maintenance procedures, it is advisable to seek professional assistance.

The manufacturer reserves the right to make changes to the product and documentation without prior notice. Always refer to the latest version of the operating instructions available on the Jula website for the most up-to-date information.
