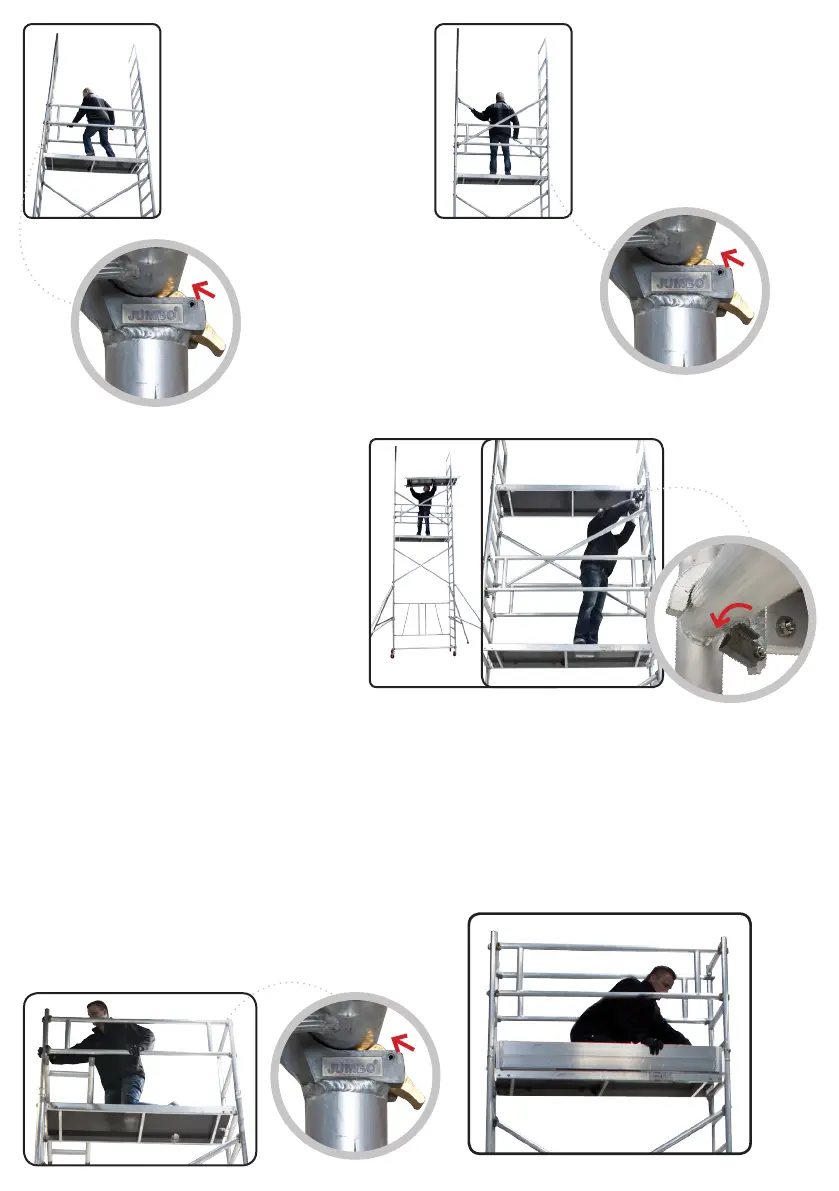

9.4 Mounting the second plat-
form
9.4.1 Mount the platform on the
top rung on the 7 rungs frame. Re-
member to secure with the storm
locks.
9.5 Mounting the guardrail
9.5.1 Climb up onto the platform and
mount the double guardrail - one on
each side. They should be placed on
the vertical tube on guardrail frame -
inside and out. Ensure that the claws
lockes tightly around the tube.
9.3.2 Now mount the
next double guardrail.
One on each side -
mounted inside on the
vertical tube. The bottom
claws on each guardrail
must be placed right abo-
ve the 2. rung over the
platform.
9.3.3 Mount the diago-
nals. Remember that the
diagonals must be placed
on each side in a cross!
Ensure that the claws
are locked correctly.
9.5.2 Now mount the toeboard on
the top platform. This should simply
be folded out and laid in place around
the platform.
