assembly instructions

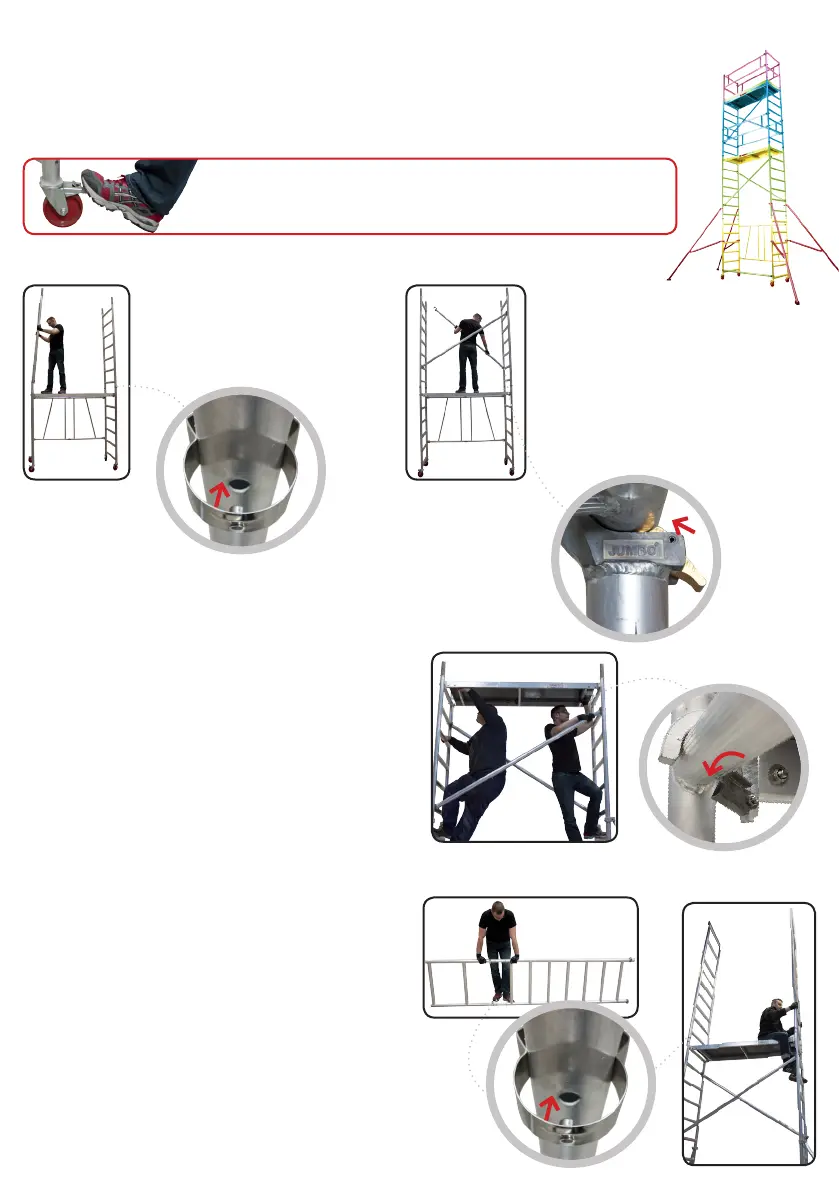

9. 5,57 M TOWER W/OUTRIGGERS
Follow instructions from point 6. BASE MODUL, until point 8.1.1
and continue with the following.
9.1 Mounting the rst extension
9.1.1 Mount the two 7
rungs frames on each
side. Remember to en-
sure with the clips.
9.3 Mounting the second extension
9.3.1 Start by mounting the guardrail
frame on top of the two 7 rungs frames.
Remember to ensure with the clips. Then
mount the assembled frames. Remem-
ber to ensure with the clips.
9.2 Mounting the rst platform (middle section)
9.2.1 Place the rst platform on the top
rung of the extension. It is recommen-
ded that two persons mount the platform
(otherwise a ladder can be used). Each
person grabs one end of the platform and
with a slight angle on the platform they
step up inside the scaffold and place the
platform. Remember to secure the plat-
form with storm locks!
NOTE: Always lock all 4 castors before entering the scaf-
fold! The castors are locked by pressing the brake down.
9.1.2 Then mount diago-
nals. Remember that they
must not be placed on
the same side or parallel
- install diagonals on each
side in an opposite positi-
on. Ensure that the claws
are locked correctly!
