8.3 Mounting the outriggers

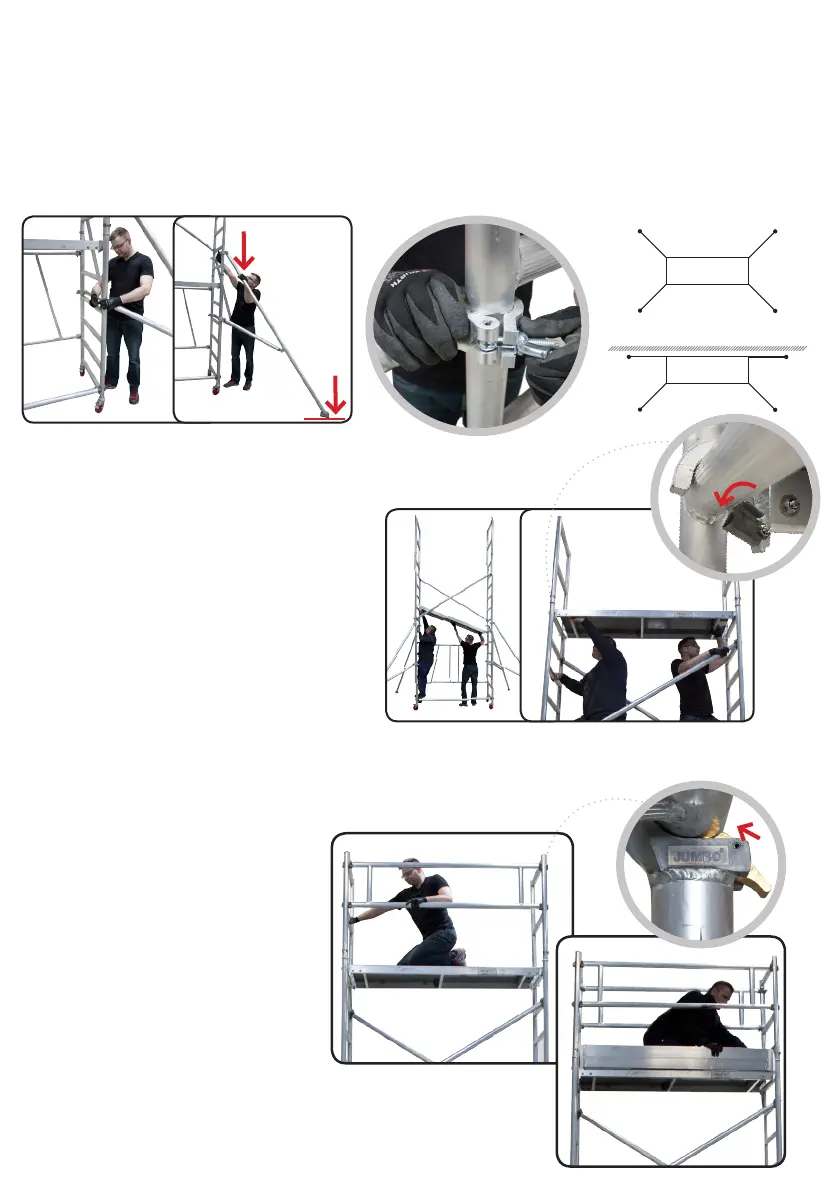

8.3.1 To mount outriggers follow the diagram 8.3.1a - 8.3.1b. Place the couplers on
the outriggers prop around the vertical tube on the frame right above the 4th. rung.
Fastend the couplers. Place the top couplers on the outrigger around the frame´s
vertical tube and fasten loosely. Push the outrigger down with one hand until the out-
riggers foot is resting securely on the ground. Fastend the couplers.
8.4 Mounting the platform
8.4.1 We recommend two people
for the mounting of the platform
(otherwise a ladder can be used).
Each person grabs one end of the
platform and with a slight angle on
the platform they step up inside the
scaffold and mount the platform on
top of the 7-rungs frame - just below
the guardrail frame. Remember
to secure the platform with storm
locks! .
8.5 Mounting the guardrail
8.5.1 Climb up onto the
platform and install a double
guardrail on each side. They
should be placed on the verti-
cal tube of the guardrail frame
- inside and out. Remember to
make sure that the claws are
securely attached around the
tube and lock correctly.
8.5.2 Now mount the toe-
board. This should simply be
folded out and laid in place
around the platform.
8.3.1a: Freestanding
8.3.1b: Against a wall
