assembly instructions
NOTE: Always lock all 4 castors before entering the scaffold!
The castors are locked by pressing the brake down.
PACK 1 PACK 2 PACK 3 PACK 5

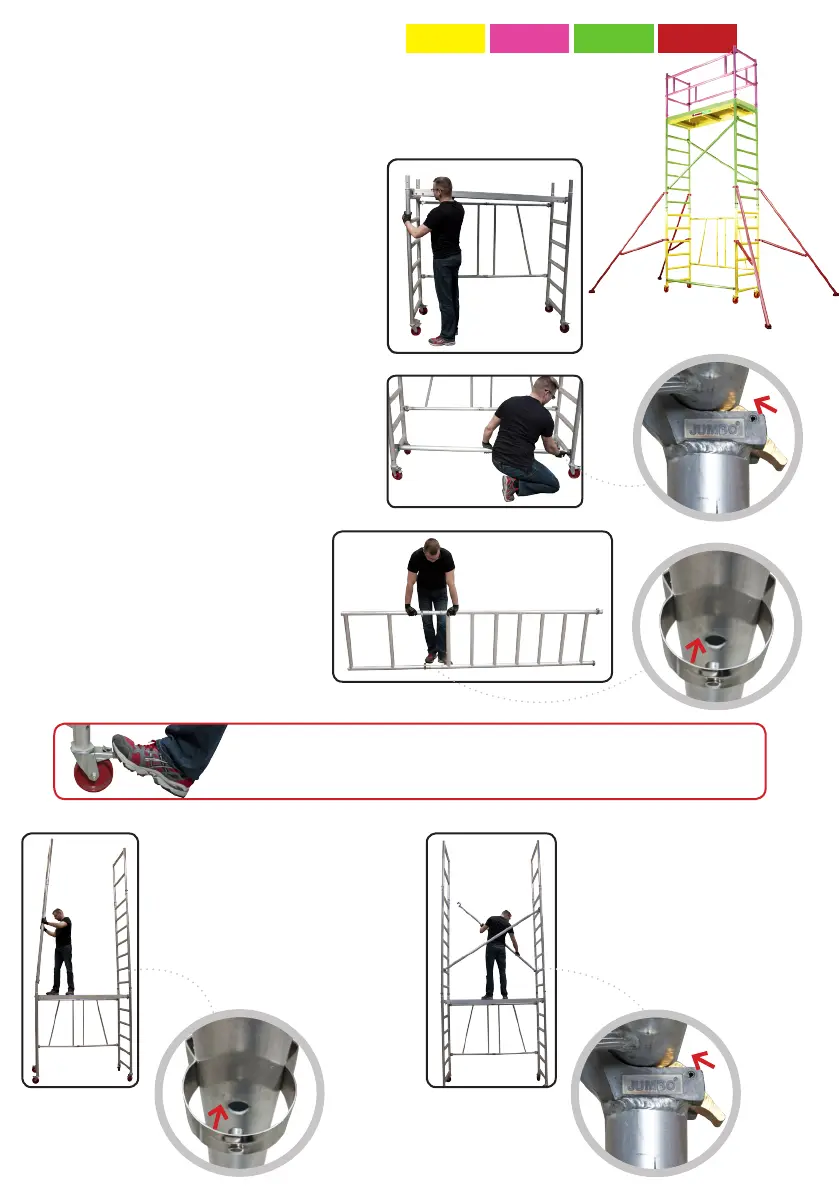

8. 3,61 M TOWER W/OUTRIGGERS
Follow instructions from point 6. BASE MODUL, until point 6.2.2
and continue with the following.
8.1 Mounting the base section
8.1.1 Ensure that the platform is lo-
cated on the highest rung & mount a
horizontal brace on the vertical tube
- right over the bottom rung.
The horizontal brace shall sit on the
opposite side of the xed folding part
and must be mounted from the in-
side onto the vertical tube - just abo-
ve the bottom rung. Ensure that the
claws are locked correctly.
8.2 Mounting the extension
8.2.1 Start mounting a guard-
rail frame on the top of each
7 rungs frame. Remember to
ensure each frame with the
clips!
8.2.2 Mount the assem-
led frames on top of the
base section. Remember
to ensure the frames
with the clips!
8.2.3 When both sides
are mounted, the diago-
nals can be placed on
both sides. Remember
to place them opposite
ech other. Ensure that
the claws are locked cor-
rectly.
