assembly instructions
PACK 1

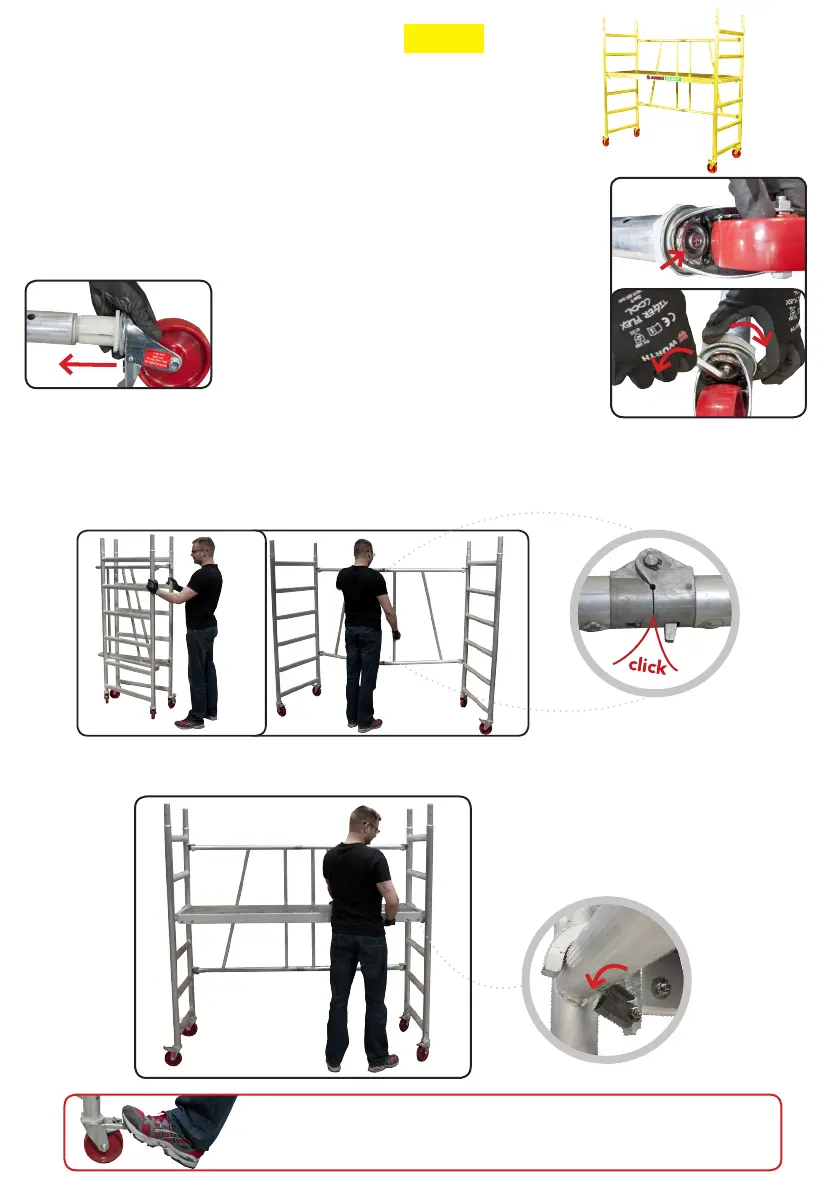

6. BASE MODULE
Mount the castors before mounting the scaffold!
6.1 Mounting the castors
6.2.2 Then place the platform at the required height. Remember to lock the storm
locks under the platform.
NOTE: Always lock all 4 castors before entering the scaffold!
The castors are locked by pressing the brake down.
6.1.1 Insert the
white plastic tting
into the vertical tube
on the scaffolding
6.1.2 Behind the castor there is a
bolt. Use the enclosed Allen key to
hold back the bolt and turn the white
plastic piece until you can feel the
castor fasten in the tube. Tighten
with allen key.
Repeat for all 4 castors.
6.2 Erection
6.2.1 Erect the scaffold so it stands on its castors and pull the frames from each
other so the scaffold unfolds. Pull the folding section all the way out until the snap
lock locks.
