ASSEMBLY INSTRUCTIONS
The washer (DD) should be
located in between the left
and right leg section before
inserting the bolt.

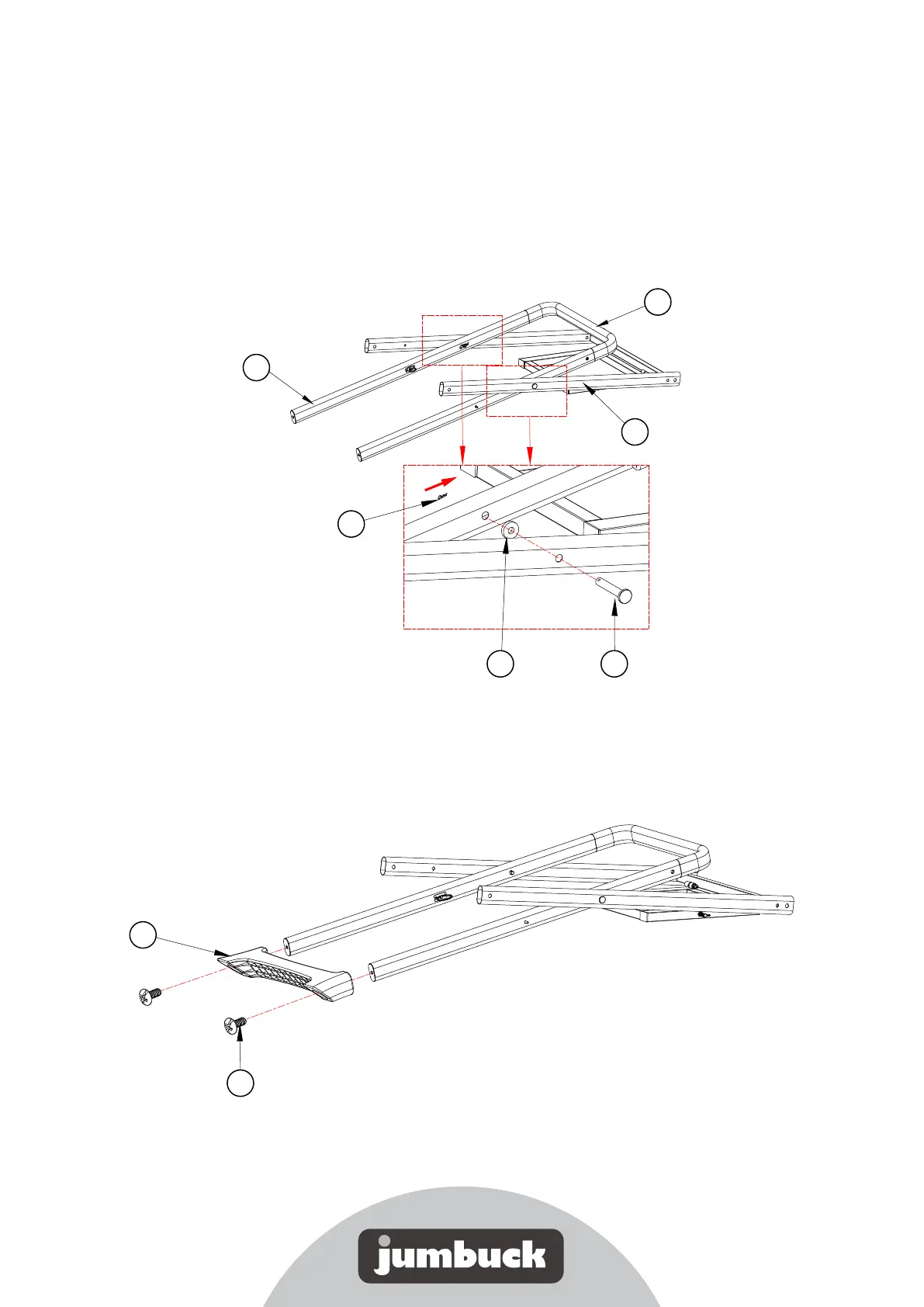

Step 3
Join the left leg assembly (C&J) together with the right leg assembly (I) by aligning
the middle hole on part I with the middle hole on part C as shown below. Secure
using the washer (DD) and long bolt (CC).
Insert an R pin through the hole on the end of each bolt to lock into place.
Step 4
Insert the bottom of the leg assembly (C&J) into the leg base (D). Use a phillips head
screwdriver to secure with 2 x M6x12 screws (AA).
I
EE x2
DD x2 CC x2
J
C
D
AA x2
To Next Page
