JUMO eTRON M - 2 Mounting

2 Mounting
6
2 Mounting

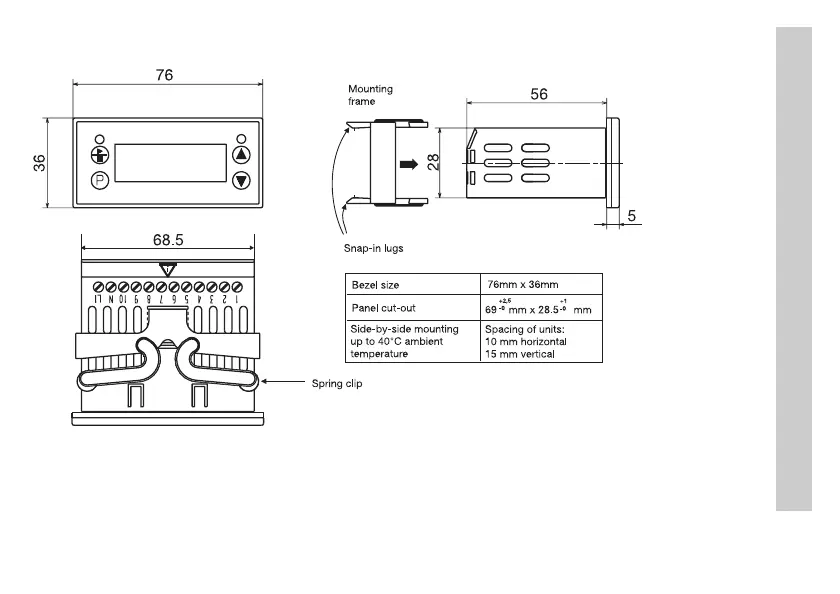

h Pull off mounting frame from instrument.
h Insert the instrument from the front into the panel cut-out and make sure that the bezel seal is seated correctly.
h From the back, push mounting frame onto the housing
until the spring clips are under tension and the snap-in lugs have engaged at top and bottom.
