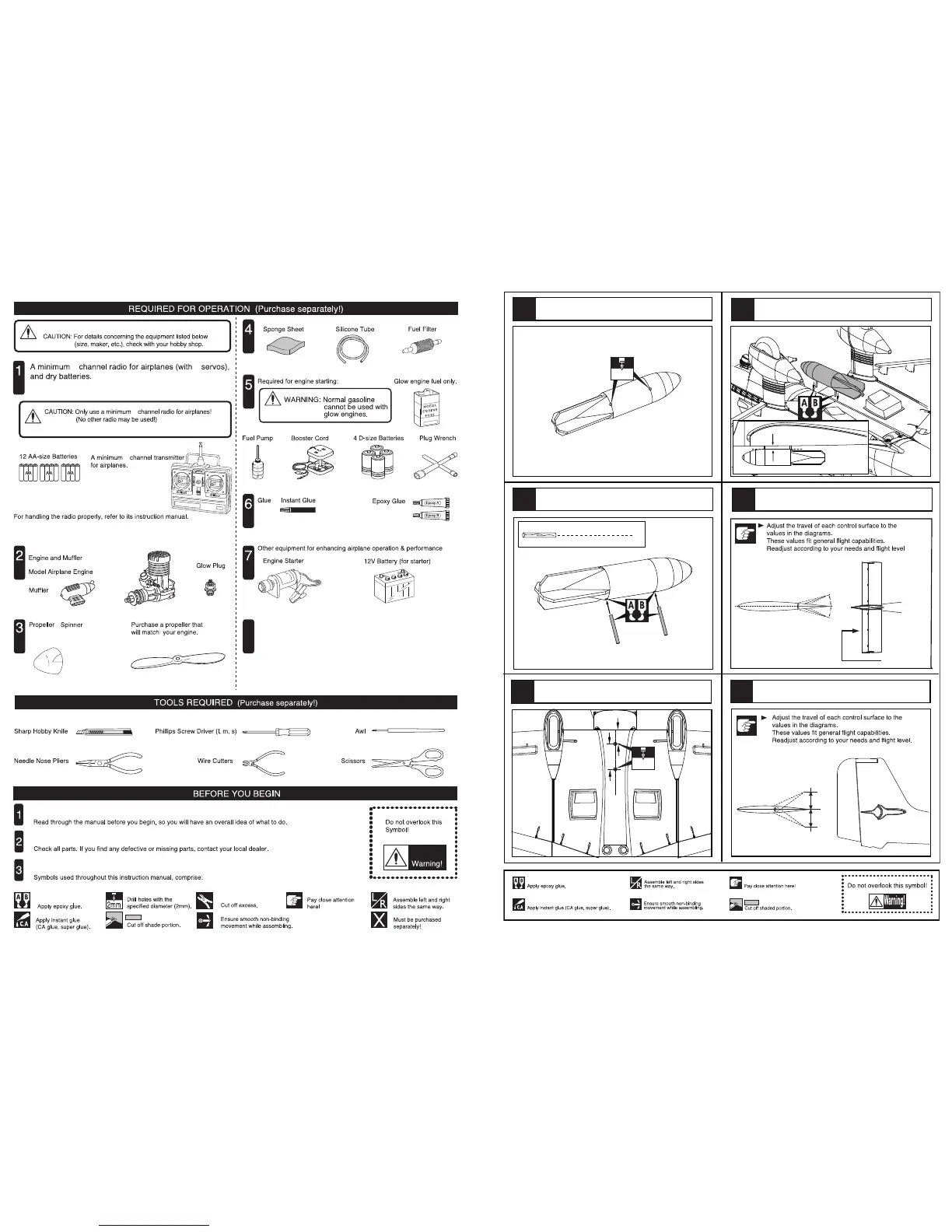

Junkers JU-87D Stuka - Preparation and Tools; Required Equipment and Tools; Before You Begin; Assembly - Bombs and Control Surfaces

Top view
20mm
20mm
RUDDER
Side View
Top view
Position for
right diagram.
ELEVATOR
Side View
15mm
15mm
5mm
2
Plastic dube (5x30mm)
50mm
90mm
5mm
20mm
Adjustment.
Adjustment.
Drill holes to appropriate in the bomb.
Epoxy plastic tube into the holes.
Drill holes to relevant pesition in the centet wing.
Epoxy the bomb to the bottom wing.
68
67
13
71
69
72
70
4-cycle .120
15″X74.5 in Spinner
6
86
6
6 channel radio for aiplane is highly recommended for this model.
9
Optional parts: rubber wheel with metal hub.
